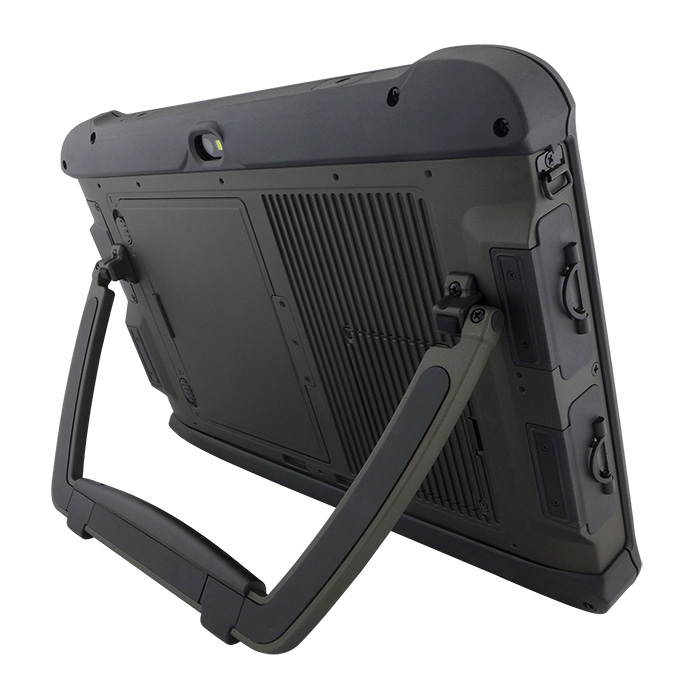

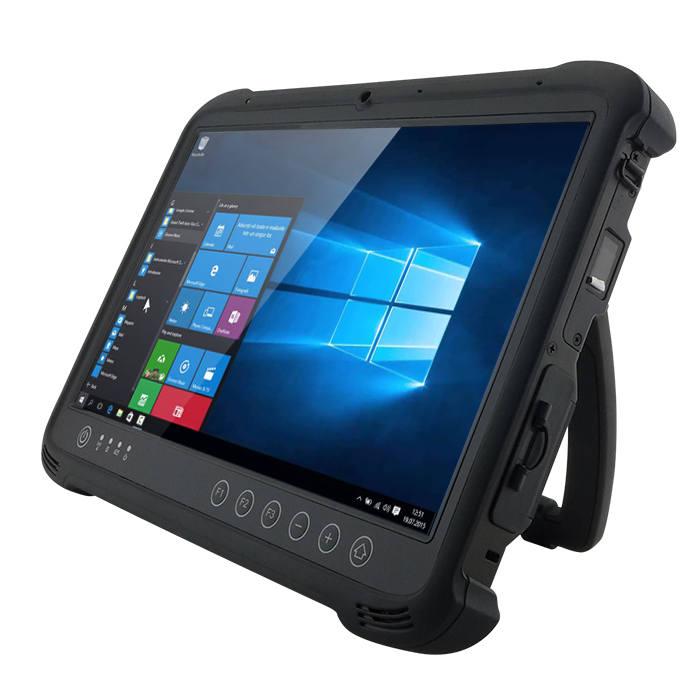

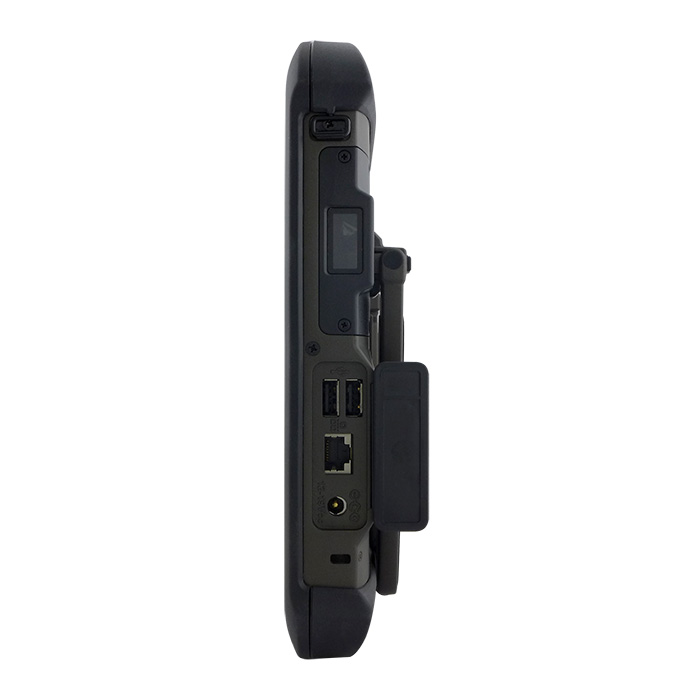

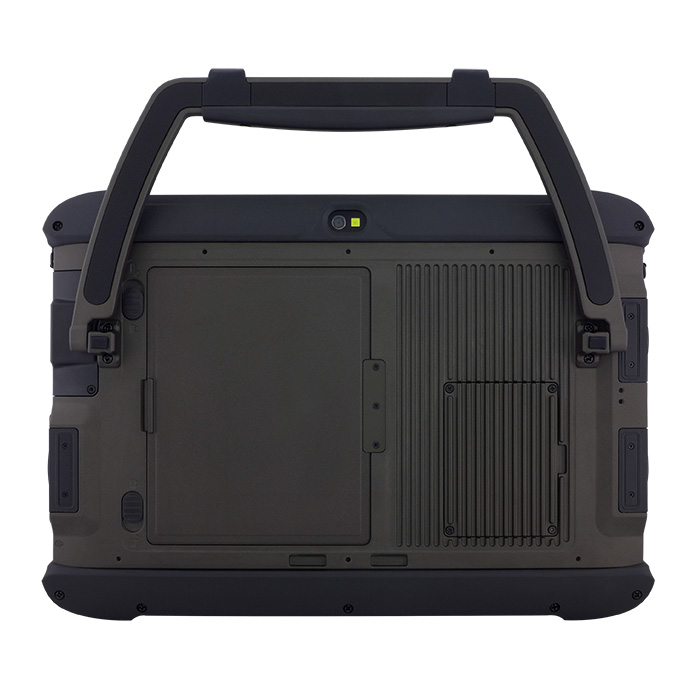

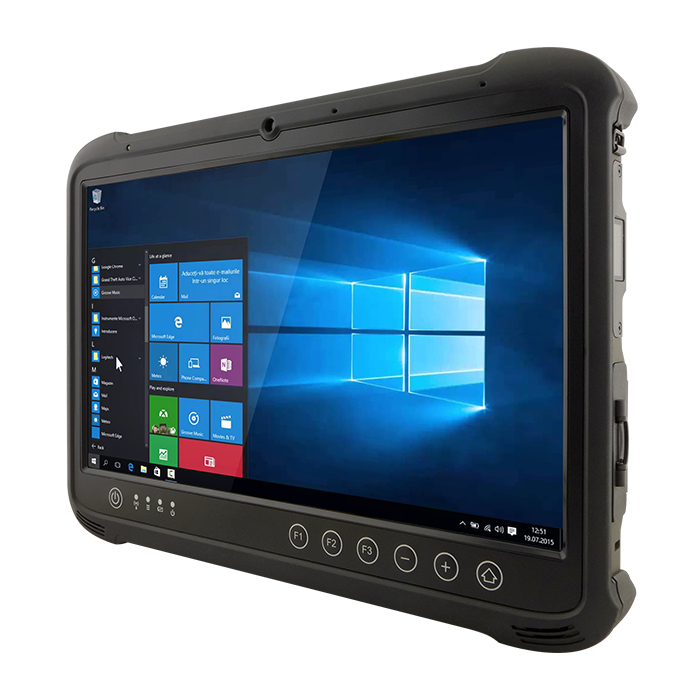

M133WK

High Performance with Low Power Consumption
Powered by Intel’s processor, the M133 series ultra-rugged tablet offers high performance and low power consumption for some of the most demanding professional-grade applications.

Brilliant Sunlight Readable Display
The 13.3″ TFT-LCD panel with the 1920 x 1080 resolution with its sunlight-readable transflective solution, the M133 series ultra-rugged tablet, offers a premium viewing experience both indoors and outdoors.

Capacitive Multi-Touch with Switchable Modes
The M133 series ultra-rugged tablet uses projected capacitive multi-touch, the effortless touch technology the world has come to love and demand due to the effortless tapping, panning, zooming, and pinching the technology allows. Support use with gloves and in the rain, as well as more precise stylus operation.

Ultra Rugged Design Built to Survive
The M133 series ultra-rugged tablet is built to survive temperature changes, drops, shock, and vibration. Tailored for industrial-grade applications and packed in ultra-rugged magnesium-aluminum alloy housing passed the MIL-STD-810G test withstand the rigors of outdoor environments – water, dust, weather changes, strong.

Ergonomic Design
Despite the ruggedness, the M133 Series ultra-rugged tablet is handy and easy to use with an easy-to-carry ergonomic handle and an optional fold-up kickstand so your worker can transport the device more easily or set it up when watching an instruction or checking operation procedures.

Features:

• Intel® Core™ i5-8265U Whiskey Lake processor
• 13.3″ 1920 x 1080 IPS wide viewing angle LED Panel
• Magnesium alloy housing with all-around elastomeric rubber
• Built-in kickstand usable as carrying handle(indefinitely adjustable)
• Cold swap Battery Pack
• IP65 waterproof and dustproof
• Optical bonding technology
• TPM 2.0

Display:

Size	13.3 inches
Resolution	1920×1080
Panel Brightness	500 nits
Contrast Ratio	1000:1
View Angles	89,89,89,89
Bonding	Optical Bonding for Sunlight Viewability

System Specification:

Processor	Intel® CoreTM i5-8265U, 1.60 GHz (up to 3.90 GHz)
Memory	4GB SODIMM DDR4-2400 8GB SODIMM DDR4-2400 (Optional) 16GB SODIMM DDR4-2400 (Optional)
Storage	Storage 1: 1 x 128GB M.2 SSD Storage 1: Up to 512GB M.2 SSD (Optional) Storage 2: Up to 512GB M.2 SSD (Optional)
Ethernet controller	1 x RJ45-10/100/1000 Mbps LAN
Security	Trusted Platform Module (TPM) 2.0 Kensington Lock
Operating System	Windows 10 IoT Enterprise
WLAN	802.11 a/b/g/n/ac
BT	BT Support
WWAN	4G LTE (Optional)
GNSS	GPS/GLONASS (Optional)
Sensors	Light sensor/ g-sensor / Gyro / E-compass

Mechanical:

Dimension	338.2 x 240 x 30 mm (13.3 x 9.4 x 1.18 inches)
Weight	2.2kg (w/ kickstand)
Cooling System	Fanless thermal design

IO Ports:

USB Port	4 x USB 3.0 Type A, 1 x USB 3.1 Type C
LAN	1 x RJ45-10/100/1000 Mbps LAN
Audio	1 x built-in Digital Mic with Noise Cancellation 2 x 1 watt speaker
SD Card Slot	1 x SDXC Slot
Indicator	4x LED Indicator for Power, Battery, SSD, RF status
Docking Connector	1 x Docking connector

Environment:

Operating Humidity	30% to 80% RH, non-condensing
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Shock	MIL-STD-810G Method 516.6 Procedure I
Vibration	MIL-STD-810G Method 514.6 Procedure I
Drop	MIL-STD-810G Method 516.6, 4 ft
IP rating	IP65 certified, dustproof and waterproof

Certification:

Certification

CE, FCC

Security Function:

Kensington Lock

Kensington Lock Support

Control:

Button

1 x Power, 1 x menu, 3 x Programmable Function Keys

Power:

Battery	15.4V, typ. 5900 mAh Li-Polymer Battery (4S1P)
Battery Operating Time	More than 10 hours (BAPCo Tabl etMark v3)
Power Rating	19V DC
Adapter	100-240V, 50-60Hz / 19V DC

Accessory:

Accessory	Adapter and Power Cord Standard Battery Stylus Stand with Integrated Handle
Optional Accessory	VESA Mounting Kit VESA Mounting Kit 2 RAM Mounting Kit Vehicle Charger
