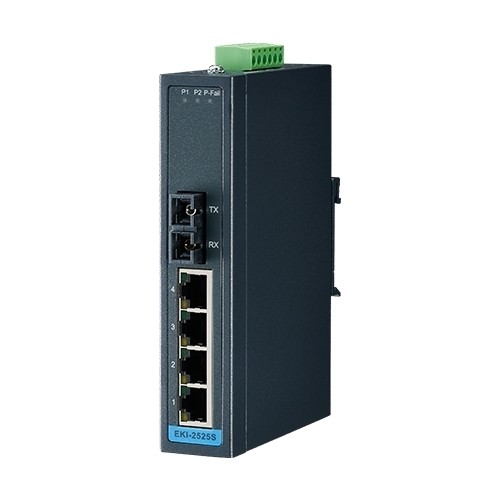

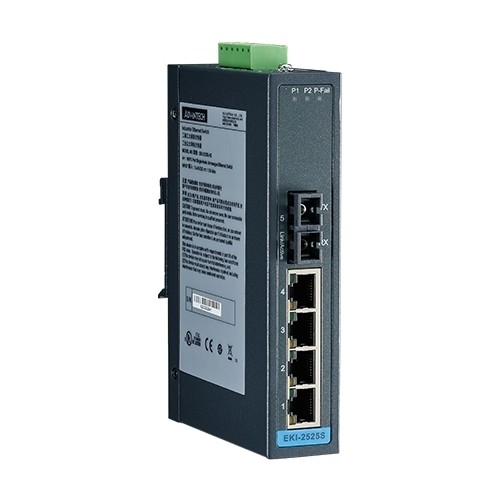

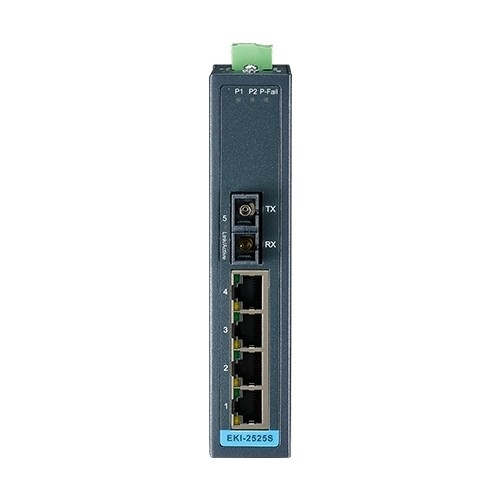

• 4+1 100FX Port Multi-Mode Unmanaged Industrial Ethernet Switch with ST
• Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector
• Provides 1 x 100 Mbps Multi-mode SC type fiber optic port
• Supports full/half duplex flow control
• Supports MDI/MDI-X auto crossover
• Provides broadcast storm protection
• Provides redundant 12 ~ 48 VDC power input
• Provides flexible mounting: DIN-rail, panel mounting
EKI-2525M is industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M has four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M provides one or two multi-mode fiber-optic port. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M has industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M includes a switch controller that can automatically sense transmission speeds. The RJ-45 interface can also be auto-detected,, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.
