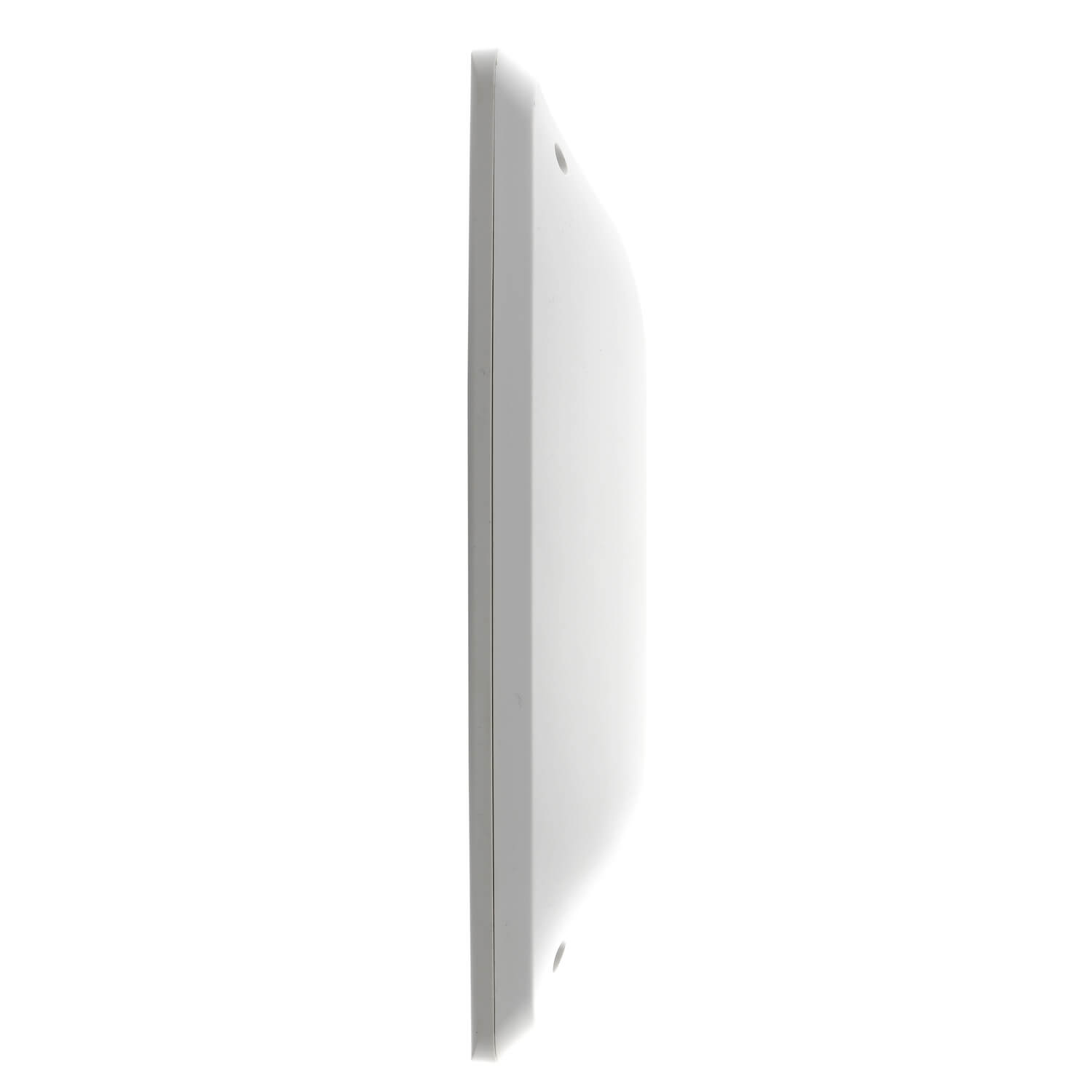

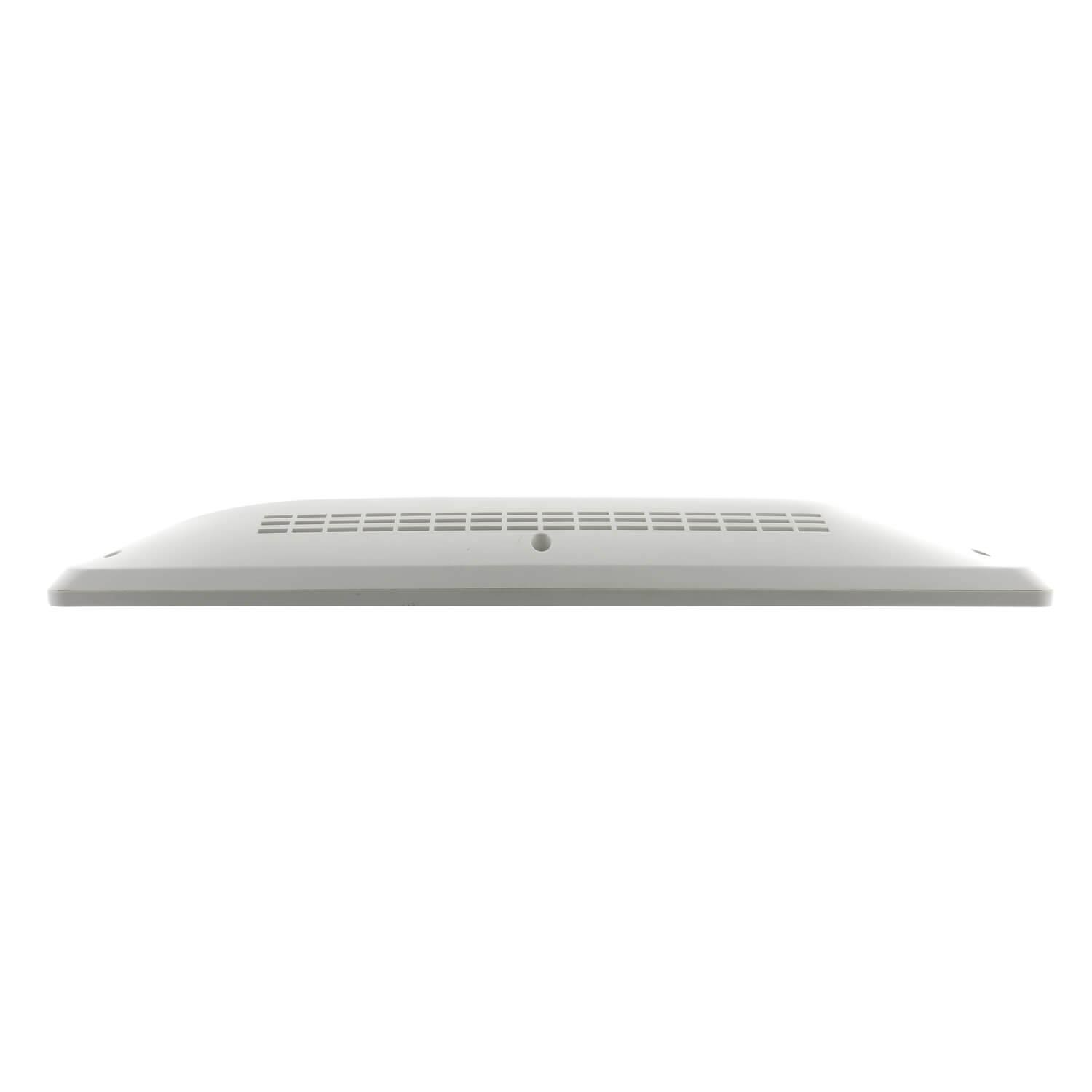

15.6″ Medical LCD, 1920×1080, P-Cap Touch

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW13101100 Produktové číslo: W15L100-PTA3-MEKategorie: Výrobce: Winmate
Poptat produkt

W15L100-PTA3-ME is a 15.6-inch certified IEC 60601 multi-touch chassis display with a set of features designed to provide high quality image reproduction and on intuitive touch experience while following the standards and safety of a sterile healthcare environment. The display features a 15.6″ Panel with projected-capacitive multi-touch in a 1920 x 1080 resolution. The W15L100-PTA3-ME is a high quality display solution for the viewing of data and imaging.


  • 15.6″ 1920 x 1080 Resolution
  • VGA input and HDMI input
  • Stylish and elegant design
  • IEC 60601-1:2005, IEC 60601-1-6:2010, EN60601-1-2 (Ed. 4.0) Certified Display

  • Technical Description

    Model NameW15L100-PTA3-ME
    Panel Size15.6″ TFT
    Resolution1920 x 1080
    Panel Brightness300 cd/m(typ.)
    Contrast Ratio700:1 (typ.)
    Viewing Angle-85~85(H); -85~85(V)
    Number of Colors16.2M
    TouchProjected Capacitive Touch
    User Control and ActivityButtons at the back side

    Mechanical Description

    Dimensions (W x L x H) (mm)387.8 x 232.9 x 38.4 (mm)
    HousingBack cover color: White Plastic Housing
    MountingVESA Mount (75 x 75, 100 x 200mm)

    Power Information

    Power Consumption10W typical, normal operation
    Power Input12V DC 2.5mm with External AC to DC Adapter. Complies with Level VI efficiency standard

    Environment & Certification

    Operating Temperature (C)0~50C
  • IEC 60601-1:2005 + A1:2015(Ed. 3.1)
  • IEC 60601-1-6:2010 + A1:2013 (Ed. 3.1)
  • IEC 62366:2007 + A1:2014 (Ed. 1.1)
  • ANSI/AAMI ES60601-1:2005/A1:2012 and C1:2009/(R)2012 and A2:2010/(R)2012
  • CAN/CSA-C22.2 No.60601-1:14
  • EN60601-1-2 (Ed. 4.0)
  • EN55032/EN55024, FCC part 15B
  • EN60950-1
  • RoHS-2, REACH, WEEE compliant

  • I/O Specification

    I/O Connectors1 x VGA
    1 x HDMI
    1 x Audio
    1 x USB for Touch
    Output Signal2 x 2 Watt Speaker

    Packing List

    Accessories12V DC in Adapter
    HDMI cable
    VGA cable
    USB cable for Touch

    Rozměry387,8 × 232,9 × 38,4 mm


    Natočení obrazovky (pivot)
