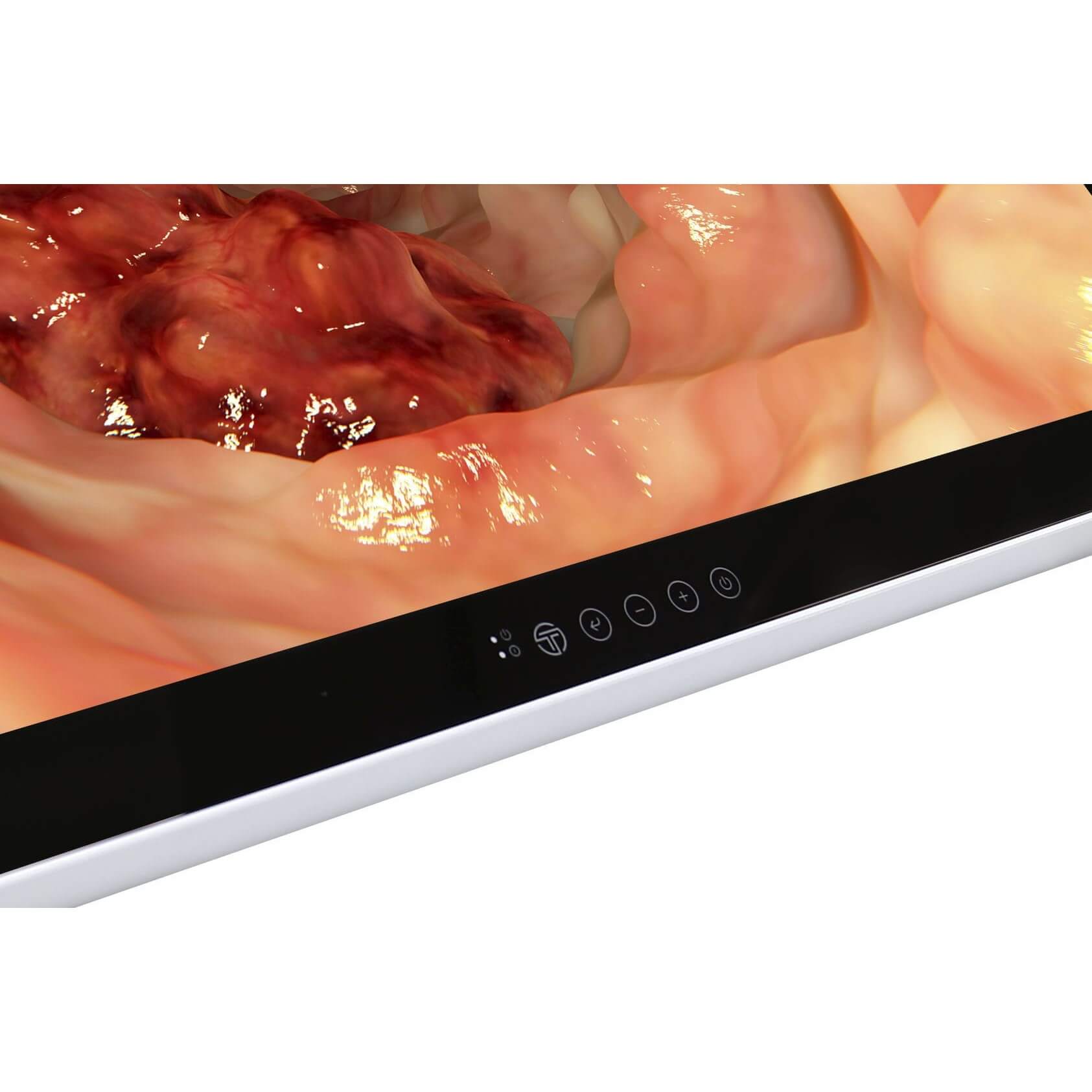

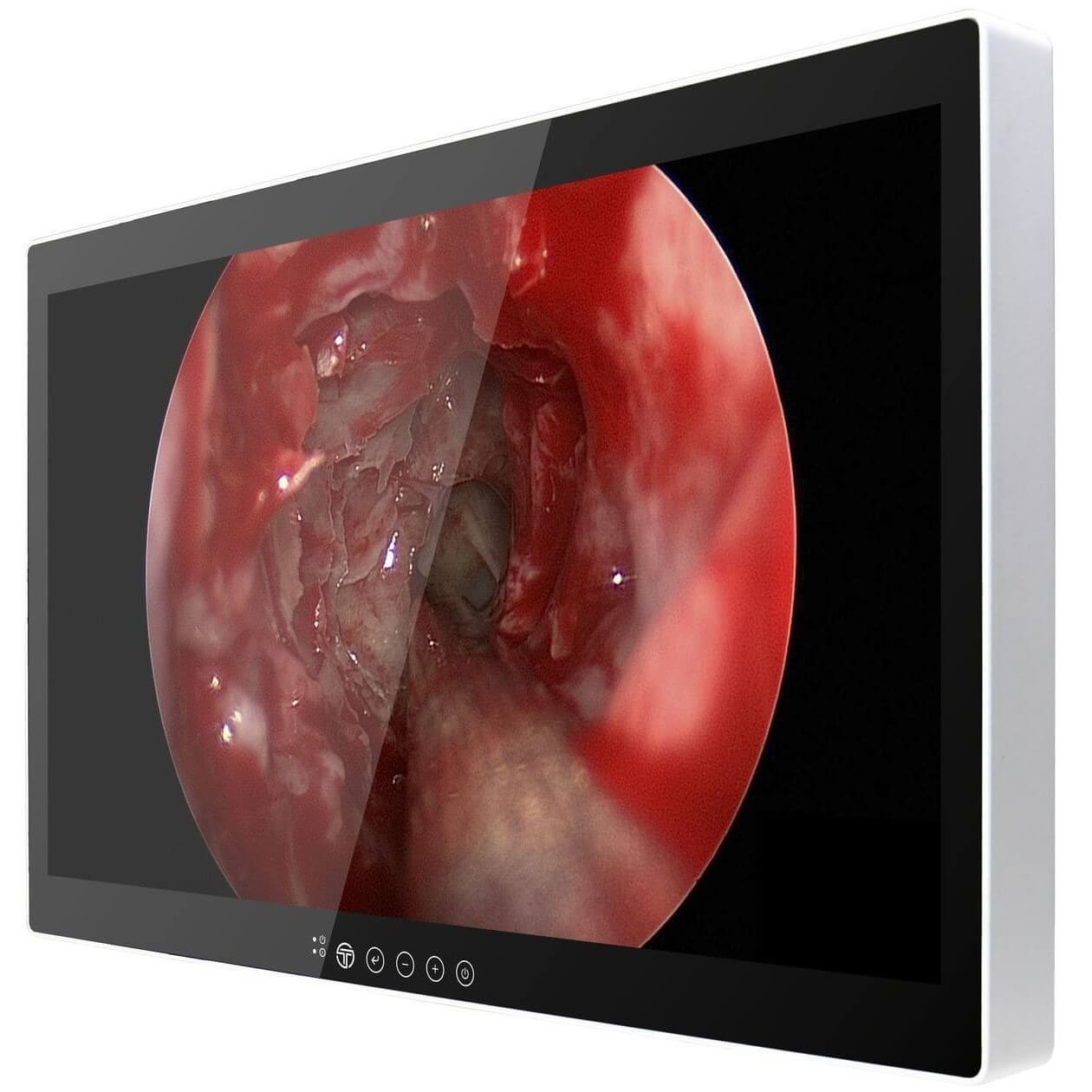

M320TF

32″ UHD 4K Medical LCD, 3840×2160, P-Cap Touch

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW13104200 Produktové číslo: M320TFKategorie: Výrobce: Winmate
Poptat produkt

32-inch certified IEC 60601-1, 60601-1-6 and EN60601-1-2 display with 4K UHD resolution of 3840 x 2160 pixels in a thin and compact housings and come equipped with 3D lookup table (LUT) for unrivaled color accuracy. The M320TF display is able to achieve faithful representation of surgical images or videos for use in endoscopy and operating rooms.


Features

ľ¬ 32″ Display with UHD 4K (3840 x 2160) native resolution
ľ¬ Thin and compact design with impact resistant screen
ľ¬ 3D Look Up Table (LUT) providing rich and deep depth perception
ľ¬ Built in stereo speakers and common 3.5mm input and output
jacks, will alleviate the issue for an additional speaker system
ľ¬ Fanless and ventless design, easy-to-clean
ľ¬ Compatible with existing imaging systems

Technical Description

Model NameM320TF
Panel Size32″
Aspect Ratio16:9
Active Display Area (mm)708.48″(H ) x 398.52″(V) mm
Pixel Pitch (mm)184.5 (H) x 184.5(V)mm
Resolution3840 x 2160 (UHD 4K)
Panel Brightness350 cd/m, 700 cd/m2 (Optional)
Contrast Ratio1000:1 (typ.)
Viewing Angle-89~89(H);-89~89(V)
Number of Colors1.07B Colors
TouchProjected Capacitive Touch, USB interface AR Glass (Optional)
Synchronization Range Horizontal/VerticalDigital Separate Sync., Composite Sync., Sync. On Green
User Control and ActivityCapacitive OSD : Power On/Off, On Screen Display Menu, Brightness Control (-/+)
Color ProfilesSupport 3D LUT pro´Čle 6 x general user color schemes DICOM GSDF (Optional)

Mechanical Description

Dimensions (W x L x H) (mm)777.58 x 477.62 x 48 mm
Weight (kg)11 kg (24.2lbs)
HousingRobust Aluminium Housing providing heat dissipation and durability
Antimicrobial Surface Coating

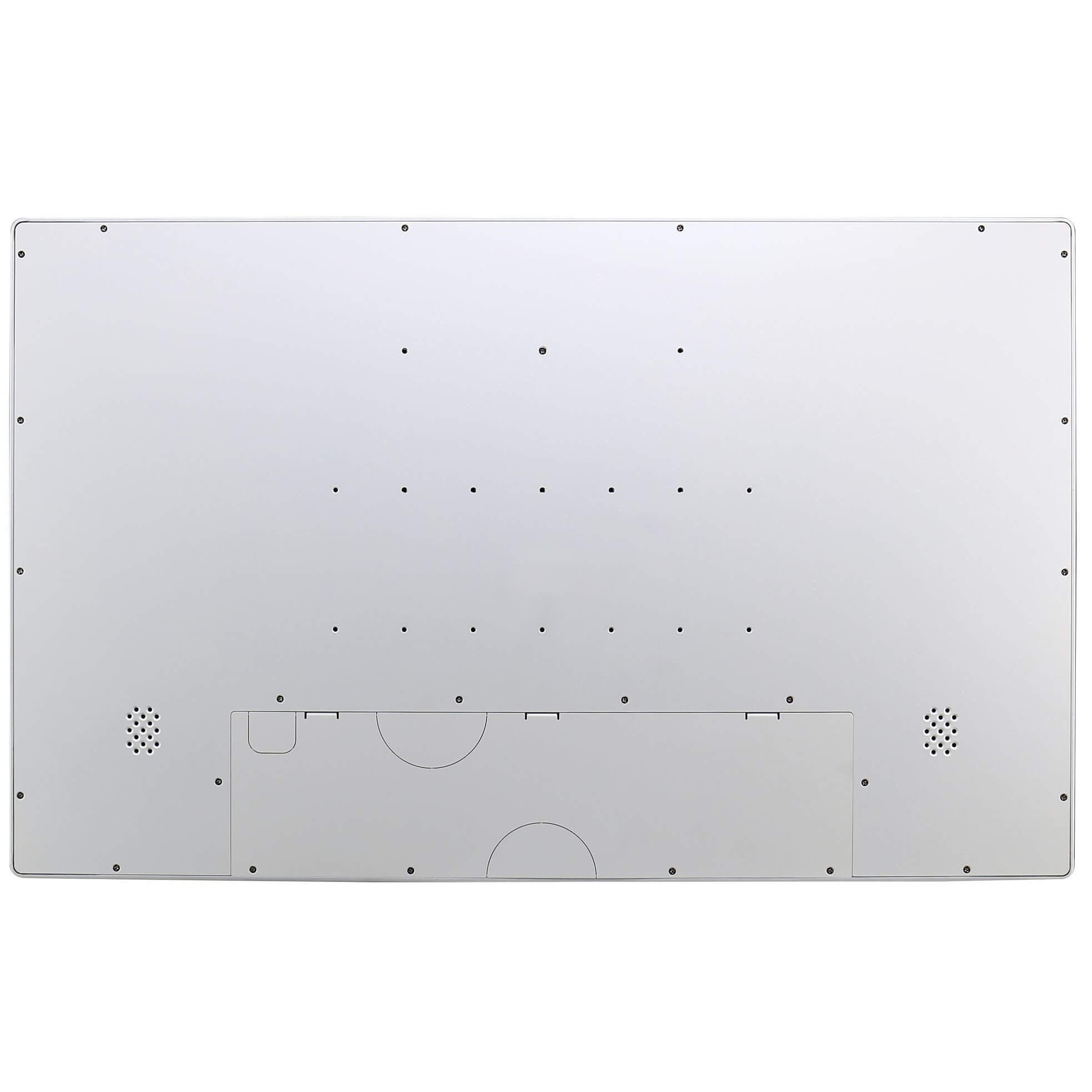

Mounting
  • VESA mounting 100 x 100mm
  • VESA mounting 200 x 100mm
  • VESA mounting 300 x 100mm

  • Power Information

    Power Source24V DC in 150W, with external 110-240V AC to DC Adapter

    Environment & Certification

    Operating Temperature (C)0 deg.C to 35 deg.C, Humidity up to 95%
    Certification
  • IEC 60601-1:2005 + A1:2015 (Ed. 3.1)
  • IEC 60601-1-6:2010 + A1:2013 (Ed. 3.1)
  • IEC 62366:2007 + A1:2014 (Ed. 1.1)
  • ANSI/AAMI ES60601-1:2005/ A1:2012 and C1:2009/(R)2012 and A2:2010/(R)2012
  • CAN/CSA-C22.2 No.60601-1:14
  • EN60601-1-2
  • EN55032/EN55024, FCC part 15B
  • EN60950-1
  • RoHS-2, REACH, WEEE compliant
  • Storage Temperature (C)-20 deg.C to 60 deg.C, Humidity up to 95%

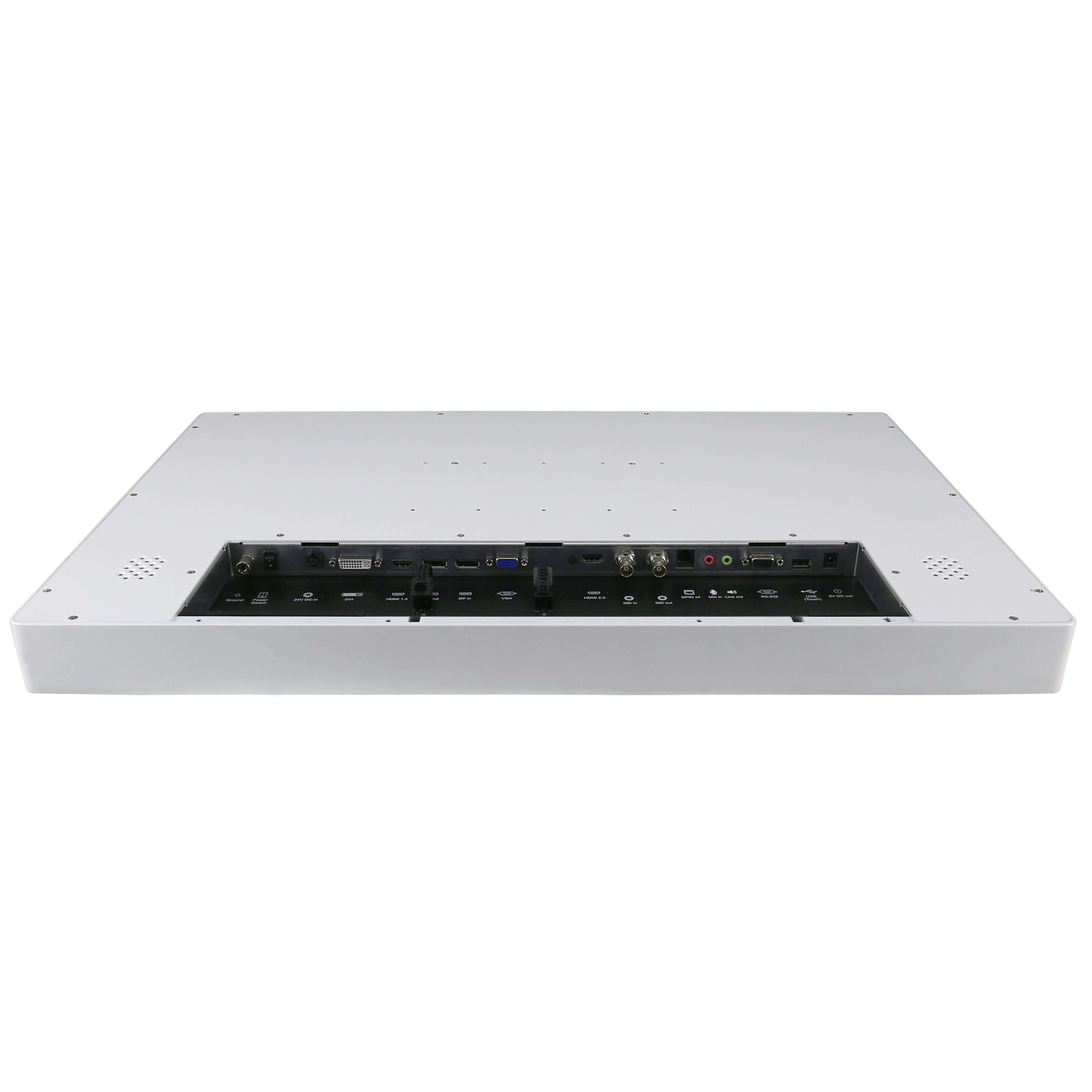

    I/O Specification

    Input Signal
  • 3G SDI
  • VGA
  • HDMI 2.0
  • Dual DVI in
  • DP 1.2
  • HDMI 1.4
  • Audio In
  • Output Signal
  • DP (Multi-Stream Transport)
  • Audio Out
  • 5V out
  • 3G SDI (Loop Through), support 1080P

  • Hmotnost11 kg
    Rozměry777,58 × 477,62 × 48 mm
    Výrobce

    Winmate

    Natočení obrazovky (pivot)

    Ne

    Datasheet

    Stáhnout datasheet:
