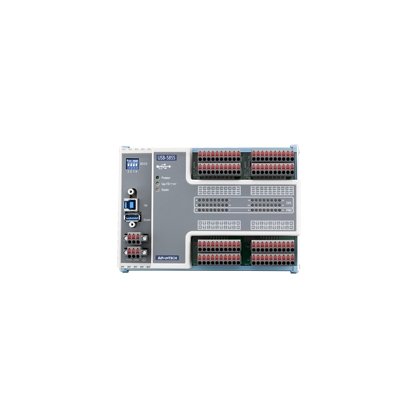

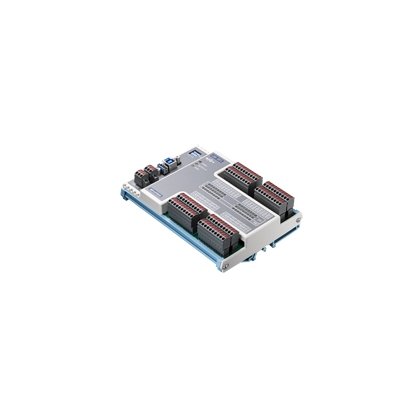

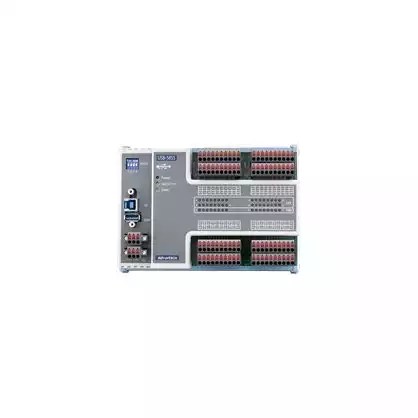

USB-5855-AE

32-ch IDI & 16-ch PhotoMOS USB3.0 I/O module

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GAX0004983 Produktové číslo: USB-5855-AEKategorie: Výrobce: Advantech
Poptat produkt
32-ch Isolated Digital Input and 16-ch PhotoMOS Relay USB 3.0 I/O module

The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.

Vlastnosti:
  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 32-ch digital input and 16-ch PhotoMOS Relay output (Form A) isolation
  • Wide input voltage range (10 ~ 30 VDC)
  • 1500 VDC optical isolation for relay outputs
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10
Hmotnost0,33 kg
Rozměry263 × 165 × 63 mm
Výrobce

Advantech

Datasheet

Stáhnout datasheet:
