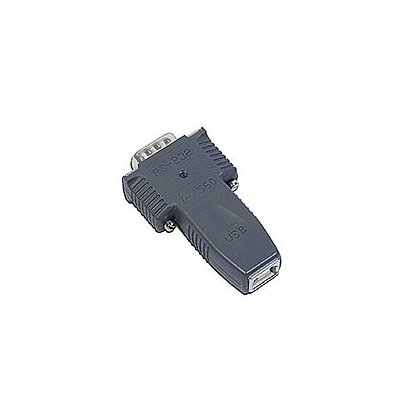

The I-7560/I-7560U provides a Windows serial COM port via it’s USB connection and is compatible with new and legacy RS-232 devices. USB Plug-and-Play allows easy serial port expansion and requires no IRQ, DMA, or I/O port settings manually.
The I-7560/I-7560U features a full set of RS-232 modem data and control signals (TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND) on it’s PC compatible DB-9 male connector. It also features a high-speed 115200 bps transmission rate.
The I-7560/I-7560U is powered from the USB bus and no additional power supply is needed.
Features:
- Fully Compliant with the USB 1.1/2.0 (High Speed)
- No External Power Supply required.
- Baud Rate, 300 ~ 115200 bps
- Operating Temperatures, -25 °C ~ +75 °C
- Driver Supports Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/Linux
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 |
| Baud Rate | 300 ~ 115200 bps |
| USB | |
|---|---|
| Specification | Fully Compliant with the USB 1.1/2.0/3.0 |
| Connector | Type B |
| Power | |
|---|---|
| Input Range | +5 VDC from USB |
| Consumption | 0.3 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 60 x 15 (W x H x D) |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
