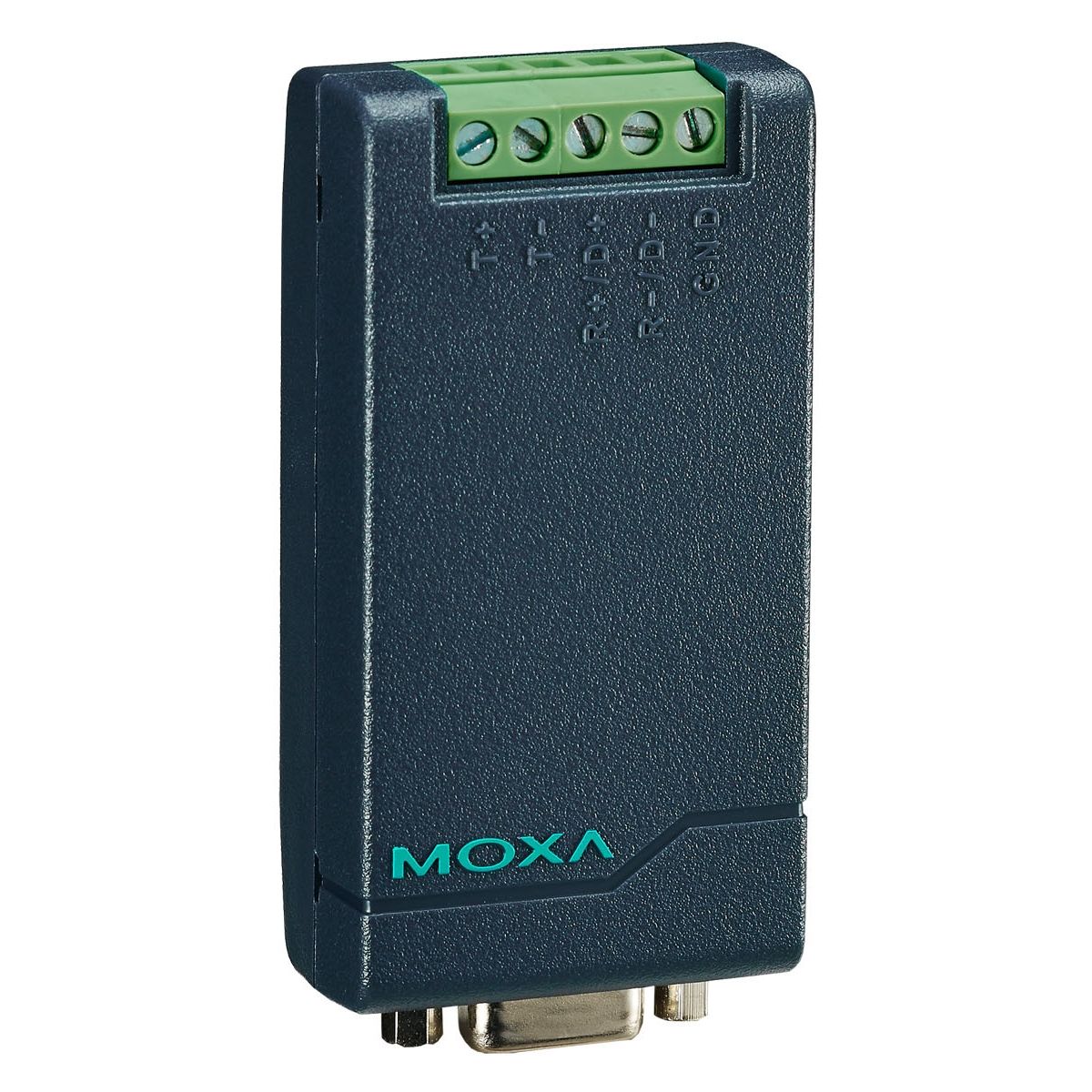

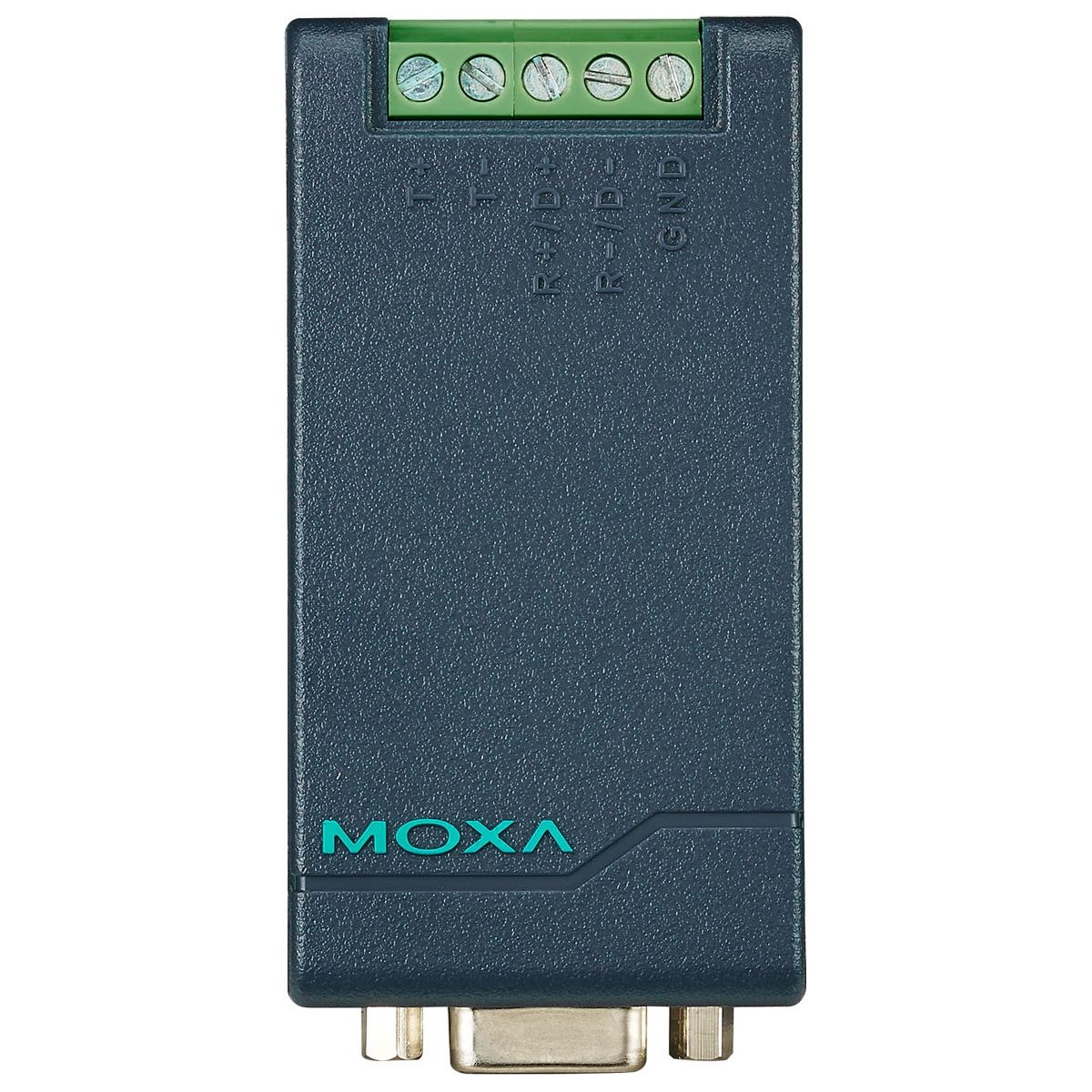

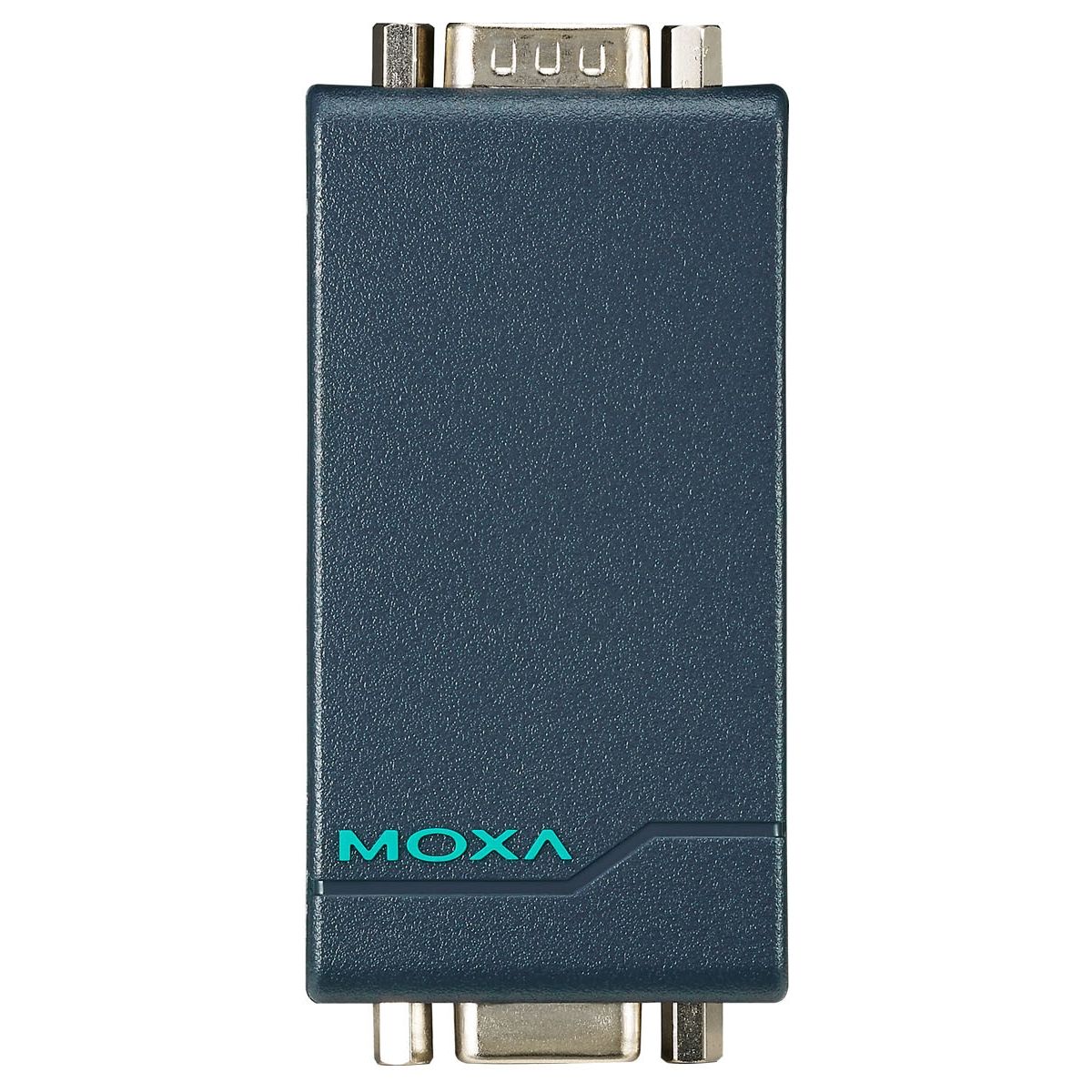

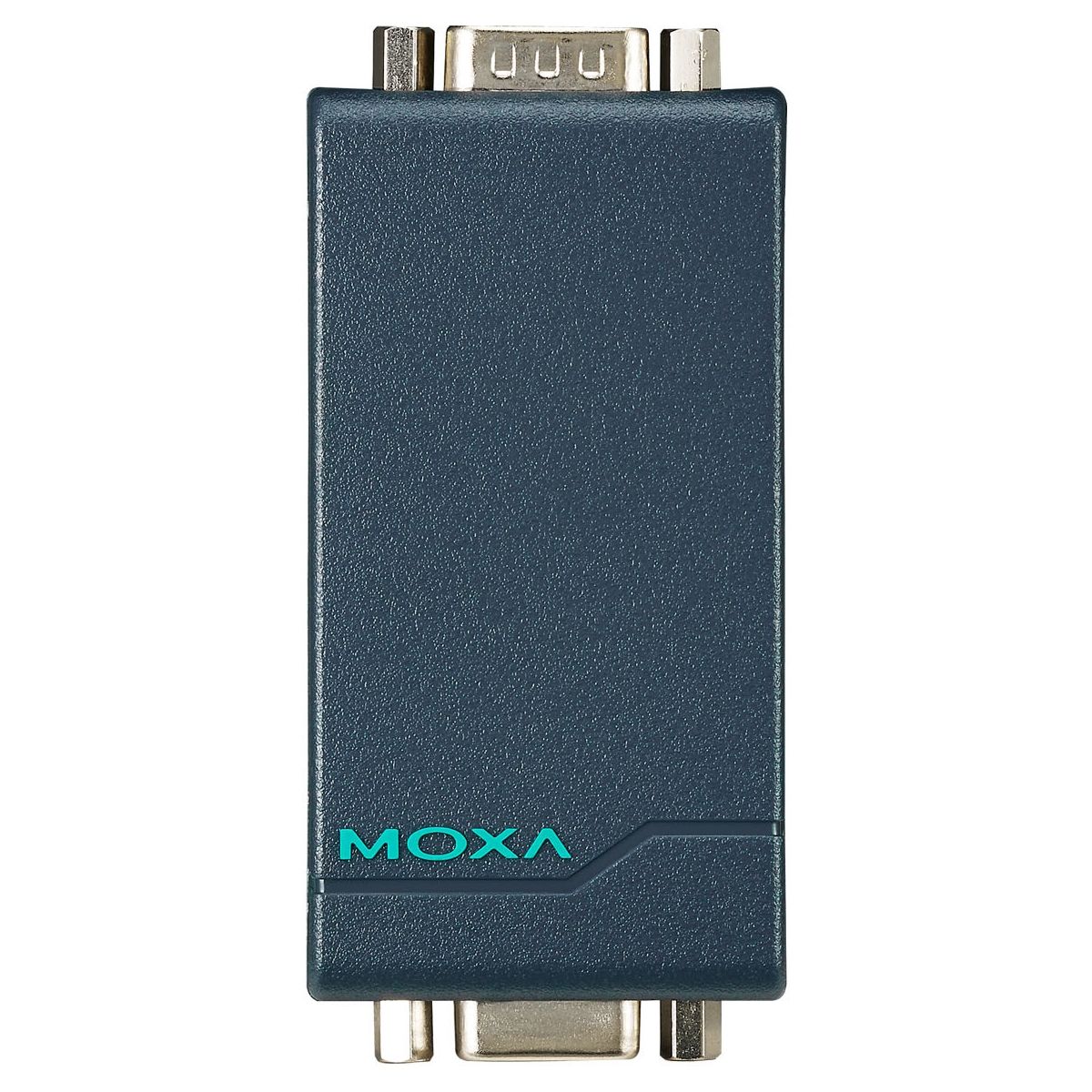

RS-232 to RS-422/485 converter

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6485090 Produktové číslo: TCC-80 Kategorie: Výrobce: MOXA
Poptat produkt
• Port-powered RS-232 to RS-422/485 converter with 15 KV serial ESD protection and terminal block on the RS-422/485 side
• External power source supported but not required
• Compact size
• Converts RS-422, and both 2-wire and 4-wire RS-485
• RS-485 automatic data direction control
• Automatic baudrate detection
• 15 KV serial ESD protection
• Built-in 120-ohm termination resistors
• 2.5 KV isolation (for TCC-80I only)

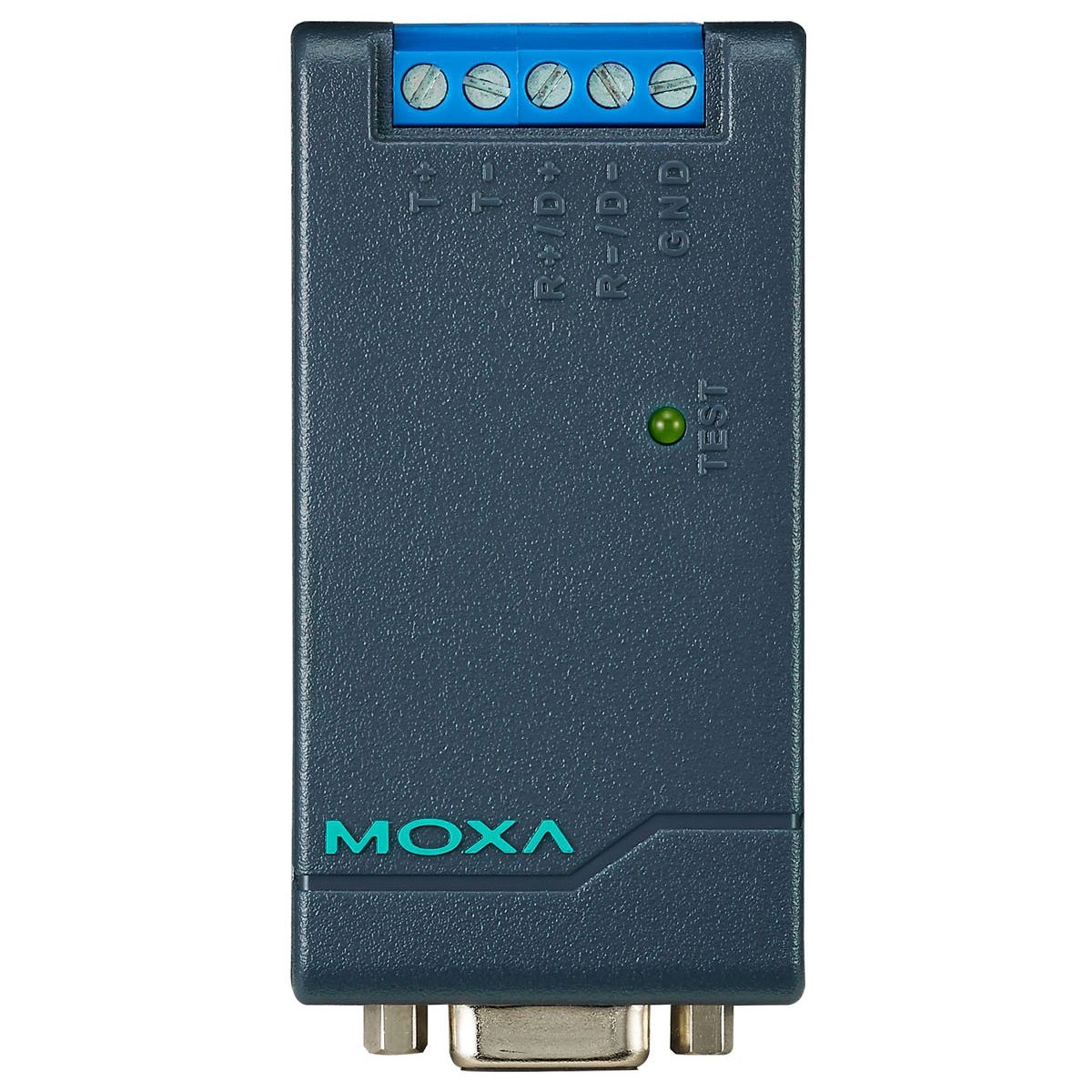

• LED port power indicator

The TCC-80/80I provides complete signal conversion between RS-232 and RS-422/485, without requiring an external power source. It supports both half duplex 2-wire RS-485 and full duplex 4-wire RS-422/485, either of which can be converted between RS-232’s TxD and RxD lines. In addition,the TCC-80/80I’s 15 KV ESD protection guards against damage from electrostatic discharge. The TCC-80I is the world’s first high-speed, port-powered converter with 2.5 KV isolation. Automatic data direction control is also provided for RS-485, in which the RS-485 driver is enabled automatically when the circuitry senses the TxD output from the RS-232 signal. This means that no programming effort is required to control the transmission direction of the RS-485 signal. Moreover, the TCC-80I patented LED port power indicator can let you check if TCC-80I is receiving enough power or not.
