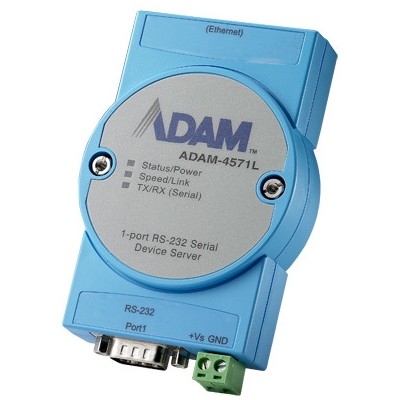

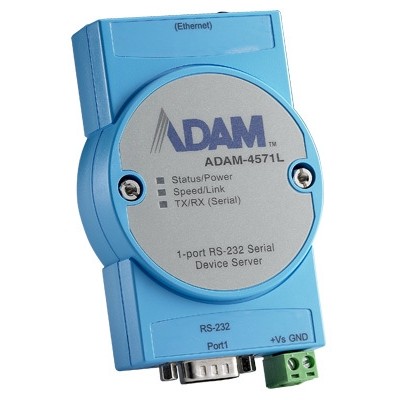

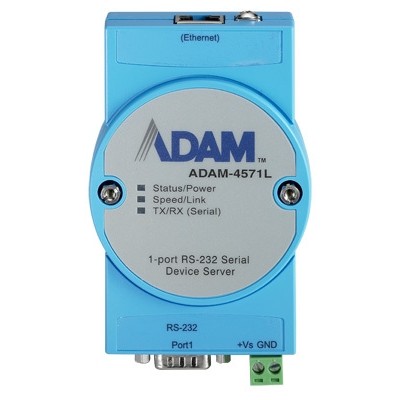

ADAM-4571L-DE

1-port RS-232 Serial Device Server

Pro zobrazení cen se musíte přihlásit nebo zaregistrovat.

Číslo zboží: GA55301065 Produktové číslo: ADAM-4571L-DE Kategorie: Výrobce:
Poptat produkt
• 1-port RS-232 Serial Device Server
• Supports RS-232 serial communication
• Provides 10/100 Mbps auto-sensing Ethernet port
• Supports baud rate up to 921.6 kbps
• Provides COM port redirection (Virtual COM), TCP and UDP operation modes
• Allows a max. of 5 hosts to access one serial port
• Supports auto re-connection function
• Supports Windows 2000/XP/Vista drivers
• Built-in 15 KV ESD protection for all serial signals
• Supports remote update firmware

The ADAM-4571L provides a robust and cost effective way to network-enable equipment in an industrial automation environment. It also brings the advantages of remote management and data accessibility to RS-232 devices. The transmission speed of the ADAM-4571L is up to 921.6 Kbps, meeting the demands for high-speed data exchanges. By encapsulating serial data and transporting it over Ethernet, the ADAM-4571L allows virtual serial links over TCP/IP networks. After Advantech Serial Device Server Configuration Utility installation, standard serial operation calls are transparently redirected to the serial device server, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. The ADAM-4571L comes with a Windows configuration utility. The configuration tool can auto-detect all serial device servers on the local network, and let you adjust all settings. The configuration utility merges the port mapping function to helps you to setup Virtual COM ports for Windows 2000/XP/Vista(x86) platform. This helps you configure all ports to meet your needs.
Hmotnost 0.28 kg
Rozměry (produktu / balení) 236 × 160 × 55 mm
Výrobce

Advantech

Druh média

Metalické

Ethernet

Ano

Počet portů

1

Protokol

Neurčeno

Rozšířená provozní teplota

Ne

Datasheet

Stáhnout datasheet:

3D Model

[canvasio3D width = ‚830‘ height = ‚600‘ border = ‚0‘ borderCol = ‚#F6F6F6‘ dropShadow = ‚0‘ backCol = ‚#FFFFFF‘ backImg = ‚/wp-content/themes/acipc-eshop/images/3D-background.jpg‘ mouse = ‚on‘ rollMode = ‚off‘ rollSpeedH = ‚0‘ rollSpeedV = ‚0‘ objPath = ‚https://eshop.autocont-ipc.cz/images/GA55301065/3dmodel/adam-4571l-de.stl‘ objScale = ‚0.5‘ objColor = ‚#5c5c5c‘ lightSet = ‚7‘ reflection = ‚custom1‘ refVal = ‚7‘ objShadow = ‚on‘ floor = ‚off‘ floorHeight = ’42‘ lightRotate = ‚off‘ vector = ‚off‘ mousewheel = ‚on‘ Help = ‚off‘ loadingText = ‚Načítání 3D modelu, prosím čekejte…‘][/canvasio3D]
* Upozornění: 3D model slouží pouze pro ilustrační účely. Některé detaily nemusí být vyobrazeny. Design zařízení se může kdykoliv bez předchozího upozornění změnit.
