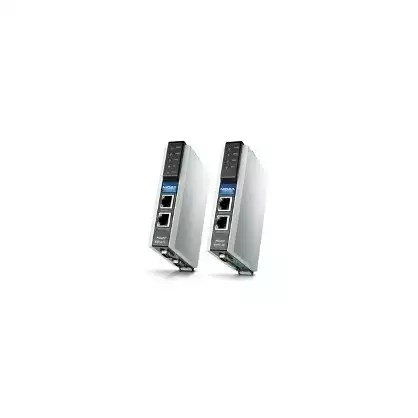

MGate EIP3270I

2-port EtherNet/IP to DF1, isolation, 0~55°C

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6237110 Produktové číslo: MGate EIP3270I Kategorie: Výrobce: MOXA
Poptat produkt
• 2-port EtherNet/IP to DF1 gateway with 2 KV isolation
• PCCC objects for Rockwell Automation networks supported
• ProCOM provides a virtual serial port for multiple DF1 and EtherNet/IP device communication
• 8 simultaneous EtherNet/IP clients with up to 16 simultane ous requests per client
• Serial redirector function provided
• Embedded EtherNet/IP and DF1 protocol analyzer
• Redundant dual DC power inputs
• Built-in Ethernet cascading for easy wiring
• 0 to 55°C operating temperature

MGate™ EIP3000 series products provide 1 or 2-port DF1 to EtherNet/IP protocol conversion for users who need to connect Allen Bradley PLCs to an EtherNet/IP network, and provide a cost-effective way to combine PLC and SCADA software into the same system.
Výrobce

Moxa

Druh média

Metalické

Ethernet

Ano

Počet portů

2

Protokol

Jiný

Rozšířená provozní teplota

Ne

Datasheet

Stáhnout datasheet:
