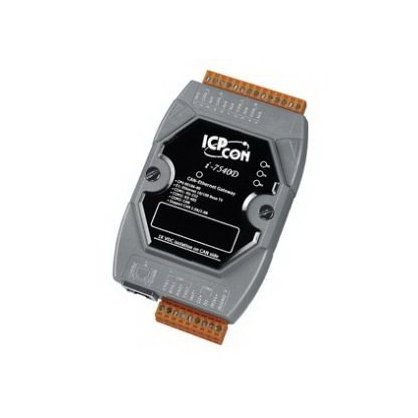

The I-7540D is a CAN to Ethernet converter, and is usually applied as an Ethernet to CAN/RS-232/485 Device Server. It supports socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The I-7540D also provides transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. By the features of tiny operating system, protocol independence, small casing and flexibility, it is able to widely fit various RS-232, RS-485 and CAN applications, which may be based on private RS-232 protocol, private CAN protocol, Modbus protocol, CANopen protocol, DeviceNet protocol or J1939 protocol.
Features:
- CAN to Ethernet Converter
- Ethernet Protocol: TCP, UDP, IP, ICMP, ARP
- CAN Protocol: CAN 2.0A and 2.0B.
- One RS-232 port, one RS-485 port and one CAN port
- 2500Vrms photo-isolation protection on CAN side.
- Max transmission speed: CAN: 1Mbps, RS-232/485: 115,2 kbps
- Max CAN transmission distance: 1000m (follow CAN specification)
- Firmware updated from COM1 or Ethernet port
- Configuration utility included + Web Configuration + Virtual COM technology
- Maximum 25 Ethernet clients
| LED Indicators |
| Status |
1 x Power
3 x CAN status |
| COM Ports |
| Ports |
1 x RS-232
1 x RS-485 (self-turner ASIC inside) |
| Baud Rate |
110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Parity |
None, Even, Odd |
| Data Bit |
7, 8 |
| Stop Bit |
1 |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| CAN |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Transceiver |
NXP 82C250/NXP TJA1042 |
| Ports |
1 |
| Baud Rate |
10 k ~ 1 M bps |
| Isolation |
1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 ? terminal resistor |
| Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Filter |
Yes |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
2.5 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
72 x 122 x 33 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
