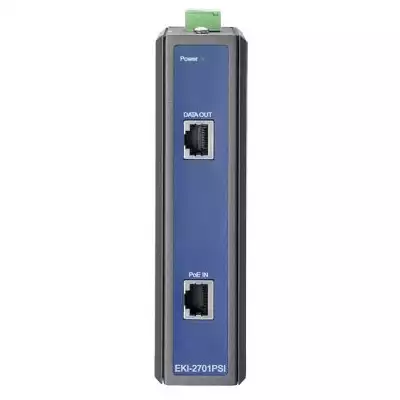

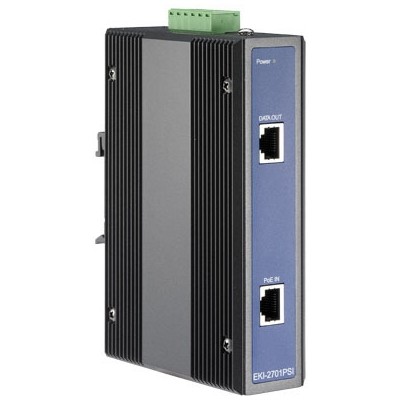

EKI-2701PSI-AE

Industrial Ethernet PoE Splitter, wide temp.

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GA5531219 Produktové číslo: EKI-2701PSI-AE Kategorie: Výrobce: Advantech
Poptat produkt
• Industrial PoE Splitter with Wide Temperature
• Supports 10/100/1000T(X) for PoE in and Data out
• IEEE802.3af compliant split power/data from PoE equipment
• Power isolation and short circuit protection for power output
• Supports output power up to 12.95 W at 24 VDC
• Provides slim size and DIN-rail/Wallmount with IP30 metal mechanism
• Supports operating temperatures from -40 ~ 75° C

With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard Ethernet CAT5 cable, EKI-2701PSI plays the role of powered device (PD) and splits power from PoE to Ethernet devices. In this case, both power and data can be transmitted up to 328 feet (100m) from power source equipment (PSE). This product can operate in a wide range of temperature between -40 and 75° C, and the rugged hardware design makes EKI-2701PSI perfect to ensure your PoE Ethernet equipment can meet industrial applications demanding.
Hmotnost 0.4 kg
Rozměry (produktu / balení) 140 × 95 × 37 mm
Výrobce

Advantech

Datasheet

Stáhnout datasheet:
