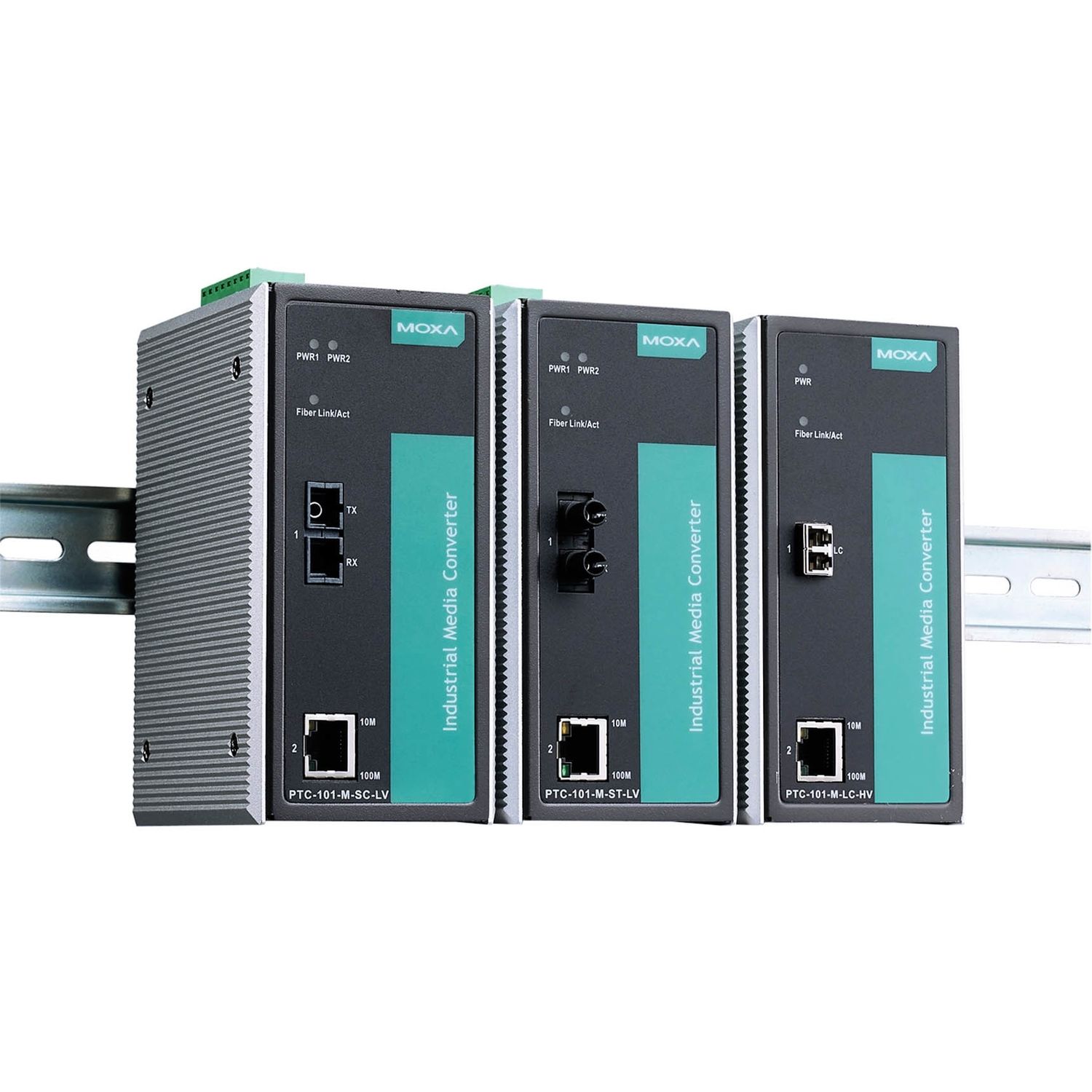

PTC-101-S-ST-HV

10/100BaseT(X) to 100BaseFX, single, ST, 1x power

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6277260 Produktové číslo: PTC-101-S-ST-HV Kategorie: Výrobce: MOXA
Poptat produkt
• Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with ST connector, 1 isolated power supply (88-300 VDC or 85-264 VAC)
• 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
• Link Fault Pass-Through (LFP)
• Power failure alarm by relay output (LV model only)
• Redundant dual DC power inputs
• Integrated high-reliability power supply eliminates the need for external power transformer
• Compliant with EN 50121-4 and essential sections of EN 50155
• -40 to 85°C operating temperature

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD and vibration.
Výrobce

Moxa

Gigabit Ethernet

Ne

Rozšířená provozní teplota

Ano

Datasheet

Stáhnout datasheet:
