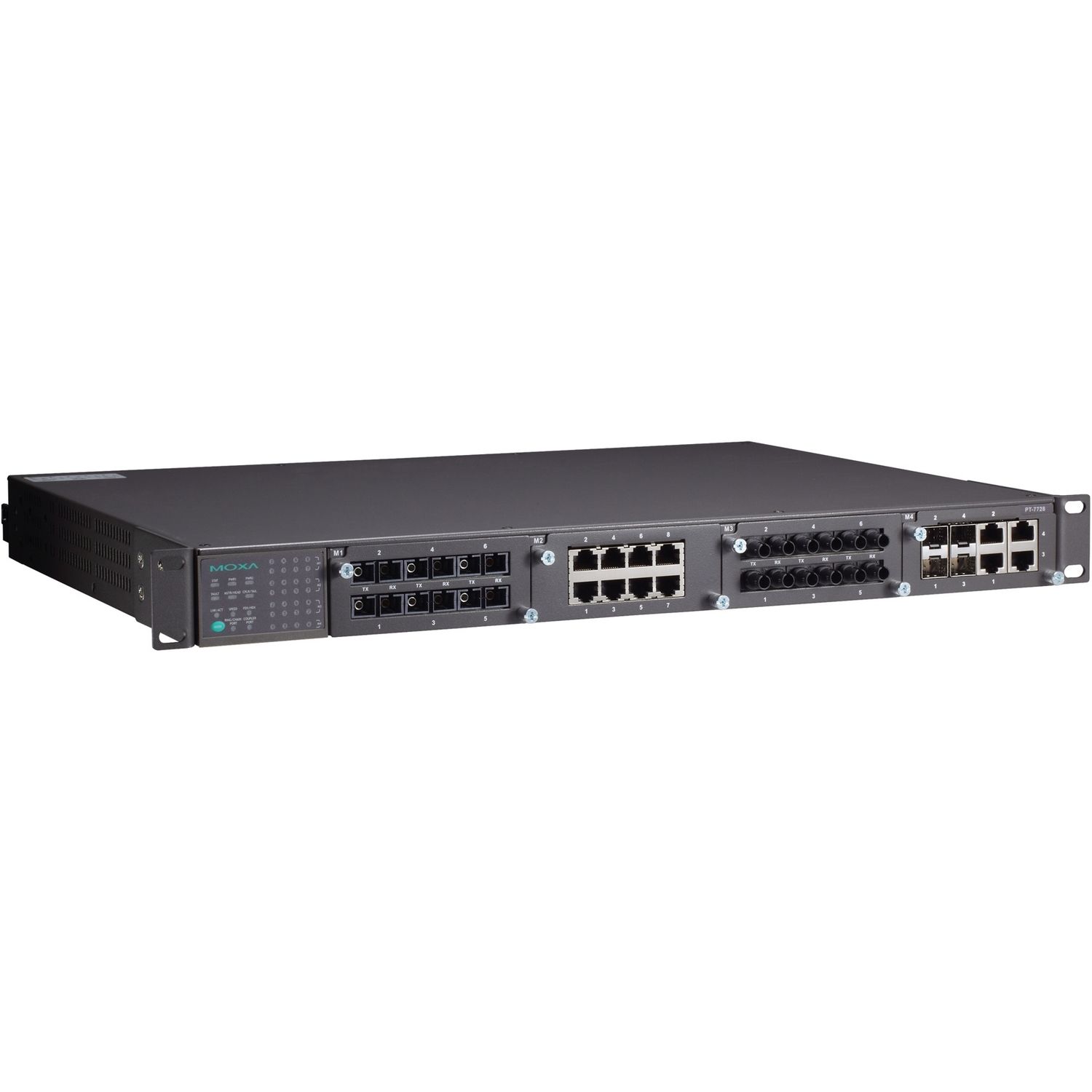

PT-7728-PTP-R-HV-HV

24+4G ports, rear-panel, 2x isolated AC/DC

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6310464 Produktové číslo: PT-7728-PTP-R-HV-HV Kategorie: Výrobce: MOXA
Poptat produkt
• IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 2 isolated power supplies (88-300 VDC or 85-264 VAC)
• IEEE 1588 PTP V2 (Precision Time Protocol) with hardware time stamping for precise time synchronization of networks
• Support for both IEEE 1588 Boundary Clock and Transparent Clock
• Support for both End to End (1-step & 2-step) and Peer to Peer (2-step) modes in Transparent Clock
• High precision time accuracy (under 1 ?s)
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• EtherNet/IP* and Modbus/TCP industrial Ethernet protocols supported
• DHCP Option 82 for IP address assignment with different policies
• Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• Supports advanced VLAN capability with Q-in-Q tagging
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management prevents unpredictable network status
• Multi-port mirroring for online debugging
• Automatic warning by exception through email, relay output
• RMON for efficient network monitoring and proactive capability
• Automatic recovery of connected devices’ IP addresses
• Line-swap fast recovery
• Configurable by web browser, Telnet/serial console, Windows utility, and ABC-01 automatic backup configurator
• -40 to 85°C operating temperature

PowerTrans PT-7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP’s Gigabit and fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. Moxa’s PT-7728-PTP IEC 61850-3 fast Ethernet switches support the latest version of IEEE 1588 v2 technology to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 ?s for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality. The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports, 24 fast Ethernet ports, and up to 14 IEEE 1588 fast Ethernet ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.
Výrobce

Moxa

Certifikace

EN50155, IEC61850-3

Gigabit Ethernet

Ano

Manažovatelné

Ano

Montáž do racku

Ano

Montáž na DIN lištu

Ne

Optický port

Ano

Počet portů

28

PoE

Ne

Protokol

Ethernet, Modbus

Rozšířená provozní teplota

Ano

SFP slot

Ano
