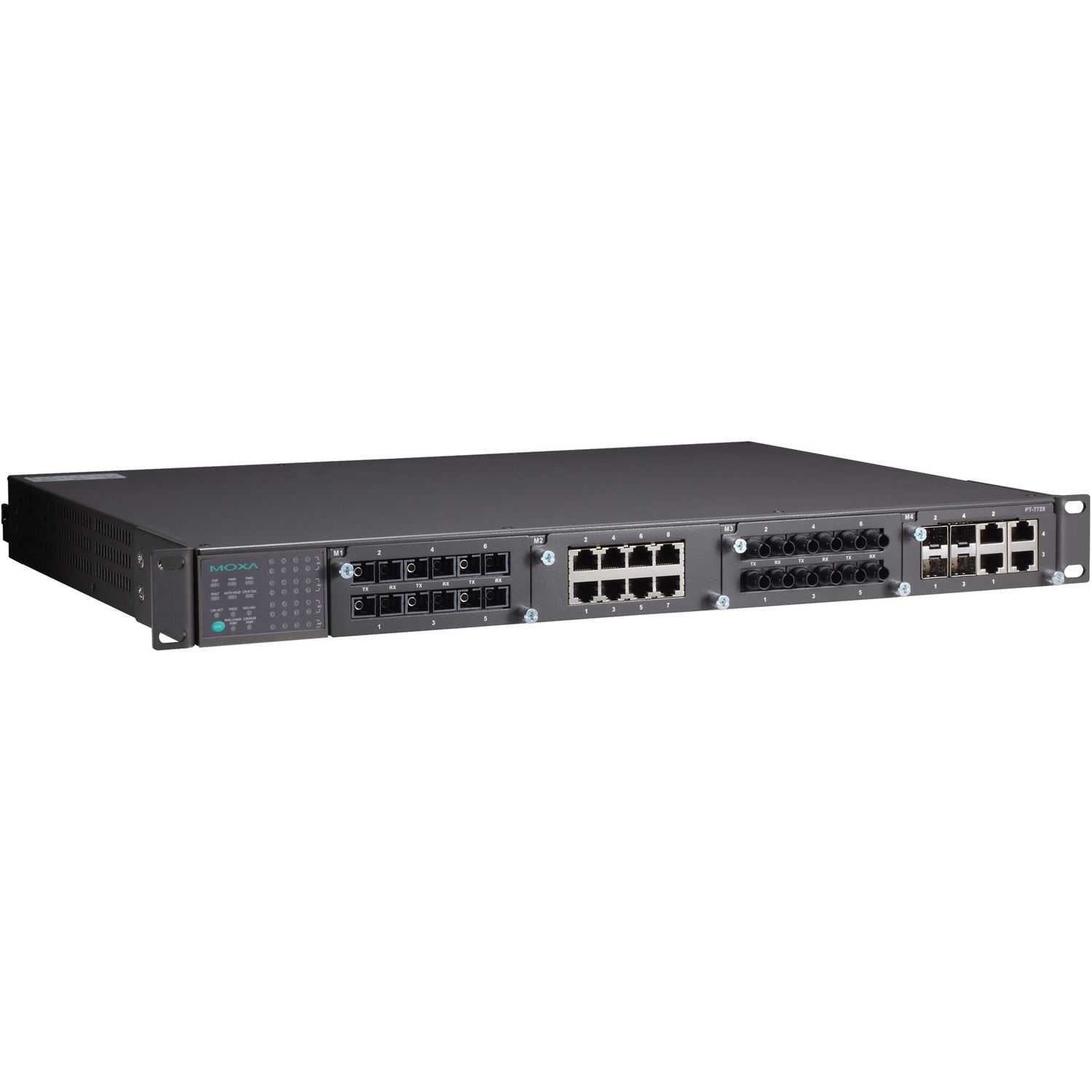

24+4G ports, rear-panel, 1x isolated 24VDC

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6310440 Produktové číslo: PT-7728-PTP-R-24 Kategorie: Výrobce: MOXA
Poptat produkt
• IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 1 isolated power supply (24 VDC)
• IEEE 1588 PTP V2 (Precision Time Protocol) with hardware time stamping for precise time synchronization of networks
• Support for both IEEE 1588 Boundary Clock and Transparent Clock
• Support for both End to End (1-step & 2-step) and Peer to Peer (2-step) modes in Transparent Clock
• High precision time accuracy (under 1 ?s)
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• EtherNet/IP* and Modbus/TCP industrial Ethernet protocols supported
• DHCP Option 82 for IP address assignment with different policies
• Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• Supports advanced VLAN capability with Q-in-Q tagging
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management prevents unpredictable network status
• Multi-port mirroring for online debugging
• Automatic warning by exception through email, relay output
• RMON for efficient network monitoring and proactive capability
• Automatic recovery of connected devices‘ IP addresses
• Line-swap fast recovery
• Configurable by web browser, Telnet/serial console, Windows utility, and ABC-01 automatic backup configurator
• -40 to 85°C operating temperature

PowerTrans PT-7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP’s Gigabit and fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. Moxa’s PT-7728-PTP IEC 61850-3 fast Ethernet switches support the latest version of IEEE 1588 v2 technology to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 ?s for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality. The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports, 24 fast Ethernet ports, and up to 14 IEEE 1588 fast Ethernet ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.



EN50155, IEC61850-3

Gigabit Ethernet




Montáž do racku


Montáž na DIN lištu


Optický port


Počet portů





Ethernet, Modbus

Rozšířená provozní teplota


SFP slot
