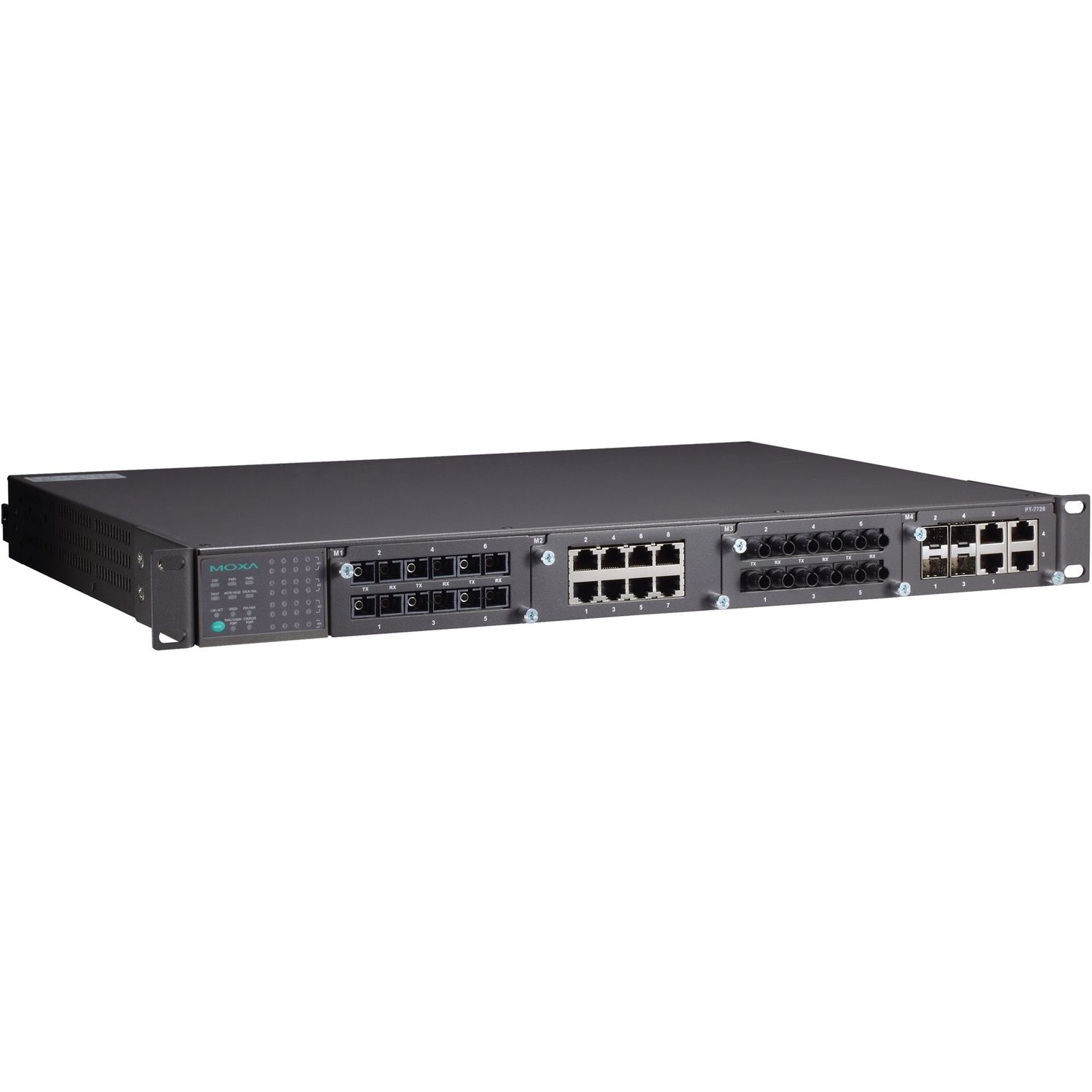

PT-7728-F-48-48

switch with 2x power supply (48 VDC)

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6310215 Produktové číslo: PT-7728-F-48-48 Kategorie: Výrobce: MOXA
Poptat produkt
• IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, and 1 slot for Gigabit Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 2 isolated power supplies (48 VDC)
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Software-based IEEE 1588 PTP (Precision Time Protocol) for precise time synchronization of networks
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• DHCP Option 82 for IP address assignment with different policies
• EtherNet/IP* and Modbus/TCP industrial Ethernet protocols supported
• Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• Supports advanced VLAN capability with Q-in-Q tagging
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management prevents unpredictable network status
• Multi-port mirroring for online debugging
• Automatic warning by exception through email, relay output
• RMON for efficient network monitoring and proactive capability
• Automatic recovery of connected device’s IP addresses
• Line-swap fast recovery
• Configurable by Web browser, Telnet/Serial console, CLI, Windows utility, and ABC-01 automatic backup configurator
• Works with MXview industrial network management software
• operating temperature: -40 to 85°C

The PowerTrans PT-7728 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN50155/EN50121-4). The PT-7728’s Gigabit and fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. The modular switchesdesign of the PT-7728 also makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 fast Ethernet ports. Along with the optional front or rear wiring, these features together make the PT-7728 suitable for a variety of industrial applications.
Výrobce

Moxa

Certifikace

EN50155, IEC61850-3

Gigabit Ethernet

Ano

Manažovatelné

Ano

Montáž do racku

Ano

Montáž na DIN lištu

Ne

Optický port

Ano

Počet portů

28

PoE

Ne

Protokol

Ethernet, Modbus

Rozšířená provozní teplota

Ano

SFP slot

Ano

Datasheet

Stáhnout datasheet:
