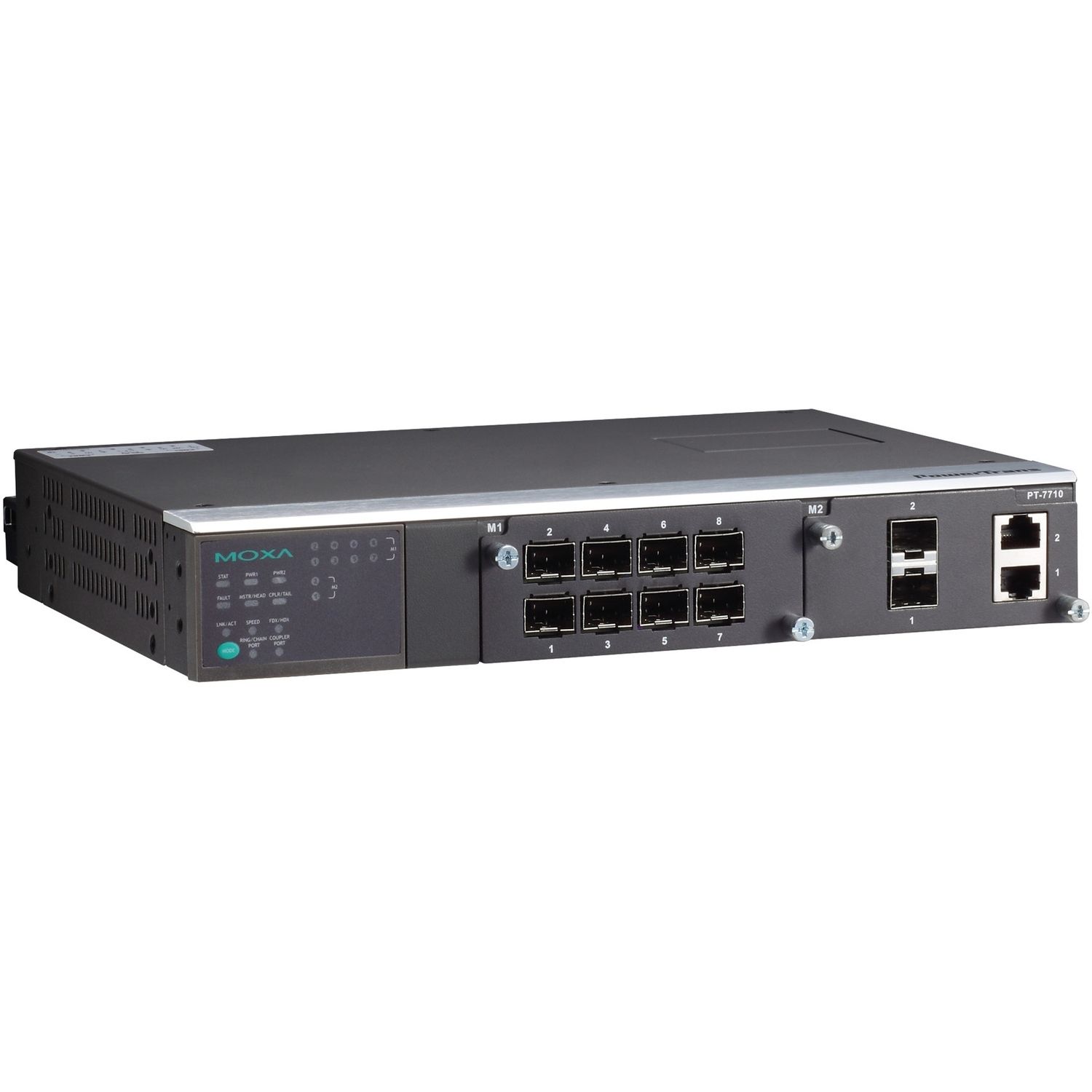

PT-7710-D-HV

10 or 8+2G ports, 1x isolated DC or AC

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6310350 Produktové číslo: PT-7710-D-HV Kategorie: Výrobce: MOXA
Poptat produkt
• IEC 61850-3 modular managed rackmount Ethernet switch system with 1 slot for fast Ethernet modules, and 1 slot for fast Ethernet or Gigabit Ethernet modules, for a total of up to 10 or 8+2G ports, cabling on top panel, 1 power supply (88-300 VDC or 85-264 VAC)
• Command Line Interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Software-based IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported
• Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
• Modbus/TCP industrial Ethernet protocol supported
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• Supports advanced VLAN capability with Q-in-Q tagging
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management prevents unpredictable network status
• Lock port to restrict access to authorized MAC addresses
• Multi-port mirroring for online debugging
• Automatic warning by exception through email, relay output
• Automatic recovery of connected devices’ IP addresses
• RMON for efficient network monitoring and proactive capability
• Line-swap fast recovery
• Configurable by Web browser, Telnet/Serial console, CLI* Windows utility, and ABC-01 automatic backup configurator
• Works with MXview industrial network management software
• operating temperature: -40 to 85°C

The PowerTrans PT-7710 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN50155/EN50121-4). The PT-7710’s Gigabit and fast Ethernet backbone, redundant ring, and 12/24/48 VDC dual redundant power supplies or 110/220 VDC/VAC power supplies increase the reliability of the communications and reduce cabling and wiring costs. The modular design of the PT-7710 makes network planning easy, and allows greater flexibility by letting you install up to 2 Gigabit ports and 8 fast Ethernet ports, or 10 fast Ethernet ports.
Výrobce

Moxa

Certifikace

EN50155, IEC61850-3

Gigabit Ethernet

Ano

Manažovatelné

Ano

Montáž do racku

Ano

Montáž na DIN lištu

Ne

Optický port

Ano

Počet portů

10

PoE

Ne

Protokol

Ethernet, Modbus

Rozšířená provozní teplota

Ano

SFP slot

Ano
