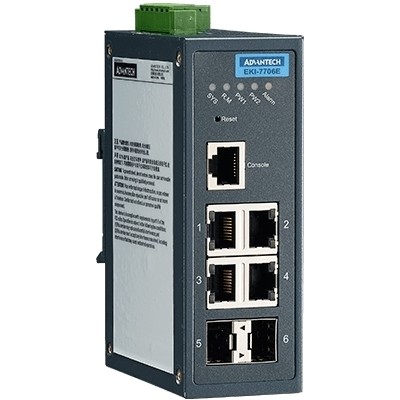

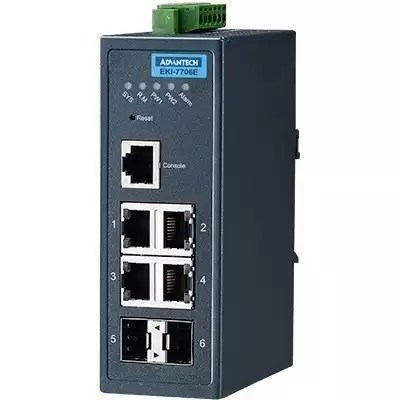

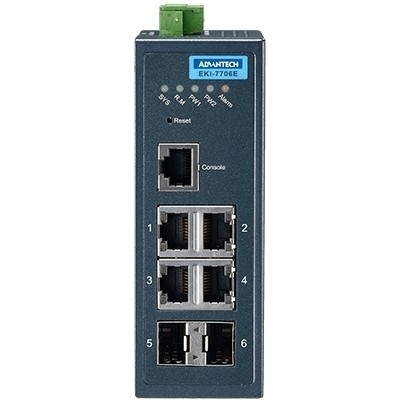

EKI-7706E-2FI-AE

4FE + 2SFP Managed Ethernet Switch Wide Temp

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GAX0003321 Produktové číslo: EKI-7706E-2FI-AE Kategorie: Výrobce: Advantech
Poptat produkt
4FE+2G SFP Managed Ethernet Switch, -40~75°C

EKI-7706E-2F/2FI supports 4 Fast Ethernet ports and 2 SFP ports. It provides abundant ports to connect many devices and it is embedded with Advantech’s IXM function, which benefits users with fast deployment and can dramatically save engineers time and costs. The EKI-7706E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7706E series is equipped with X-Ring Pro which can achieve ultra-high-speed recovery times of less than 20 ms to ensure network stability.

Vlastnosti:
  • 4 Fast Ethernet ports + 2 SFP ports
  • SFP socket for easy and flexible fiber expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • -40 ~ 85 °C wide-range operating temperature (EKI-7706E-2FI)
  • Dual 12~48 VDC power input and 1 relay output
Hmotnost 1 kg
Rozměry (produktu / balení) 216 × 165 × 68 mm
Výrobce

Advantech

Certifikace

Nespecifikováno

Gigabit Ethernet

Ne

Manažovatelné

Ano

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ne

Počet portů

6

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ano

SFP slot

Ano

Datasheet

Stáhnout datasheet:
