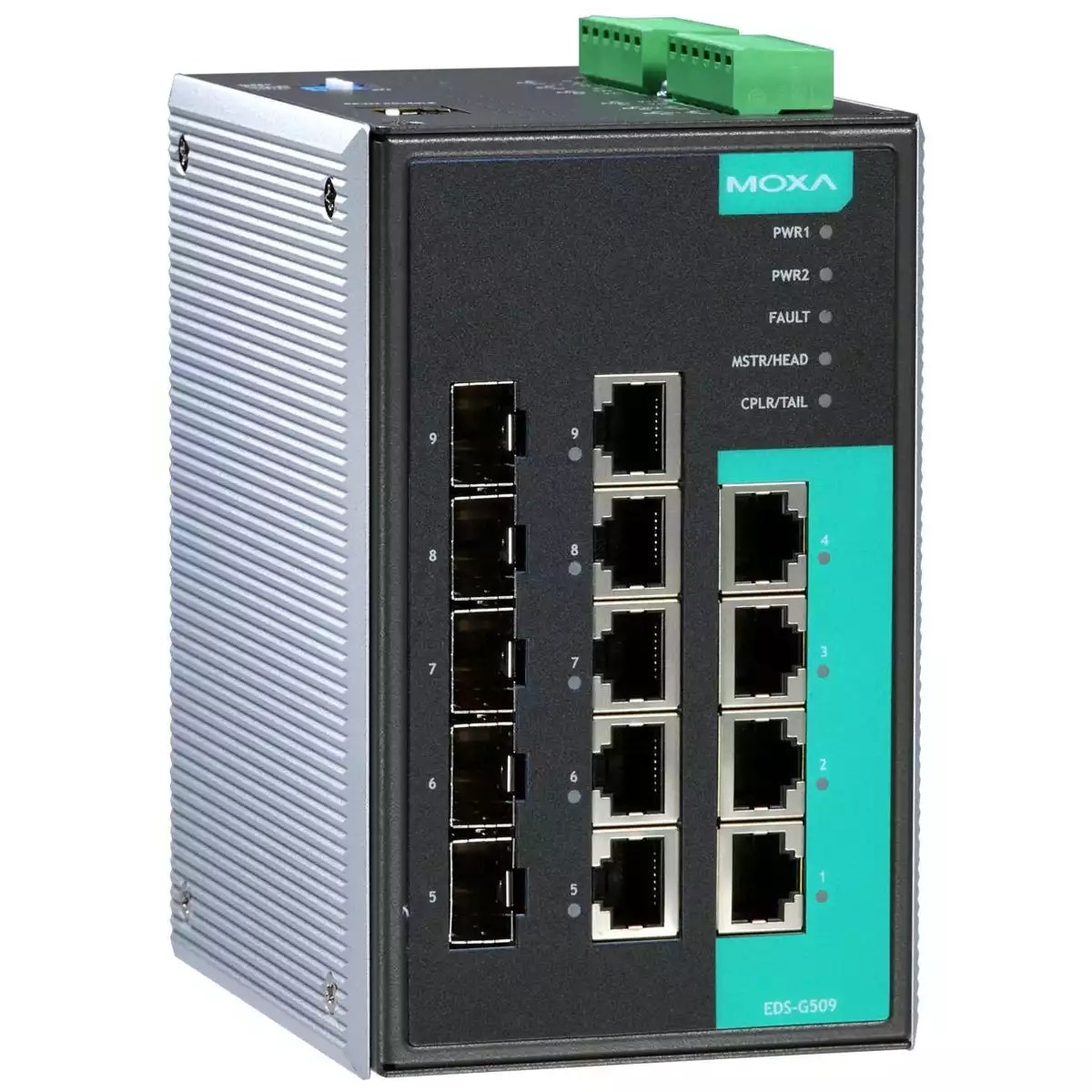

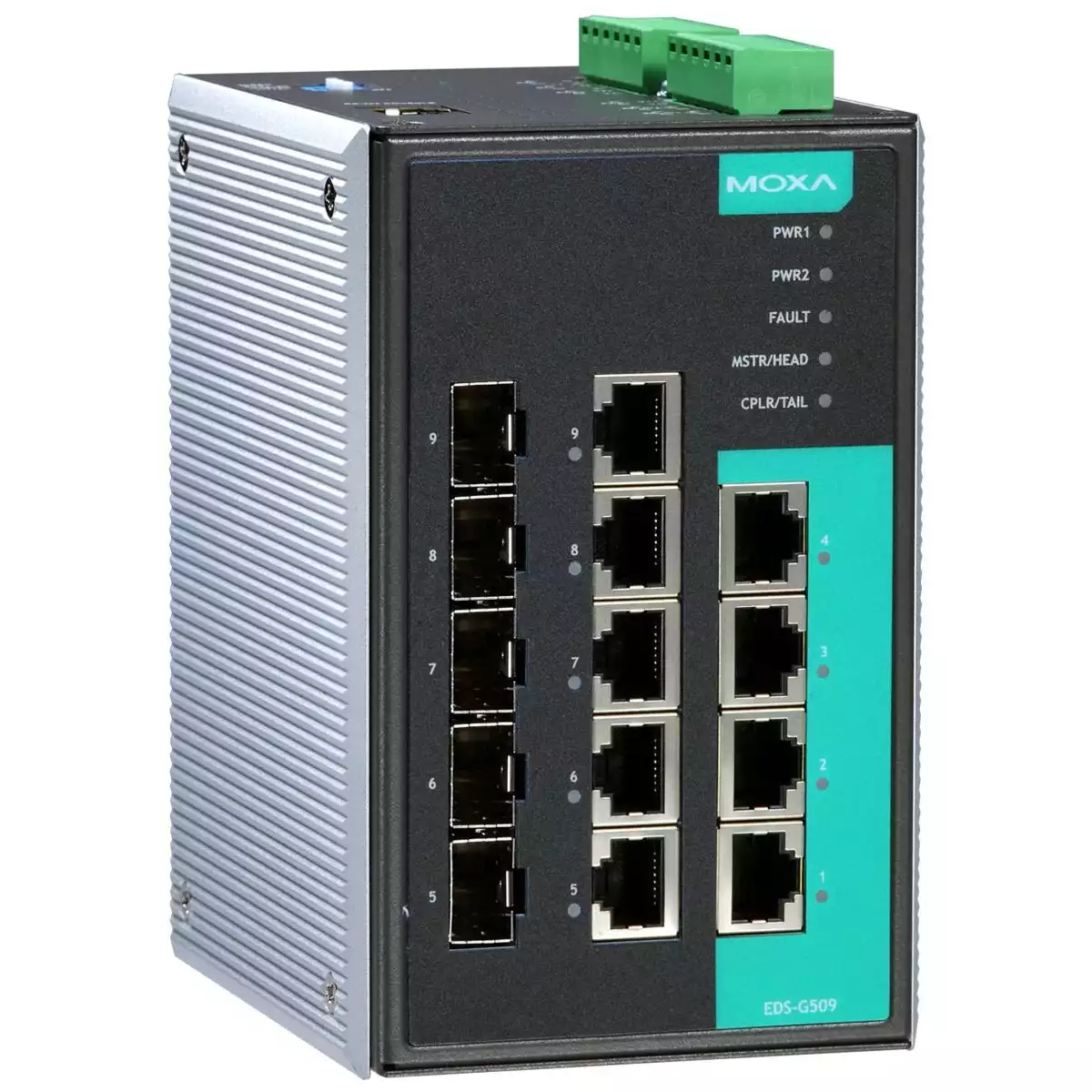

EDS-G509-T

4x 10/100/1000BaseT(X) Full Gbe switch, -40~85°C

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6280615 Produktové číslo: EDS-G509-T Kategorie: Výrobce: MOXA
Poptat produkt
• Industrial full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports, and 5 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports
• Command Line Interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
• Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
• Turbo Ring, Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management prevents unpredictable network status
• Lock port function for blocking unauthorized access based on MAC address
• Port mirroring for online debugging
• Automatic warning by exception through e-mail, relay output
• ABC-01 (Automatic Backup Configurator) for system configuration backup
• -40 to 85°C operating temperature

The EDS-G509 is equipped with 9 Gigabit Ethernet ports and up to 5 fiber optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of video, voice, and data across a network quickly. Redundant Ethernet Turbo Ring, Turbo Chain, and RSTP/STP increase system reliability and the availability of your network backbone. The EDS-G509 series is designed especially for communication demanding applications, such as video and process monitoring, shipbuilding, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
Výrobce

Moxa

Certifikace

Nespecifikováno

Gigabit Ethernet

Ano

Manažovatelné

Ano

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ano

Počet portů

9

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ano

SFP slot

Ano

Datasheet

Stáhnout datasheet:
