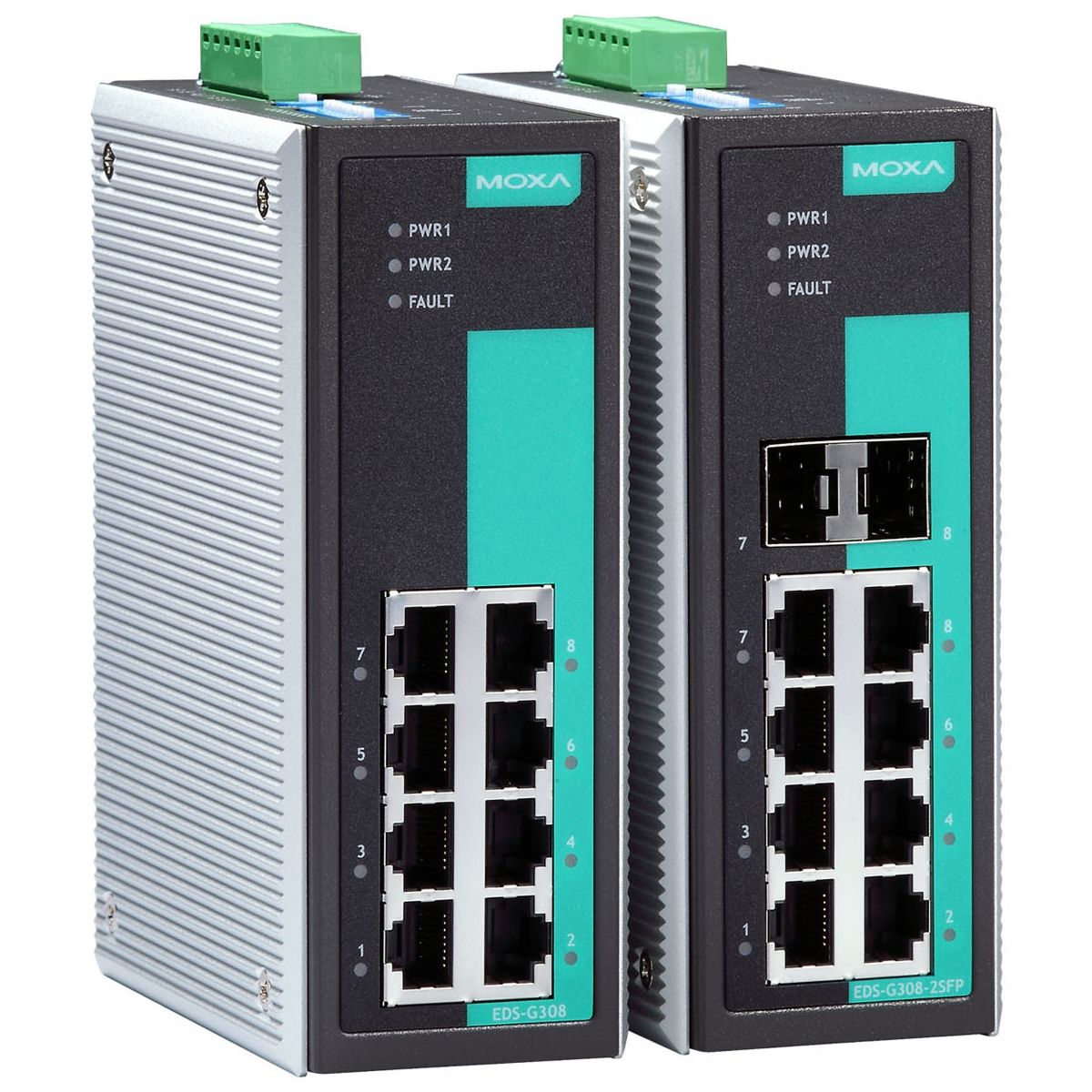

EDS-G308-2SFP-T
6x GbE + 2x 10/100/1000BaseT(X) / 1000Base,-40~75°
Pro zobrazení cen se prosím přihlaste.
• Unmanaged full Gigabit Ethernet switch with 6 10/100/1000BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules
• Fiber optic options for extending distance and electrical noise immunity
• Redundant dual 12/24/48 VDC power inputs
• Supports jumbo frame transmission up to 9.6 KB
• Relay output warning for power failure and port break alarm
• Broadcast storm protection
• operating temperature: -40 to 75°C
The EDS-G308 series are equipped with 8 Gigabit Ethernet ports and up to 2 fiber optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connection, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The EDS-G308 series includes 2 models: one with an operating temperature range of 0 to 60°C, and the other one with an extended operating temperature range of -40 to 75°C. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-G308 switches can be installed easily on a DIN-Rail or in distribution boxes.
• Fiber optic options for extending distance and electrical noise immunity
• Redundant dual 12/24/48 VDC power inputs
• Supports jumbo frame transmission up to 9.6 KB
• Relay output warning for power failure and port break alarm
• Broadcast storm protection
• operating temperature: -40 to 75°C
The EDS-G308 series are equipped with 8 Gigabit Ethernet ports and up to 2 fiber optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connection, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The EDS-G308 series includes 2 models: one with an operating temperature range of 0 to 60°C, and the other one with an extended operating temperature range of -40 to 75°C. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-G308 switches can be installed easily on a DIN-Rail or in distribution boxes.
Hmotnost | 0.2 kg |
---|---|
Výrobce | Moxa |
Certifikace | ATEX |
Gigabit Ethernet | Ano |
Manažovatelné | Ne |
Montáž do racku | Ne |
Montáž na DIN lištu | Ano |
Optický port | Ano |
Počet portů | 8 |
PoE | Ne |
Protokol | Ethernet |
Rozšířená provozní teplota | Ano |
SFP slot | Ano |
Datasheet
Stáhnout datasheet:
eds-g308-2sfp-t.pdf
