• Unmanaged full Gigabit Ethernet switch with 5 10/100/1000BaseT(X) ports• Redundant dual 12/24/48 VDC power inputs• Supports jumbo frame transmission up to 9.6 KB• Relay output warning for power failure and port break alarm• Broadcast storm protection• IP30 metal housing• Energy-saving design cuts power consumption by up to 82%• operating temperature: 0 to 60°C

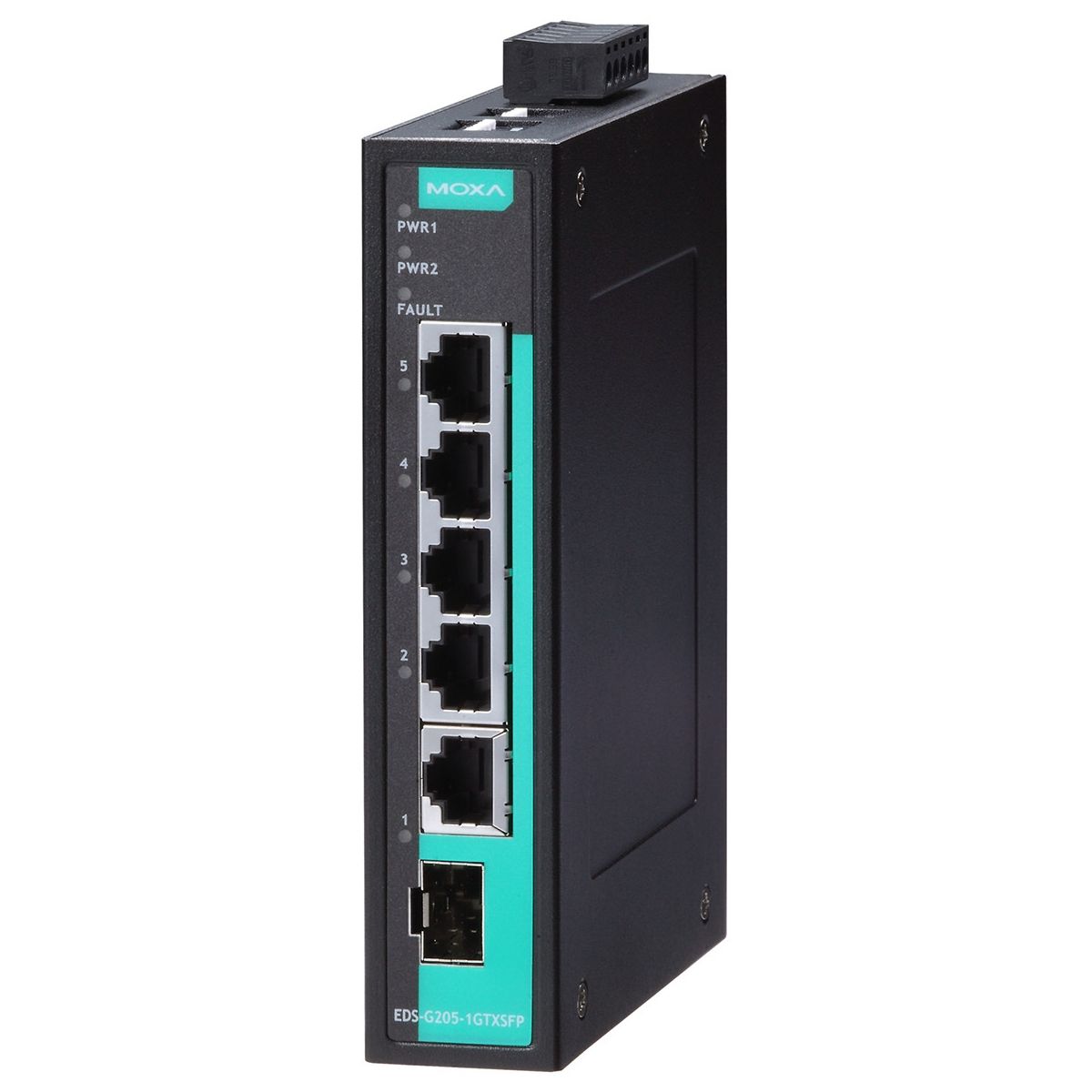

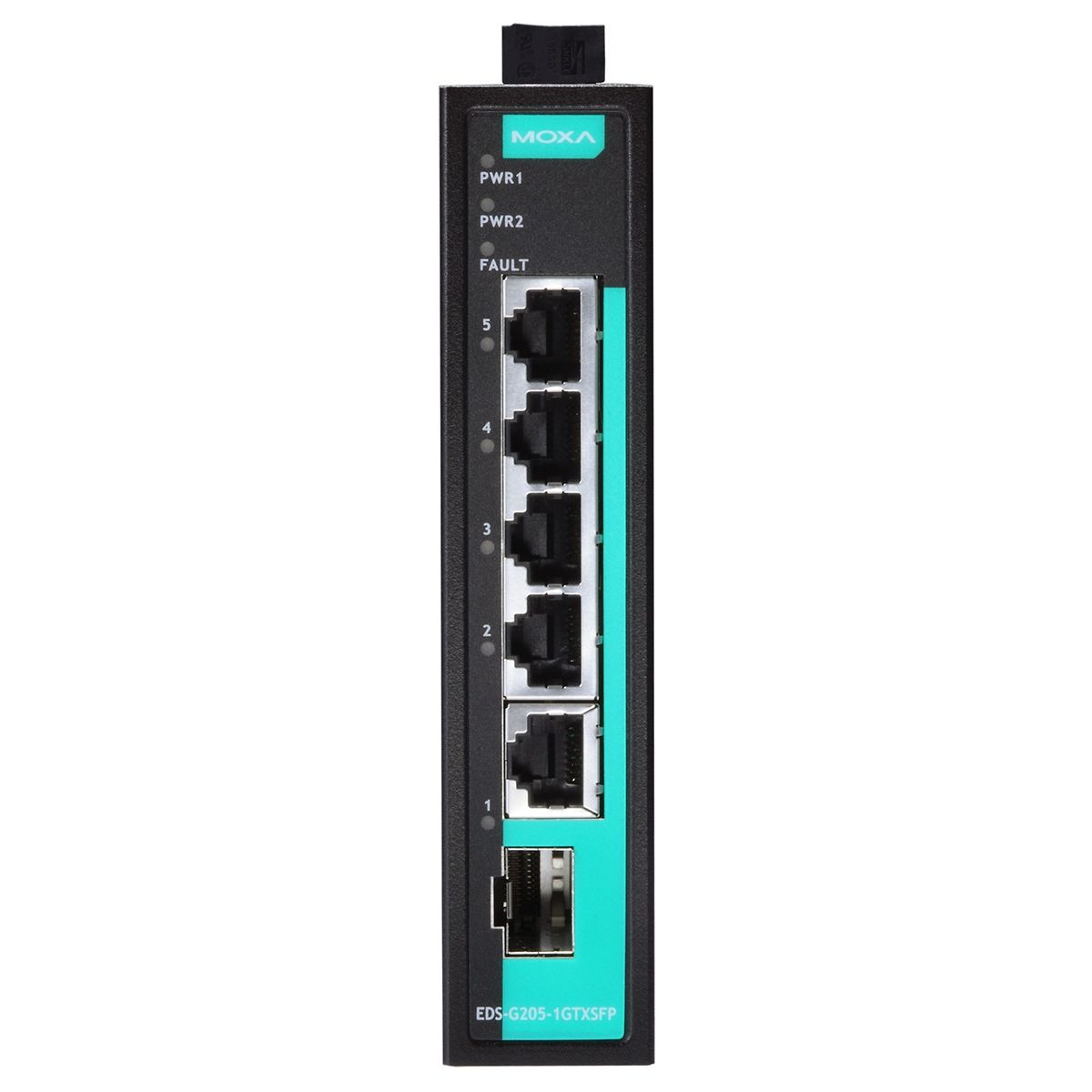

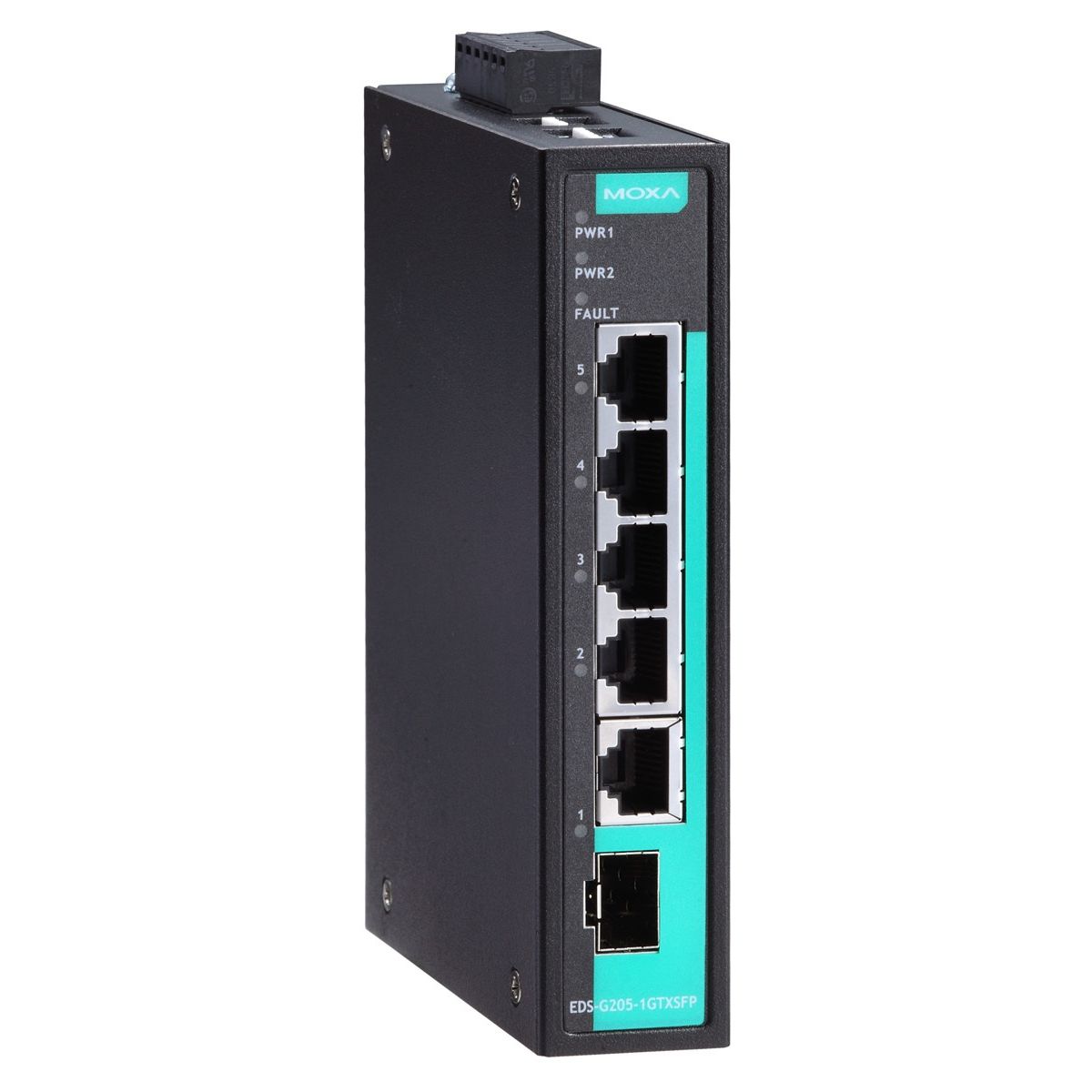

The EDS-G205-1GTXSFP switches are equipped with 5 Gigabit Ethernet ports, respectively, and up to 2 fiber optic ports (one for EDS-G205-1GTXSFP series and two for EDS-G308-2 SFP series), making them ideal for applications that demand high bandwidth. The EDS-G205-1GTXSFP/ switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. In addition, the add-on 4-pin DIP switches can be used for controlling over the functions of broadcast protection, jumbo frame, IEEE 802.3az energy saving and 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. Two models are available in this series. One model has an operating temperature range of -10 to 60°C, and the other model has an extended operating temperature range of -40 to 75°C. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-G205- 1GTXSFP switches can be installed easily on a DIN-rail or in distribution boxes.
