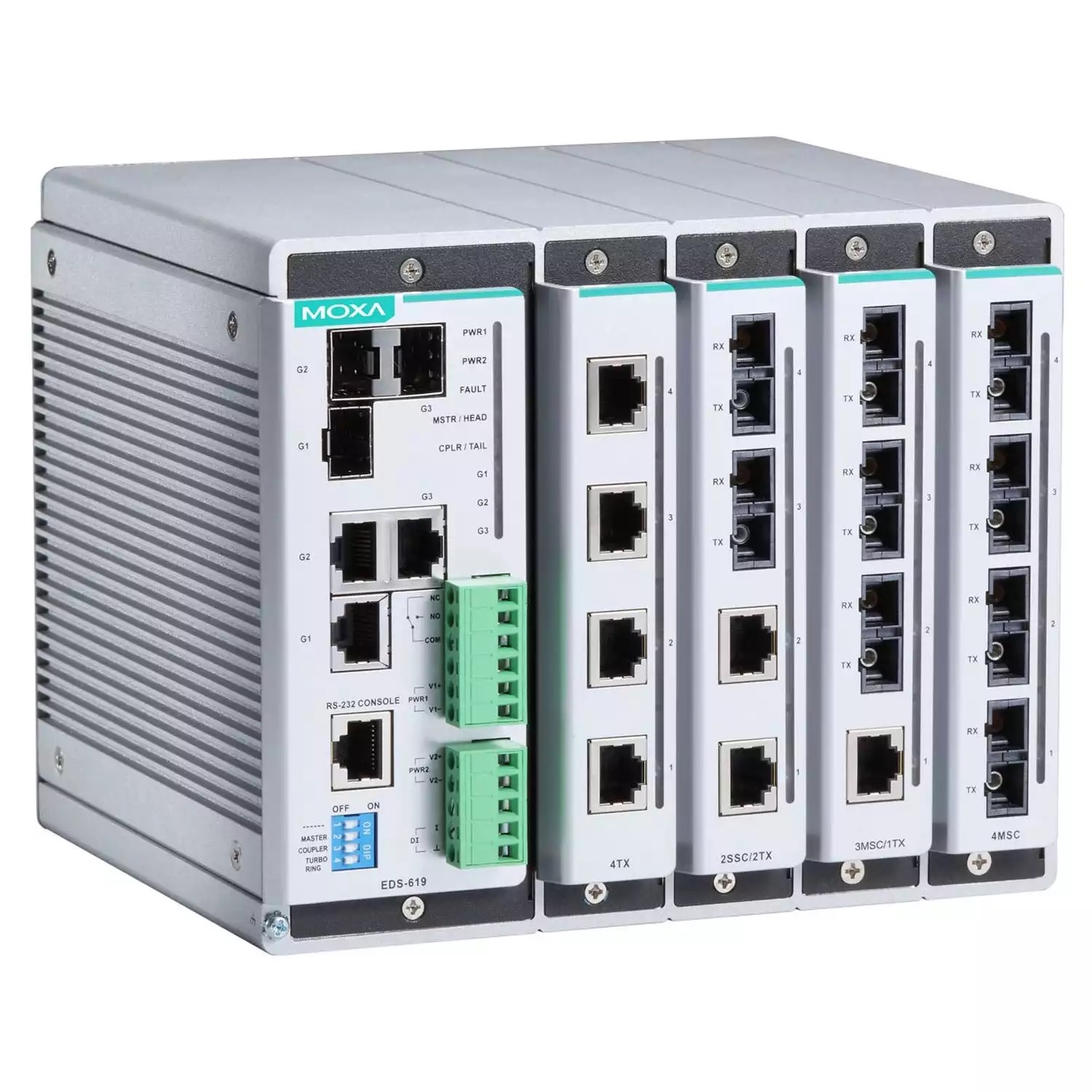

EDS-619

4-slot Ethernet Switch, up to 16+3G ports, 0~60°C

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6284110 Produktové číslo: EDS-619 Kategorie: Výrobce: MOXA
Poptat produkt
• Compact managed Ethernet switch system with 3 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, and 4 slots for 4-port fast Ethernet interface modules, for a total of up to 19 ports
• Hot swap media modules for continuous operation
• Turbo Ring and Turbo Chain (recovery time < 20 ms at full load), and RSTP/STP (IEEE 802.1w/D)
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• SNMP Inform for ensuring reliable event management
• LLDP for automated topology discovery
• DHCP Option 82 for IP address assignment with different policies
• IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
• Modbus/TCP industrial Ethernet protocols supported
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management prevents unpredictable network status
• Lock port function for blocking unauthorized access based on MAC address
• Port mirroring for online debugging
• Automatic warning by exception through e-mail, relay output
• Digital inputs to integrate sensors and alarms with IP networks
• operating temperature: 0 to 60°C

The versatile modular design of the compact EDS-600 series Ethernet switch allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-600’s modular design lets you install upto3 Gigabit Ethernet ports and 16 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, and RSTP/STP (IEEE 802.1w/D) helps increase the reliability and availability of your industrial Ethernet network. Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-600 series supports several reliable and intelligent functions, including IEEE 1588 PTP V2, Modbus/TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.
Výrobce

Moxa

Certifikace

ATEX

Gigabit Ethernet

Ano

Manažovatelné

Ano

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ano

Počet portů

19

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ne

SFP slot

Ano
