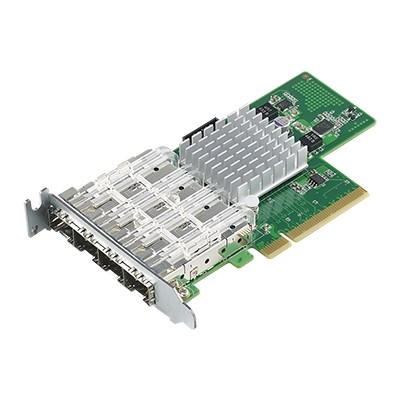

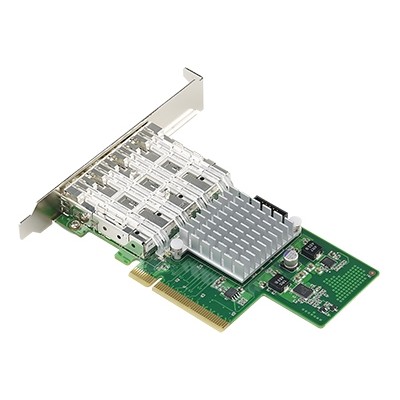

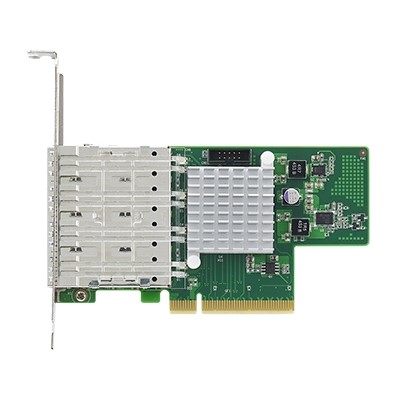

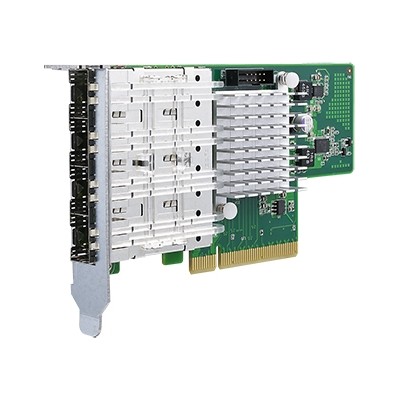

PCIE-2130NP-00A1E

4-ports 1G fiber NIC (SFP) w Intel I350-AM4

Pro zobrazení cen se prosím přihlaste.

Porovnat
Číslo zboží: GAX0003989 Produktové číslo: PCIE-2130NP-00A1EKategorie: Výrobce: Advantech
Poptat produkt
Quad Port Fiber Gigabit Ethernet PCI Express Server Adapter with Intel(R) I350

Advantech’s PCIE-2130 is a low-profile quad port Gigabit Ethernet PCI Express server adapter based on the Intel(R) Ethernet Controller I350-AM4. By supporting a PCI Express gen. 2 x4 host interface, this adapter provides sufficient bandwidth for line rate traffic on all Gigabit Ethernet ports. Four SFP ports can be configured to support a variety of optical transceivers such as single mode SX, multi mode LX optical as well as 1G Base-T copper modules. Improved support for virtualization, including VMDq and SR-IOV make the PCIE-2130 a perfect fit for virtualized environments and applications with network overlays. PCIE-2130 can be used to achieve high densities of network interfaces on servers and platforms for networking as well as industrial applications.

Vlastnosti:
  • 1 x Intel(R) Ethernet Controller I350-AM4
  • 4 x GbE SFP ports
  • PCIe gen. 2 x4 host interface
  • Supports multi-mode fiber (SX) and single mode fiber (LX) modules
  • Supports SR-IOV based virtualization
  • Low profile and full height form factors
Hmotnost0,08 kg
Rozměry174 × 144 × 53 mm
Výrobce

Advantech

Počet kanálů

4

Rozhraní

PCIe

Typ vstupů

Žádné

Typ výstupů

Žádné
