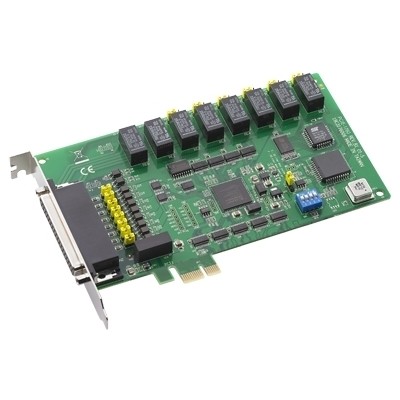

8-ch Relay & 8-ch IDI Universal PCIE Card

Pro zobrazení cen se prosím přihlaste.

- +
Číslo zboží: GA59121440 Produktové číslo: PCIE-1760-AEKategorie: Výrobce: Advantech
Poptat produkt
• 8-ch Relay and 8-ch Isolated Digital Input PCI Express Card with 10-ch Counter/Timer
• 8 opto-isolated digital input channels
• 8 relay actuator output channels
• 2 opto-isolated PWM outputs
• LED indicators to show activated relays
• Jumper selectable dry contact/wet contact input signals
• Up event counters for DI
• Programmable digital filter function for DI
• Pattern match interrupt function for DI
• „Change of state“ interrupt function for DI
• BoardID switch

PCIE-1760 relay actuator and isolated digital input card is a PC add-on card for the PCI Express bus. It meets the PCI Express standard Rev. 1.0. It provides 8 opto-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments, 8 relay actuators that can be used as a on/off control devices or small power switches, and 2 isolated PWM (Pulse Width Modulation) outputs for custom applications.

For easy monitoring, each relay is equipped with one red LED to show its on/off status. Each isolated input supports both dry contact and wet contact so that it can easily interface with other devices when no voltage is present in the external circuit.
Hmotnost0,1 kg
Rozměry227 × 159 × 40 mm


Počet kanálů




Typ vstupů

Digitální, Čítačové

Typ výstupů
