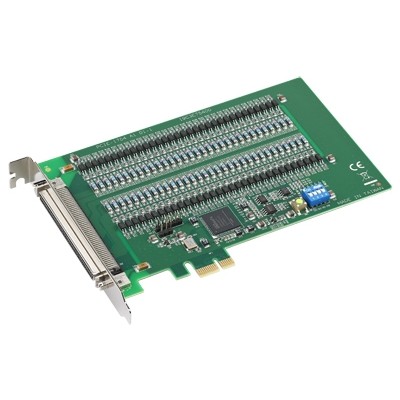

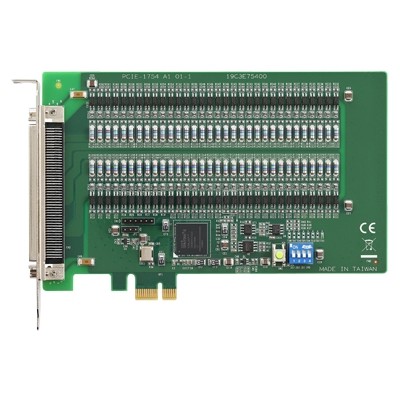

PCIE-1754-AE

64-ch Isolated Digital Input PCIe card

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GA59121420 Produktové číslo: PCIE-1754-AEKategorie: Výrobce: Advantech
Poptat produkt
• 64-ch Isolated Digital Input PCI Express Card
• Wide input range (10 ~ 30 VDC)
• Either +/- voltage input for DI by group
• High over-voltage protection (70 VDC)
• High-voltage isolation (2,500 VDC)
• Output status read-back
• Keeps the output settings and values after system hot reset
• Channel-freeze function

The Advantech PCIE-1752, PCIE-1754 and PCIE-1756 series products offer 64 isolated digital input and output channels with 2,500 VDC isolation protection. They feature a wide input range (10 ~ 30 VDC), wide output range (5 ~ 40 VDC) and high sink current (500mA max./channel) can make PCIE-1752/1754/1756 series products easily used in industrial automation control systems. With the help of the latest Advantech driver – DAQNavi, users can perform the configuration and setting easily and efficiently in the programming.
Hmotnost0,112 kg
Rozměry227 × 159 × 40 mm
Výrobce

Advantech

Počet kanálů

64

Rozhraní

PCIe

Typ vstupů

Digitální

Typ výstupů

Žádné

Datasheet

Stáhnout datasheet:
