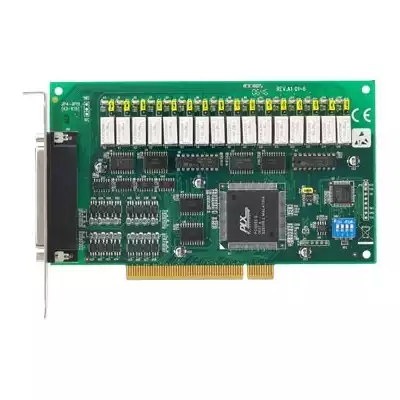

PCI-1762-BE

• 16-ch Relay and 16-ch Isolated Digital Input PCI Card
• 16 relay output channels and 16 isolated digital input channels
• LED indicators to show activated relays
• Jumper selectable Form A/Form B-type relay output channel
• Output status read-back
• Retain relay output values when hot system reset
• High-voltage isolation on input channels (2,500 VDC)
• High ESD protection (2,000 VDC)
• High over-voltage protection (70 VDC)
• Wide input range (10 ~ 50 VDC)
• Interrupt handling capability
• High-density DB-62 connector
• BoardID™ switch

The PCI-1762 relay actuator and isolated D/I card is a PC add-on card for the PCI bus. It provides 16 opto-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments, 16 relay actuators for serving as on/off control devices or small power switches. For easy monitoring, each relay is equipped with one red LED to show its on/off status. The PCI-1762’s sixteen optically-isolated digital input channels are ideal for digital input in noisy environments or with floating potentials.
