USB-4716-BE

200KS/s, 16-bit USB Muntifunction Module

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GAX0008312 Produktové číslo: USB-4716-BEKategorie: Výrobce: Advantech
Poptat produkt

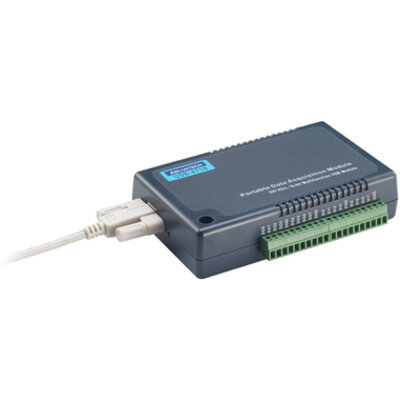

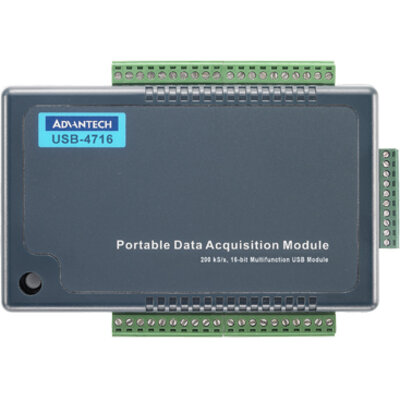

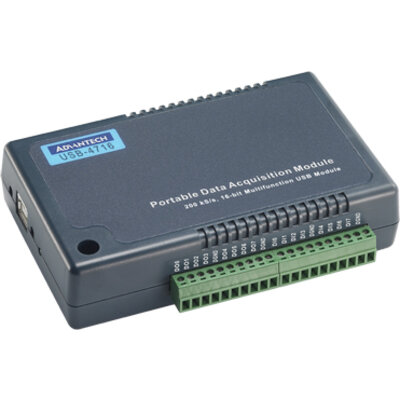

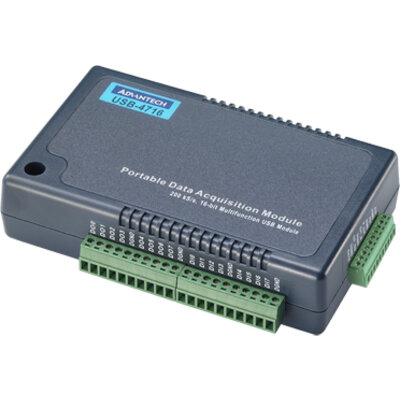

200 kS/s, 16-bit, 16-ch Multifunction USB Module

The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4716 offers 16 single-ended/ 8 differential inputs with 16-bit resolution, up to 200 kS/s throughput, 16 digital I/O lines and 1 user counter, add two 16-bit analog outputs. The high performance makes USB-4716 your best choice for test & measurement applications in the production line or in the lab.Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4716 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4700 series is fully plug & play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.

Vlastnosti:
  • Supports USB 3.0 SuperSpeed
  • Bus-powered
  • 16 analog input channels
  • 16-bit resolution AI
  • Sampling rate up to 200 kS/s
  • 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter
  • Detachable screw terminal on modules
  • Suitable for DIN-rail mounting
  • One lockable USB cable for secure connection included
  • Portable
Hmotnost0,4 kg
Rozměry263 × 165 × 63 mm
Výrobce

Advantech

Konektor vstupů

Svorkovnice

Konektor výstupů

Svorkovnice

Počet kanálů

16

Typ vstupů

Digitální

Typ výstupů

Analogové

Datasheet

Stáhnout datasheet:
