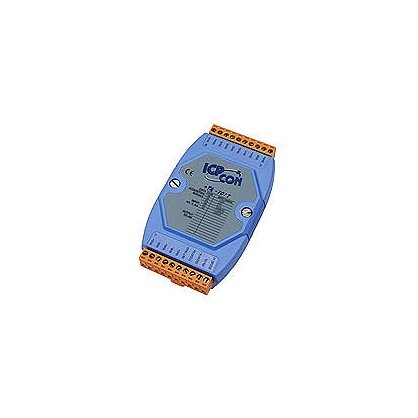

The I-7017 and I-7017F are analog input modules that provide either 8 differential input channels, or 6 differential input channels and 2 singleended input channels selectable via a jumper. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Îc resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The sampling rate of the I-7017F is adjustable, meaning that either fast mode or normal mode can be selected. The M-7017 supports both the Modbus RTU and DCON protocols, which can be configured via software, and provides 8 differential analog input channels. Other hardware specifications are the same as the I-7017.
Features:
- Interface: RS-485
- Protocol: DCON
- 8-channels analog inputs
- Voltage Input: +/-150mV, +/-500mV , +/-1V, +/-5V, +/-10V
- Current Input: 0~20mA, 4~20mA, +/-20mA (with external 125 ohm resistor)
- +/-35 VDC Overvoltage Protection
- Dual Watchdog
- DIN-Rail Mountable
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
+2 kV Contact for each Terminal |
| RS Immunity (IEC 61000-4-3) |
+4 kV for Power |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
6-channel Differential and 2-channel Single-ended, or 8-channel Differential. |
| Type |
Voltage
Current |
| Range |
+150 mV, +500 mV, +1V, +5 V, +10 V, +20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires optional external 125 ? resistor) |
| Resolution |
16-bit |
| Accuracy |
Normal Mode: 0.1% |
| Sampling Rate |
Normal Mode: 10 Hz |
| Input Impedance |
20 M? |
| Common Voltage Protection |
+15 VDC |
| Overvoltage Protection |
+120 VDC |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.3 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
