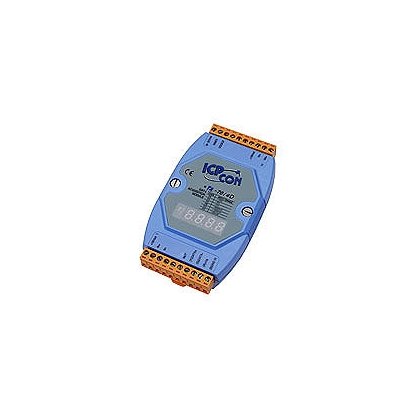

The I-7014 is an 1-channel Transmitter Input module that provides a +15 VDC isolated loop power supply for transmitter input, and is designed for both voltage and current input types. In addition, the module provides 1 Digital Input channel as a 50 Hz event counter and 2 Digital Output channels that can be used as a high/low alarm. The I-7014 also features 3000 VDC intra-module isolation.
Features:
- Current Input, Voltage and Transmitter Input
- High Resolution: 16-bit
- 50 Hz Event Counter for Digital Input
- High/Low Alarm for Digital Output
- 3000 VDC Intra-Module Isolation
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Display |
| Type |
5-Digit 7 Segment LED Display |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
+4 kV to Power Line |
| ESD (IEC 61000-4-2) |
+2 kV Contact for each Terminal |
| Surge (IEC 61000-4-5) |
+0.5 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
1 Differential |
| Type |
Voltage
Current |
| Range |
+150 mV, +500 mV, +1V, +5 V, +10 V, +20 mA |
| Resolution |
16-bit |
| Accuracy |
+0.05% |
| Sampling Rate |
10 Hz |
| Input Impedance |
Voltage: 30 k?
Current: 125 ? |
| Overvoltage Protection |
+15 VDC |
| Isolated Loop Power |
+15 VDC, 30 mA |
| Digital Input/Counter |
| Channels |
1 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source |
| Dry Contact, ON Voltage Level |
Close to GND |
| Dry Contact, OFF Voltage Level |
Open |
| Max. Counts |
Yes, 50 Hz, 16-bit |
| Input Impedance |
3 k? |
| Overvoltage Protection |
+30 VDC |
| Digital Output |
| Channels |
2 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ +30 VDC |
| Max. Load Current |
30 mA/Channel |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.9 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
