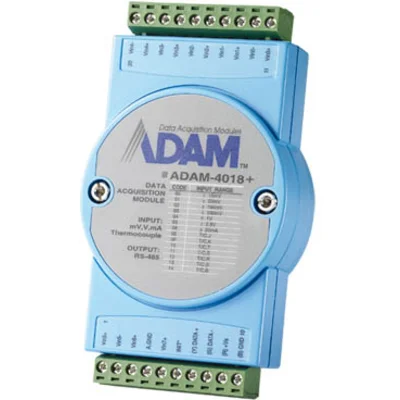

ADAM-4018+-F

8-Ch Thermocouple Input Module w/ Modbus

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GAX0008365 Produktové číslo: ADAM-4018+-FKategorie: Výrobce: Advantech
Poptat produkt
8Thermocouple Modbus RS-485 Remote I/O

The ADAM-4018+ is a 16-bit, 8-channel analog input module that provides programmable input ranges on all channels. These modules are an extremely cost-effective solution for industrial measurement and monitoring applications. 3000 VDC optical isolation between the analog input and the modules protects the modules and peripherals from damages caused by high input voltages.

Vlastnosti:
  • 8ch thermocouple(can be set to current)
  • Protocols:Modbus RTU,ASCII
  • Watchdog timer to recover the system
  • 3000VDC isolation protection
  • Wiring burned-out detection function
Hmotnost0,15 kg
Rozměry150 × 85 × 51 mm
Výrobce

Advantech

Konektor vstupů

Svorkovnice

Konektor výstupů

Svorkovnice

Počet kanálů

8

Typ vstupů

Analogové

Typ výstupů

Analogové

Datasheet

Stáhnout datasheet:
