IH7T-RK2U

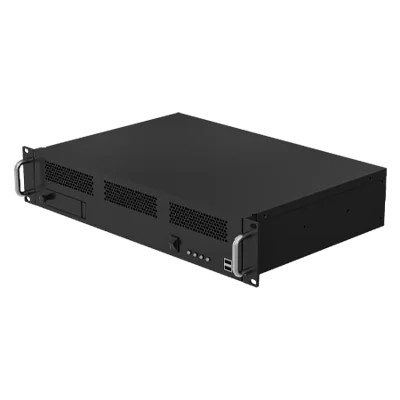

2U Fanless PC, Core i7-4700MQ

Pro zobrazení cen se prosím přihlaste.

Porovnat
Číslo zboží: GW50615200 Produktové číslo: IH7T-RK2UKategorie: Výrobce: Winmate
Poptat produkt

IH7T-RK2U Embedded Industrial Automation Controller, 2U Rack Server


Features

  • i7-4700MQ 2.4GHz Processor. Turbo max to 3.4GHz
  • Support Intel vPro, AMT 9.0 remote management
  • Support TPM 1.2 Function (Optional For TPM 2.0)
  • Two front 2.5″ SATAIII disk drive for RAID 0/1 support
  • Support 4 ports DI&DO for Hardware On/Off switch to active
    Alarm, lamp……and so on
  • Optional For Redundant Power Supply (By request)
  • Fanless, custom cooling system for i7 Server PC
  • IEC 61850-3, IEC60068-2-64, IEC 60068-2-2 compliant

  • System Specification

    Processori7-4700MQ 2.4GHz Processor.
    Turbo max to 3.4GHz
    BIOSAMI System BIOS
    System ChipsetIntel® QM87
    System MemorySupport Two 204-pin DDR3L-1600
    SO-DIMM SDRAM
    Up to 16GB
    Ethernet ControllerIntel® Ethernet Controller I210-IT +
    Intel® Gigabit Ethernet PHY I218-LM
    Watchdog Timer10 levels

    I/O Connectors

    Front Side I/O1 x Power On/Off
    1 x Reset Button
    2 x USB 2.0
    Back Side I/O1 x 3 Pin Acrylic Protect Connector for AC Input
    2 x PS/2 for Keyboard & Mouse
    3 x Serial Ports
    (1x RS232/422/485 Select by jumper)
    2 x 10/100/1000 Mbps Ethernet
    4 x USB 3.0
    1 x Mic in , Line out, Line in Jack
    2 x PCI Slot (Optional)
    GPS Ant. (Optional)

    Mechanical and Environment

    Dimensions (L x W)482.6mm x 88mm x 356mm (L x W x H)
    ConstructionElectroplated steel
    Power Input110V-240V DC/AC Input with €20% range

    Mechanical & Environment Specification

    Operating Temperature-10~60…C (Fanless Design)
    Operating Humidity10% to 90% (non condensing)

    Product Spec

    Storage
  • 2 x 2.5″ SATAIII HDD (up to 1TB) * or
  • 2 x 2.5″ SATAIII SSD (up to 512GB) *
    (Two 2.5″ SATAIII SSD or SSD storages are supporting RAID 0/1)
  • 1 x mSATA SSD 128GB (up to 256GB)
  • OSWindows 7 Pro for Embedded Systems 64bit
    Windows Embedded 8.1 Industry Pro 64bit
    Windows 10 IoT Enterprise
    Windows Server 2008 R2 SP1
    Windows Server 2012 R2

    Výrobce

    Winmate

    Procesor

    Core i7

    Datasheet

    Stáhnout datasheet:
