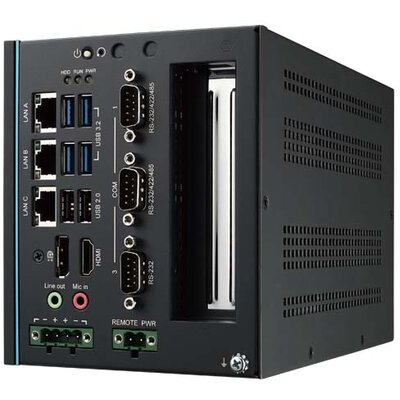

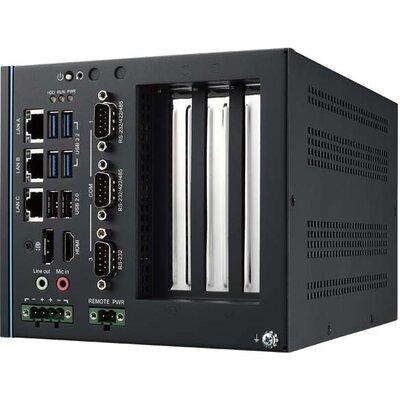

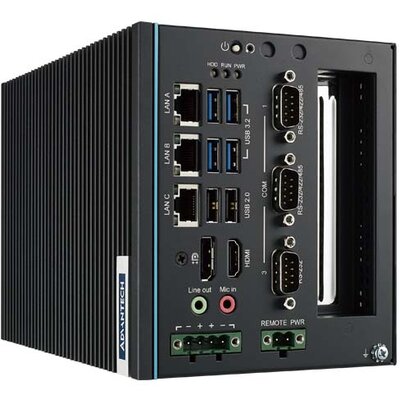

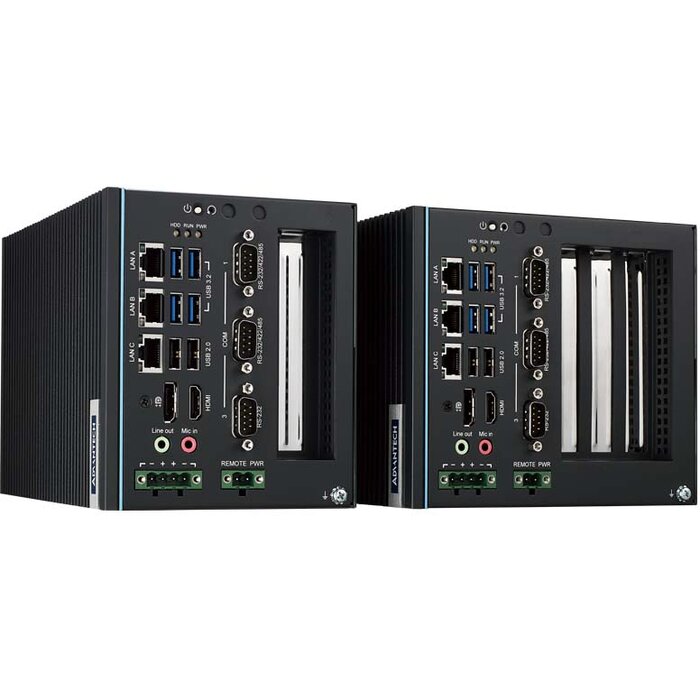

UNO-348-ANN3AW

W480, 3*COM, 6*USB, 3*LAN, 1*PCIex16, 1*PCIex4

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GAX0008880 Produktové číslo: UNO-348-ANN3AWKategorie: Výrobce: Advantech
Poptat produkt
Expandable Embedded Box IPC with 10th Gen Intel® CPU

UNO-348 is designed to deliver high-performance computing and maximum flexibility for industrial automation applications. In addition to dual power inputs that ensure a stable power supply, UNO-348 integrates with iBMC technology to support remote out-of-band (OOB) power management.

Vlastnosti:
  • Intel® 10th Gen socket type processor with DDR4 memory
  • Scalable CPU, RAM selection
  • Compact, rugged and fanless design for harsh embedded environment
  • Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe & 2 x 2.5" SSD
  • Optional iDoor expansion
  • Remote out-of-band (OOB) power management with AdvantechÔÇÖs iBMC technology
  • Built-in TPM2.0 for hardware-based security
Hmotnost4 kg
Rozměry240 × 178 × 60 mm
Výrobce

Advantech

DisplayPort

1

Gigabit LAN

3

HDMI

1

Počet rozšiřujících slotů

3

Procesor

Jiný

RS-232

1

RS-232/422/485 (kombinovaný)

2

USB 2.0

2

USB 3.0

4

Datasheet

Stáhnout datasheet:
