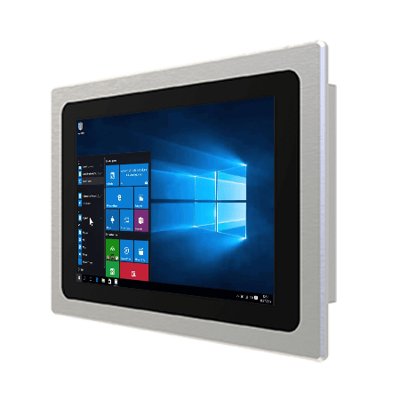

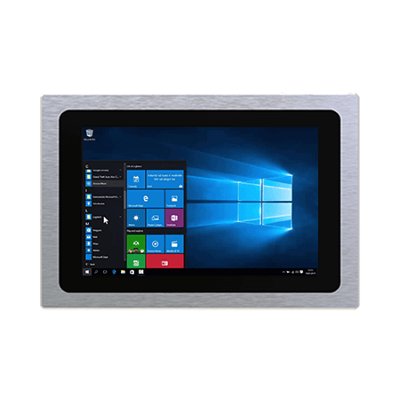

10.1" Intel® Celeron® N2930 PP Series HMI Panel PC
Vlastnosti:
- 10.1” 1280 x 800 Resolution
- PCAP multi-touch screen
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
Display
Resolution | 1280×800 |
Size | 10.1 inches |
Contrast Ratio | 800:1 |
Panel Brightness | 350 nits |
View Angles | 85,85,85,85 |
Active Area | 216.96×135.6 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
Storage | 1 x mSATA SSD 128GB. mSATA SSD up to 512GB. (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
WLAN | Support (Optional) |
BT | Support (Optional) |
Mechanical
Dimension | 295 x 200 x 53 mm |
Mounting | Panel mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Cut out | 240 x 165mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12V DC, 2.5φ DC jack |
USB Port | 1 x USB3.2 Gen1x1 (Type-A) 1 x USB2.0 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
Video | 1 x HDMI 1.4 (Optional) |
Audio | 2 x Speaker |
Expansion Port | 1 x mPCIe slot(for half size Wifi module) |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Brightness Knob | 1 x Brightness Adjustment Knob |
mini PCIe | 1 x Mini PCIE(For WLAN) |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
Power Rating | 12V DC |
Adapter | 12V 50W |
