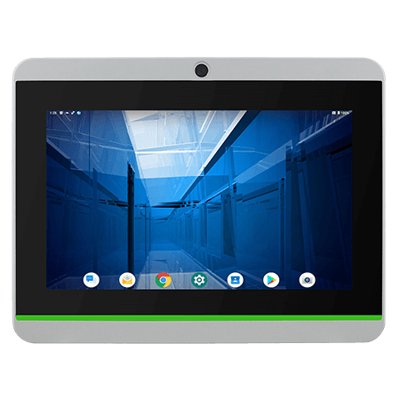

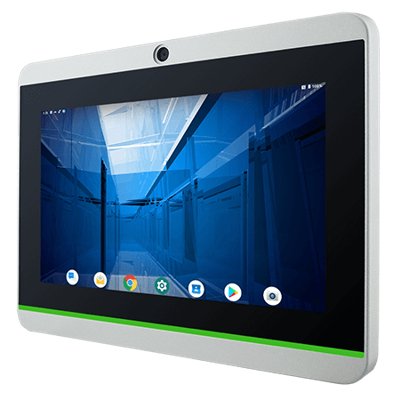

7" Qualcomm Snapdragon™ 660 S Series HMI Panel PC
Vlastnosti:
- 7” 1024 x 600 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- Fanless cooling system and ultralow power consumption
- Support PoE function
- Optional 2MP Front Camera
- Optional HF RFID Reader
- Stylish design for room booking, access control, and room information applications
- Front IP65 Water and Dust Proof
- Built-in RGB LED Light Bar Indicator
Display
Resolution | 1024×600 |
Size | 7 inches |
Contrast Ratio | 700:1 |
Panel Brightness | 1000 |
View Angles | 75,75,75,70 |
Active Area | 153.6×90 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
RFID | HF RFID Reader 13.56 MHz (Optional) |
Light Bar | Built-in RGB LED Status Light Bar, on both sides |
Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
Memory | 3GB LPDDR4 |
Storage | 32GB eMMC |
Operating System | Android 9.0 |
Mechanical
Dimension | 189.4 x 145.4 x 36.1 mm |

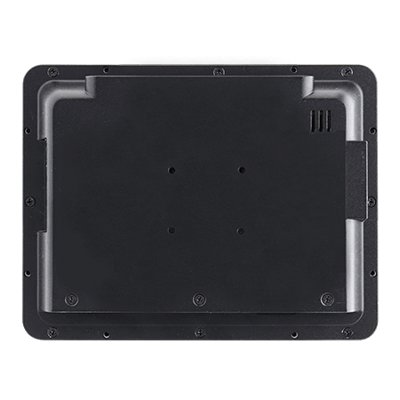

Mounting | Panel mount VESA Mount |
Enclosure | Aluminum |
Cooling System | Fanless design |
Cut out | 175.5×131.5mm |
Environment
Operating Humidity | 10% to 90% (Non-Condensing) |
Operating Temperature | 0~50°C |
Storage Temperature | -20~60°C |
Shock | MIL-STD-810G Method 516.6 |
Vibration | MIL-STD-810G Method 514.6 |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C) |
Serial Port | 1 x RS232/422/485 (Default RS232) |
SD Card Slot | 1 x Micro SD card slot |
Video | 1 x Micro HDMI (Optional) |
Audio | 1 x Speaker |
LAN | 1 x LAN PoE at/af |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block connector Manual VESA screws |
Power
Power Rating | 12V DC with Terminal Block |
Adapter | 12V 50W |
POE | PoE (PD): follows IEEE 802.3at (25 W) |
Camera
Front Camera | 2MP Camera (Optional) |
