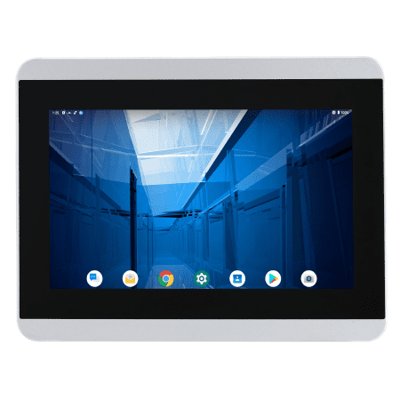

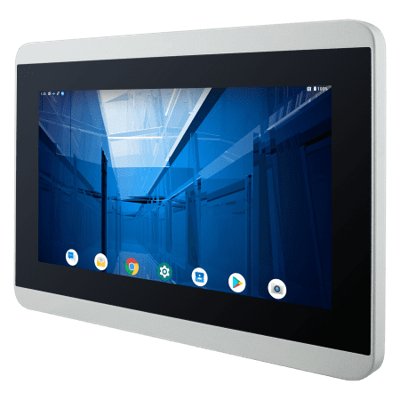

7" ARM A53 G-WIN GS-Series Full IP65 PCAP Panel PC
Vlastnosti:
- 7” 1024 x 600 with PCAP touchscreen
- ARM A53 Quad Core 2.0GHz
- Fanless cooling system and Ultralow power consumption
- Full IP65
- Onboard 32GB eMMC
- Onboard LPDDR4 4GB
- 1 x LAN, 1 x RS232, 1 x USB, 1 x Micro USB, 1 x Micro SD
- Support Android or Linux operating system
Display
| Resolution | 1024×600 |
| Size | 7 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | ARM A53 Quad Core 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | 32GB eMMC |
| Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu (in 2023) (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15°C~55°C |
| Storage Temperature | -30°C~60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | Full IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 X USB 2.0 (M12 type) 1 X Micro USB |
| Serial Port | 1 x RS232 (M12 type)(Optional 422/485) |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| Audio | 1 x Speaker |
| LAN | 1 x LAN 10/100/1000 Mbps (M12 type) |
Mechanical
| Dimension | 189.4 x 145.4 x 39.8 mm |
| Mounting | Panel Mount VESA Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
Power
| Power Rating | 9V~24V DC (M12 type) |
Accessory
| Accessory | Quick Start Guide (Hardcopy) M12 Power Cable M12 Serial Interface Cable M12 USB/ LAN Cable I/O Protective Cap x 3 |
