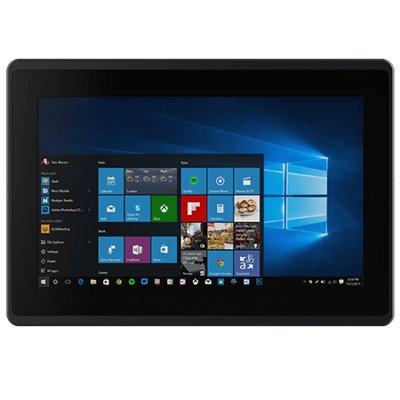

7" Intel® Celeron® N6211 E Series HMI Panel PC
Vlastnosti:
- 7” 1024 x 600 Resolution with PCAP touchscreen
- Intel® Celeron® N6211 Processor 1.5M Cache, up to 3.0 GHz
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel® Celeron® N6211 (1.5M Cache, up to 2.6GHz) Intel® Celeron® N6210 (1.5M Cache, up to 3.0GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 185 x 128 x 56 mm |

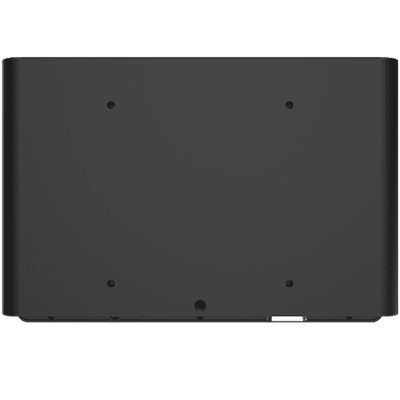

| Mounting | Panel mount VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Cut out | 174.9 x 117.7 mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 2 x M.2 slot(1 for WiFi, 1 for SSD) |
| LAN | 2 x Giga LAN RJ45 Connector |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
| Power Rating | 12V DC |
| Adapter | 12V 50W |
