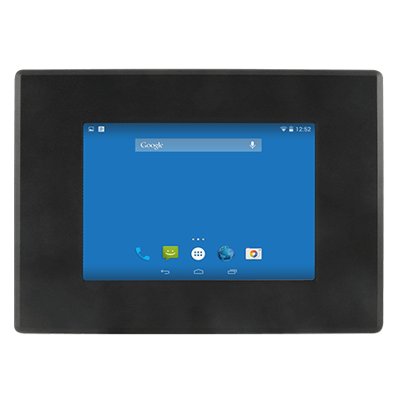

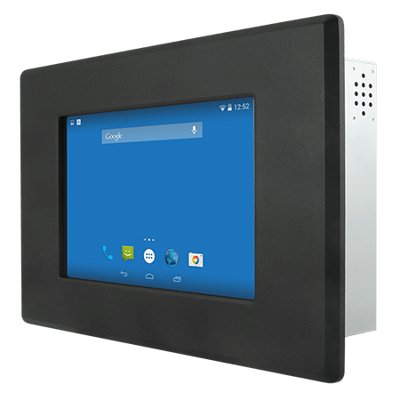

W07FA3S-IPT1

7" NXP i.MX6 Front IP65 Panel PC

Cena na dotaz

Dostupnost: Na objednávku (skladem u dodavatele)

Číslo zboží:GWX0000143 Produktové číslo: W07FA3S-IPT1 Kategorie:S úhlopříčkou do 12'', S úhlopříčkou do 13''Výrobce:

Poptat produkt

7" NXP i.MX6 Front IP65 Panel PC

Vlastnosti:

7" 1024 x 600 TFT LCD with resistive touch screen
NXP i.MX6 Dual Core 1 GHz (Optional Quad Core)
Front IP65 protection
Onboard LPDDR3 1 GB (Optional 2 GB)
Onboard 16 GB eMMC Flash
1 x USB 2.0, 1 x RS-232/422/485, 1 x Micro SD Slot, 1 x Mini USB, 1 x Micro HDMI (Optional)
PoE function (Optional)
Fanless and ultra-low power consumption

System Specification

Processor	NXP i.MX6 Dual Core, 1.0GHz
Memory	1GB 2GB (Optional)
Storage	eMMC: Onboard 16 GB eMMC: Onboard 32 GB (Optional)
Operating System	Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional)
WLAN	Support (Optional)
BT	Support (Optional)

Display

Resolution	1024×600
Size	7 inches
Contrast Ratio	1000:1
Panel Brightness	320 nits
View Angles	75,75,75,70
Active Area	153.6×90 mm
Touch / Glass	Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)

Mechanical

Environment

Certification

Certification

CE, FCC

IO Ports

Power Input	1 x 12V DC, 2-Pin Terminal Block
USB Port	1 x Console Port (Mini USB) 1 x USB OTG 1 x USB2.0 (Type-A)
Serial Port	1 x RS232/422/485 (Default RS232)
SD Card Slot	1 x Micro SD card slot
Video	1 x Micro HDMI (Optional)
Audio	2 x Speaker
Expansion Port	1 x mPCIe slot(for half size Wifi module)
LAN	1 x LAN RJ45 Connector with PoE(PD, 802.3 at)
CANBUS	1 x CANBUS, D-sub9

Accessory

Accessory

100~240V AC to DC Adapter
Power Cord
VESA screws
Mounting clips

Power
