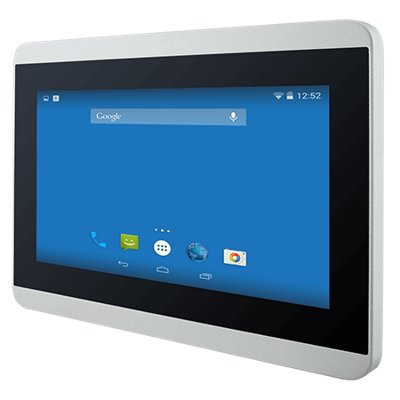

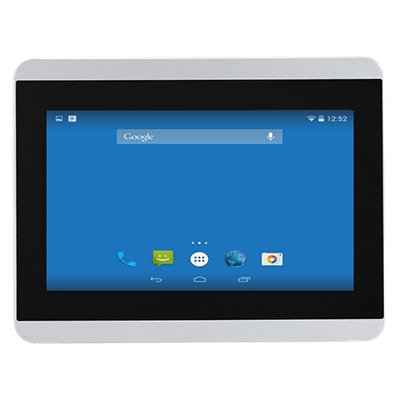

7" G-WIN GS-Series Full IP65 PCAP Panel PC with NXP i.MX6
Vlastnosti:
- 7” 1024 x 600 PCAP touchscreen Full IP65 PCAP Panel PC
- NXP i.MX6 Dual Core 1GHz
- Fanless cooling system
- Ultra-low power consumption
- Full IP65 PCAP Panel PC
Display
| Resolution | 1024×600 |
| Size | 7 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15~55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | IP65, Dustproof and Waterproof |
Certification
| Certification | CE, FCC Compliant with MIL-STD-810F/G for vibration / shock |
IO Ports
| USB Port | 1 X USB 2.0 (M12 type) |
| Serial Port | 1 x RS232 (M12 type)(Optional 422/485) |
| SD Card Slot | 1 x Micro SD Card Slot |
| Audio | 1 x Speaker |
| LAN | 1 x LAN-10/100/1000 (M12 type) |
Mechanical
| Dimension | 184.6 x 145.4 x 39.8 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
Power
| Power Rating | 9V-24V DC (M12 type) |
Accessory
| Accessory | Quick Start Guide (Hardcopy) Driver CD & User Manual M12 Power Cable M12 Serial Interface Cable M12 USB/ LAN Cable I/O Protective Cap x 3 |
