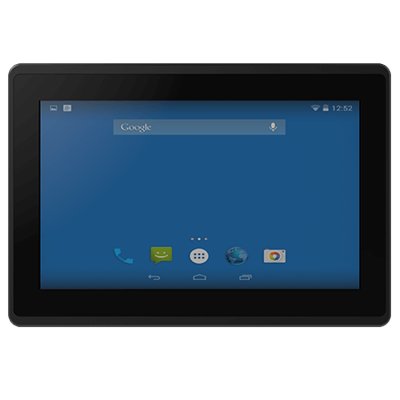

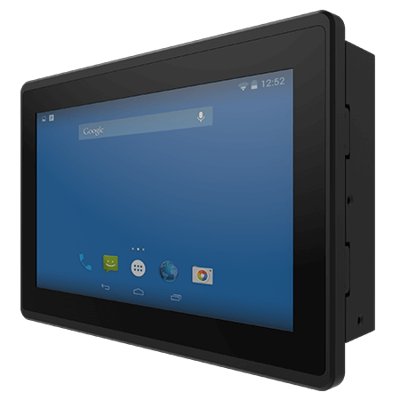

7" NXP i.MX6 E Series HMI Panel PC
Vlastnosti:
- 7” 1024 x 600 PCAP touchscreen
- NXP i.MX6 Dual Core
- Fanless cooling system
- Front IP65
- 1 x USB ; 1 x RS232 /422/485; 1 x CAN BUS
Display
Resolution | 1024×600 |
Size | 7 inches |
Contrast Ratio | 700:1 |
Panel Brightness | 1000 nits |
View Angles | 75,75,75,70 |
Active Area | 153.6×90 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
Processor | NXP i.MX6 Dual Core, 1.0GHz |
Memory | 1GB 2GB (Optional) |
Storage | eMMC: Onboard 16 GB eMMC: Onboard 32 GB (Optional) |
Operating System | Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional) |
Mechanical
Dimension | 185 x 128 x 56 mm |
Mounting | Panel mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Cut out | 174.9 x 117.7 mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12V DC, 2-Pin Terminal Block |
USB Port | 1 x Console Port (Mini USB) 1 x USB OTG 1 x USB2.0 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) |
SD Card Slot | 1 x Micro SD card slot |
Video | 1 x Micro HDMI (Optional) |
Expansion Port | 1 x mPCIe slot(for half size Wifi module) |
LAN | 1 x LAN RJ45 Connector with PoE(PD, 802.3 at) |
CANBUS | 1 x CANBUS, D-sub9 |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
Power Rating | 12V DC |
Adapter | 12V 50W |
