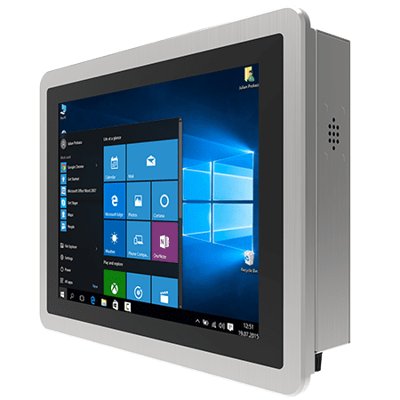

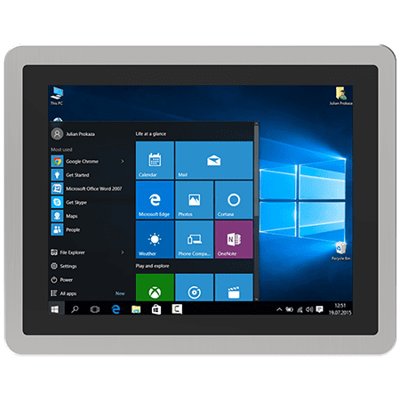

12.1" Intel® Core™ i5-1135G7 PP Series HMI Panel PC
Vlastnosti:
- 12.1” LCD with projective capacitive multi-touch screen
- Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2GHz)
- Fanless cooling system and ultra-low power
- Front IP65 water and dust proof
- Aluminum housing and fanless design
- Room booking schedule, access control, room information display
Display
Resolution | 1024×768 |
Size | 12.1 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 500.0 nits |
View Angles | 89,89,89,89 |
Active Area | 245.76×184.32 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
Storage | 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB(for NVMe) (Optional) 2TB(for NVMe) (Optional) 4TB(for NVMe) (Optional) 1 x SATA III , up to 2TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
Dimension | 322 x 256 x 74 mm |
Mounting | Panel mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Cut out | 302 x 237mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12V DC, 2.5φ DC jack |
USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
Video | 1 x HDMI 2.0 (Optional) |
Audio | 2 x Speaker |
Expansion Port | 1 x M.2 2242/2280 Key M slot for SATA/NVMe SSD 1 x M.2 2230 Key E slot for WiFi (Optional) |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Brightness Knob | 1 x Brightness Adjustment Knob |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
Power Rating | 12V DC |
Adapter | 12V 120W |
