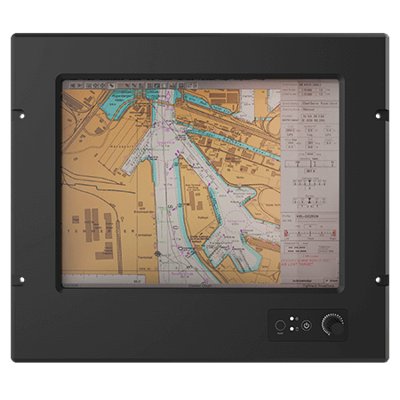

12.1" Intel® Core™ i7-1165G7 Marine Panel PC
Vlastnosti:
- Intel® Core™ i7-1165G7 processor marine panel PC
- Dimming knob control backlight brightness from nearly 0% to 100%
- 9~36V DC power input acceptable
- Panel (flush) mount IP66 aluminum housing with powder coating design
Display
Resolution | 1024×768 |
Size | 12.1 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 500 nits |
View Angles | 89,89,89,89 |
Active Area | 245.76×184.32 mm |
Touch / Glass | Resistive Touch Screen AR Glass (Optional) |
System Specification
Processor | Intel Core i7-1165G7 2.8GHz (up to 4.7GHz) |
Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Windows 11 IoT Enterprise SAC (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
Operating Humidity | 5% to 95% |
Operating Temperature | -15~55°C |
Shock | 15G,11ms duration |
Vibration | 0.7g@DNVGL CG-0339 (Class A) |
IP rating | IP66 (Front Side) |
Certification
Certification | CE, FCC |
Mechanical
Dimension | 336 x 293.2 x 50 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Cut out | 307 x 253mm |
IO Ports
USB Port | 2 x USB 3.0 |
Serial Port | 1 x RS232 2 x RS232 or 2 x Isolation RS422/485 (Optional) |
Video | 1 x VGA 1 x HDMI (Optional) |
LAN | 2 x RJ45-10/100/1000 Mbps |
Accessory
Accessory | Driver CD & User Manual 4 x M6 Black Screw Bolt with M6 Nut 1 x AC Adapter12V/ 84W 1 x Power Cord |
Power
Power Rating | 24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable |
Consumption | 55W (Typical) |
Control
Button | 1 x Power Button 1 x Reset Button 1 x The Dimming Knob |
