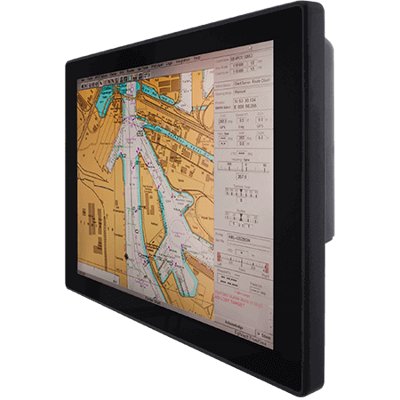

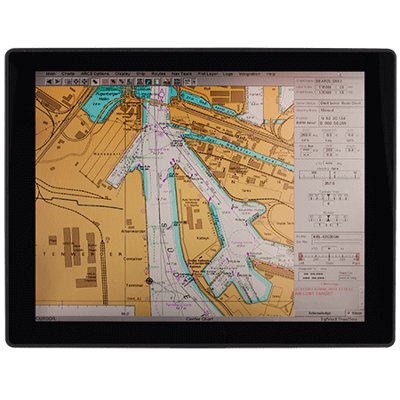

12.1” Intel® Pentium® N6415 Marine Dashboard Panel PC
Vlastnosti:
- Intel® Elkhart Lake Pentium® N6415 processor dashboard panel PC
- 12.1” 1024 x 768 wide viewing angle with PCAP touch
- 9~36V DC Power input acceptable
Display
Touch / Glass | Projected Capacitive Multi Touch Screen |
Resolution | 1024×768 |
Size | 12.1 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 500 nits 1000 nits(Optional) |
View Angles | 89,89,89,89 |
Active Area | 245.76×184.32 mm |
System Specification
Processor | Intel®Pentium® N6415 (1.5M Cache, up to 3.0GHz) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 256GB 512GB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
Operating Humidity | 5% to 95% |
Operating Temperature | -15~55°C |
Shock | 15G,11ms duration |
IP rating | IP66 (Front Side) |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
Serial Port | 2 x RS232(Default)/422/485 |
Video | 1 x HDMI 2.0 (Optional) |
LAN | 2 x RJ45-10/100/1000 Mbps |
Mechanical
Dimension | 296.2 x 226.7 x 45.5 mm |
Weight | 2.3 kg |
Mounting | VESA Mount |
Enclosure | Metal |
Cooling System | Fanless Design |
Accessory
Accessory | Driver CD & User Manual AC to DC Adapter 12V/ 50W Power Cord 3 pin Terminal Block to DC Jack |
Power
Power Rating | 24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable |
