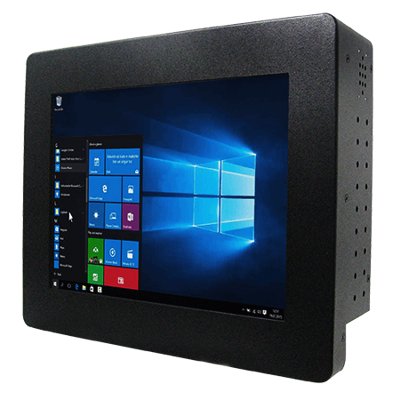

10.4" Intel® Celeron® N2930 Chassis Wide Temperature Panel PC
Vlastnosti:
- Intel® Pentium® N4200 Apollo Lake Processor 1.10 GHz
- Flexible storage devices, one 2.5-inch HDD and one SSD socket
- Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports
- 12 V DC Power input
- DP Support 4096 x 2160 @ 60 Hz
- HDMI Support 3840 x 2160 @ 30 Hz
Display
| Resolution | 800×600 |
| Size | 10.4 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 400 nits |
| View Angles | 80,80,70,60 |
| Active Area | 211.2×158.4 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) |
System Specification
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 2 x SODIMM, DDR3L 1866 MHz, 4GB 8GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB M.2 2242 SSD up to 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Environment
| Operating Humidity | 30% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -25°C to 65°C |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, Din4 pin connector |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
| Video | 1 x DP1.2 1 x HDMI 1.4 (Optional) 1 x VGA (Optional) |
| Audio | 1 x Mic in 1 x Line out 2 x Speaker |
| Expansion Port | 2 x M.2 slot(1 for WiFi, 1 for SSD) 1 x PCIe 2.0 x1 (Optional) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws |
Power
| Power Rating | 12V DC |
| Adapter | 12V 50W |
