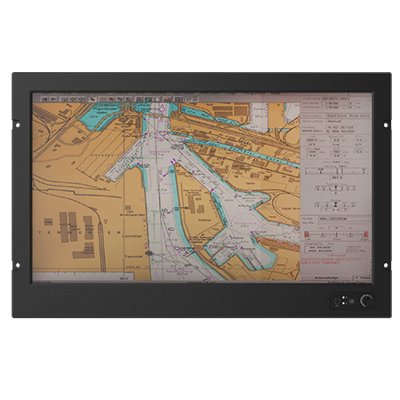

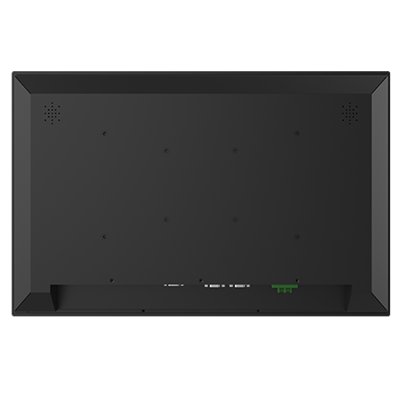

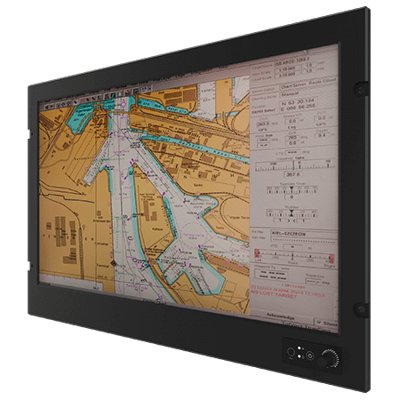

24" Intel® Core™ i7-1165G7 Marine Panel PC
Vlastnosti:
- Intel® Core™ i7-1165G7 processor marine panel PC
- Dimming knob control backlight brightness from nearly 0% to 100%
- 9~36V DC power input acceptable
- Panel (flush) mount IP66 aluminum housing with powder coating design
Display
| Resolution | 1920×1080 |
| Size | 24.0 inches |
| Contrast Ratio | 5000:1 |
| Panel Brightness | 300.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 531.36×298.89 mm |
| Touch / Glass | Resistive Touch Screen AR Glass (Optional) |
System Specification
| Processor | Intel Core i7-1165G7 2.8GHz (up to 4.7GHz) |
| Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2280 NVMe SSD, 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Windows 11 IoT Enterprise SAC (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNVGL CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232, 4 x RS232 or 4 x Isolation RS422/485 (Optional) |
| Video | 1 x VGA 1 x HDMI (Optional) |
| LAN | 2 x RJ45-10/100/1000 Mbps |
Mechanical
| Dimension | 593 x 356.7 x 62.7 mm |
| Weight | 10.3 kg |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Cut out | 566 x 362 mm |
Accessory
| Accessory | Driver CD & User Manual 4 x M6 Black Screw Bolt with M6 Nut 1 x AC Adapter12V/ 84W 1 x Power Cord |
Power
| Power Rating | 9~36V DC Input Acceptable |
| Consumption | 70W (Typical) |
Control
| Button | 1 x Power Button 1 x Reset Button 1 x The Dimming Knob |
