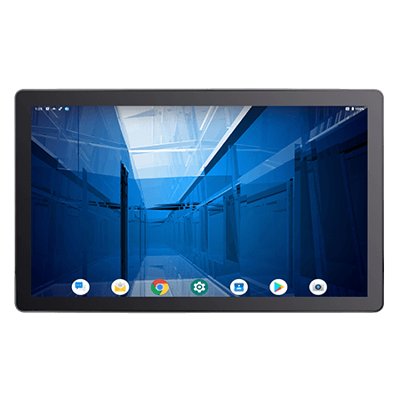

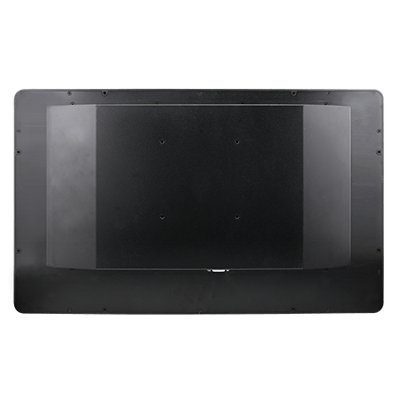

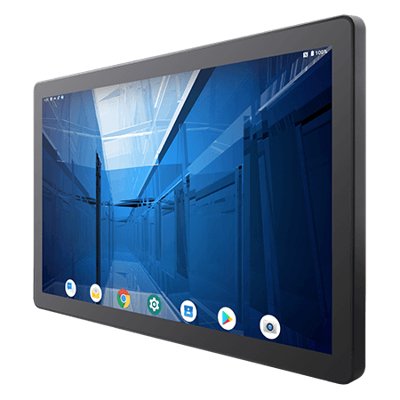

23.8" Qualcomm® Snapdragon™ 660 G-WIN GC-Series Front IP65 PCAP Panel PC
Vlastnosti:
- Qualcomm® Snapdragon™ 660 octa-core, 2.2 GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/O, including 1 x USB 3.0 OTG, 2 x USB 2.0; 1 x RS232/422/485; 1 x RJ45; 1 x Micro SD Slot; 1 x Micro HDMI (Optional);
System Specification
Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
Memory | 3GB LPDDR4 |
Storage | 32GB eMMC |
Operating System | Android 9.0 |
WLAN | Support (Optional) |
BT | Support (Optional) |
Display
Resolution | 1920×1080 |
Size | 23.8 inches |
Contrast Ratio | 3000:1 |
Panel Brightness | 250 |
View Angles | 89,89,89,89 |
Active Area | 527.04×296.46 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
IO Ports
USB Port | 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C) |
Serial Port | 1 x RS232/422/485 (Default RS232) |
SD Card Slot | 1 x Micro SD Card Slot |
Video | 1 x Micro HDMI (Optional) |
LAN | 1 x LAN |
Certification
Certification | CE, FCC |
Power
Power Rating | 12V DC with Terminal Block 9~36V (Optional) |
Adapter | 12V 50W |
Mechanical
Dimension | 588 x 358 x 55 mm |
Mounting | VESA Mount (100x100mm), Panel Mount |
Enclosure | Metal Housing with Plastic Bezel |
Cooling System | Fanless Design |
Environment
Operating Humidity | 10% to 90% (Non-Condensing) |
Operating Temperature | 0~50°C |
Storage Temperature | -20~60°C |
Shock | MIL-STD-810G Method 516.6 |
Vibration | MIL-STD-810G Method 514.6 |
IP rating | Front IP65 |
Accessory
Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord 3 Pin Terminal Block to DC Jack |
Control
Button | 1 x Power Button (Optional) |
