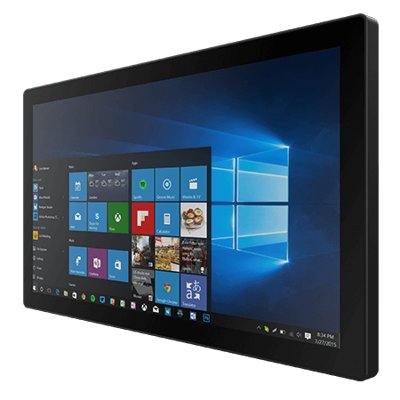

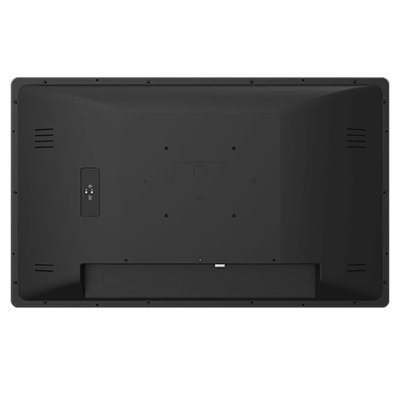

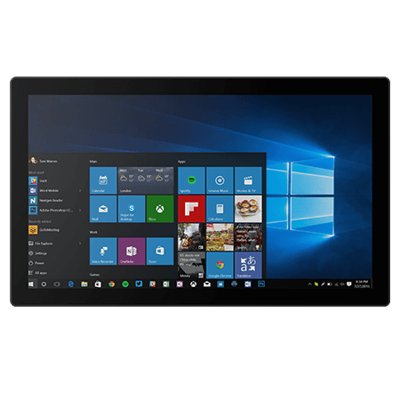

23.8" Intel® Celeron® N6211 PT Series HMI Touch Panel PC
Vlastnosti:
- Low power consumption with Intel® Celeron® Elkhart Lake N6211 processor
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
Display
Resolution | 1920×1080 |
Size | 23.8 inches |
Contrast Ratio | 3000:1 |
Panel Brightness | 250.0 nits |
View Angles | 89,89,89,89 |
Active Area | 527.04×296.46 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Processor | Intel® Celeron® N6211 ( up to 3.0GHz) Intel® Celeron® N6210 (up to 2.6GHz) (Optional) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
Mechanical
Dimension | 588 x 358 x 60 mm |
Mounting | VESA Mount |
Enclosure | Plastic |
Cooling System | Fanless Design |
IO Ports
USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
Serial Port | 1 x RS232(Default)/422/485 |
Video | 1 x HDMI 2.0 (Optional) |
Audio | 2 x Speaker (Optional) |
LAN | 2 x RJ45-10/100/1000 Mbps |
Indicator | Power LED Indicator |
Power
Power Rating | 12V DC |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord |
