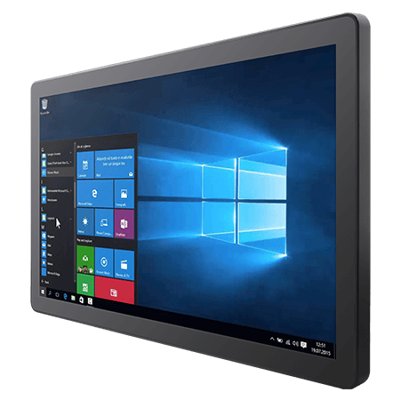

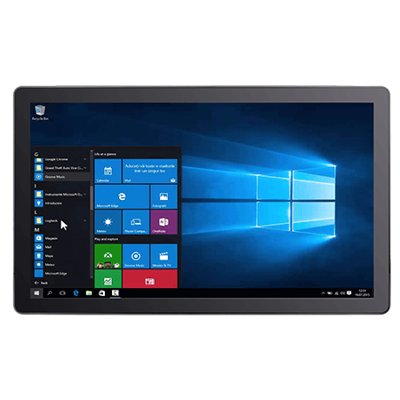

21.5" Intel® Celeron® N6211 G-WIN GC-Series Front IP65 PCAP Panel PC
Vlastnosti:
- 21.5” 1920 x 1080 with P-CAP touchscreen
- Intel® Celeron® Elkhart Lake N6211
- Fanless cooling system and ultra low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface withedge-to-edge design
Display
| Resolution | 1920×1080 |
| Size | 21.5 inches |
| Contrast Ratio | 3000:1 |
| Panel Brightness | 250.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 476.64×268.11 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) Intel® Celeron® N6210 (up to 2.6GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB3.2 Gen2 x 1 (Type-A) |
| Serial Port | 1 x RS232(Default)/422/485 |
| Video | 1 x HDMI 2.0 (Optional) |
| LAN | 2 x Giga LAN RJ45 Connector |
Mechanical
| Dimension | 530.2 x 321.7 x 54.9 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Manual(Hardcopy) AC Adapter Power Cable |
Control
| Button | 1 x Power Button 1 x Reset Button |
Power
| Power Rating | 12V DC in |
