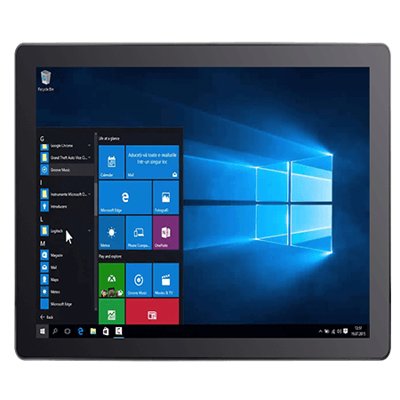

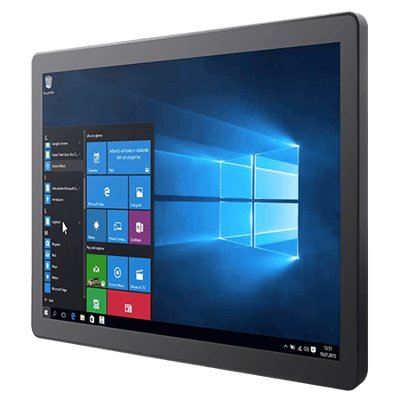

19" Intel® Core™ i3/i5/i7 G-WIN GC Series Front IP65 PCAP Panel PC
Vlastnosti:
- 19” 1280 x 1024 with P-CAP touchscreen
- Intel® 9th Generation Core™ i3/i5/i7 Processor (Coffee Lake Refresh)
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with an edge-to-edge design
- DP Support 4096 x 2304 @ 60 Hz
- HDMI Support 4096 x 2304 @ 24 H
Display
| Resolution | 1280×1024 |
| Size | 19 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 250 nits |
| View Angles | 85,85,80,80 |
| Active Area | 376.32×301.06 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel® Core™ i7-9700TE (12M Cache, up to 3.80 GHz, LGA plugable CPU) Intel® Core™ i5-9500TE (9M Cache, up to 3.60 GHz, LGA plugable CPU) Intel® Core™ i3-9100TE (6M Cache, up to 3.20 GHz, LGA plugable CPU) |
| Chipset | Intel® H310 |
| Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 2400 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional) 2 x SATA III support RAID 0,1 (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 4 x USB3.2 Gen.1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 1 x RS232 (Optional) |
| Video | 1 x DP1.2 1 x HDMI 1.4 (Optional) |
| Audio | 1 x Mic in 1 x Line out 2 x Speaker |
| Expansion Port | 2 x M.2 slot(1 for WiFi, 1 for SSD) 1 x PCIex 16 (Optional) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
Mechanical
| Dimension | 445 x 370 x 62 mm |
| Mounting | VESA Mount (100 x 100mm) (75 x 75mm), Panel Mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fan Design |
Accessory
| Accessory | Quick Start Guide(Hardcopy) Driver CD & User Manual AC Adapter Power Cable |
Control
| Button | 1 x Power Button 1 x Reset Button |
Power
| Power Rating | 12V DC input |
