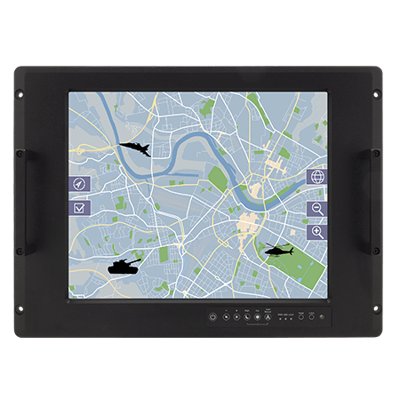

17" Intel® Core™i5-1135G7 Defence Console Rack Panel PC
Vlastnosti:
- 17” SXGA TFT LCD
- Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2GHz) Processor
- Anti-Corrosion Housing / Fanless
- Compliant with MIL-STD-810G/F , MIL-STD-461E/F
- Flush Rack / Rack Mount Mechanical Design (8U)
- Convenient On-Screen Display Controls
- AC 110~240 V Power input default
- Isolation DC 9~36 V Power input (Optional)
- Built-in Light Sensor for auto brightness control
- Defence Grade Power Connector (MIL-DTL-38999/1)
Display
Resolution | 1280×1024 |
Size | 17 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 350 nits |
View Angles | 85,85,80,80 |
Active Area | 337.920×270.336 mm |
Touch / Glass | AR Protection Glass 5 Wires Resistive Touch (Optional) 5 Wire Resistive with EMI Mesh Filter (Optional) EMI Glass (Optional) |
System Specification
Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
Storage | 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB(for NVMe) (Optional) 2TB(for NVMe) (Optional) 4TB(for NVMe) (Optional) 1 x SATA III , up to 2TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
Operating Humidity | 10% to 95% RH |
Operating Temperature | -20°C~60°C |
Storage Temperature | -30°C~70°C |
Compliance
MIL-STD 461E/F | RE101 / RE102 CE101 / CE102 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
MIL-STD 810F/G | Vibration Method 514.5 Humidity Method 507.4 Transit Drop Method516.5 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 2 x USB 3.0 |
Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 (Optional) |
Video | 1 x HDMI (Optional) |
LAN | 2 x RJ45 |
Mechanical
Dimension | 482 x 354 x 80 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Accessory
Accessory | User Manual (Hardcopy) CD-ROM with Driver Utility Power Cord MIL-DTL-38999/1 |
Power
Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
Control
Button | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
