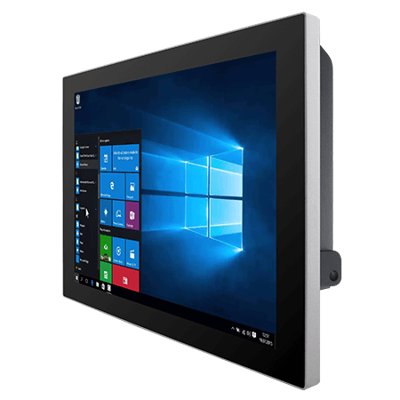

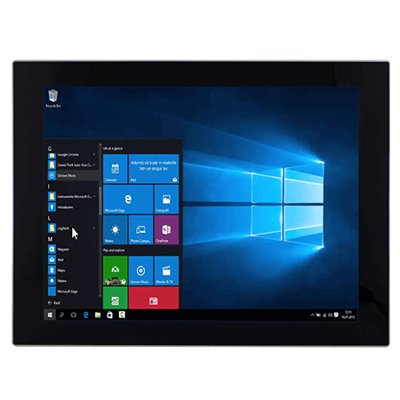

15" Intel® Core™ i5-1135G7 Standalone Panel PC HMI
Vlastnosti:
- 15” 1024 x 768 with P-CAP touchscreen
- High computing performance with Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2GHz) processor
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/O, including 2 x LAN, 1 x COM, 2 x USB 3.0, 1 x HDMI
Display
Touch / Glass | Projected Capacitive Multi Touch Screen Anti-glare Coating (Optional) |
Resolution | 1024×768 |
Size | 15 inches |
Contrast Ratio | 2000:1 |
Panel Brightness | 300 nits 1000 nits(Optional) |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
System Specification
Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
Storage | 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB(for NVMe) (Optional) 2TB(for NVMe) (Optional) 4TB(for NVMe) (Optional) 1 x SATA III , up to 2TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
Operating Humidity | 10% to 90% (Non-Condensing) |
Operating Temperature | 0~50°C |
Storage Temperature | -20°C~60°C |
Shock | MIL-STD-810G Method 516.6 |
Vibration | MIL-STD-810G Method 514.6 |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 2 x USB 3.0 |
Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 (Optional) |
Video | 1 x HDMI (Optional) |
Audio | 2 x Speaker |
LAN | 2 x RJ45 |
Mechanical
Dimension | 363.4 x 277.9 x 45.2 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Aluminum |
Cooling System | Fanless Design |
Accessory
Accessory | Quick Start Guide(Hardcopy) Driver CD & User Manual AC Adapter Power Cable |
Power
Power Rating | 12V DC input 9~36V DC input (Optional) |
Control
Button | 1 x Power Button 1 x Reset Button |
