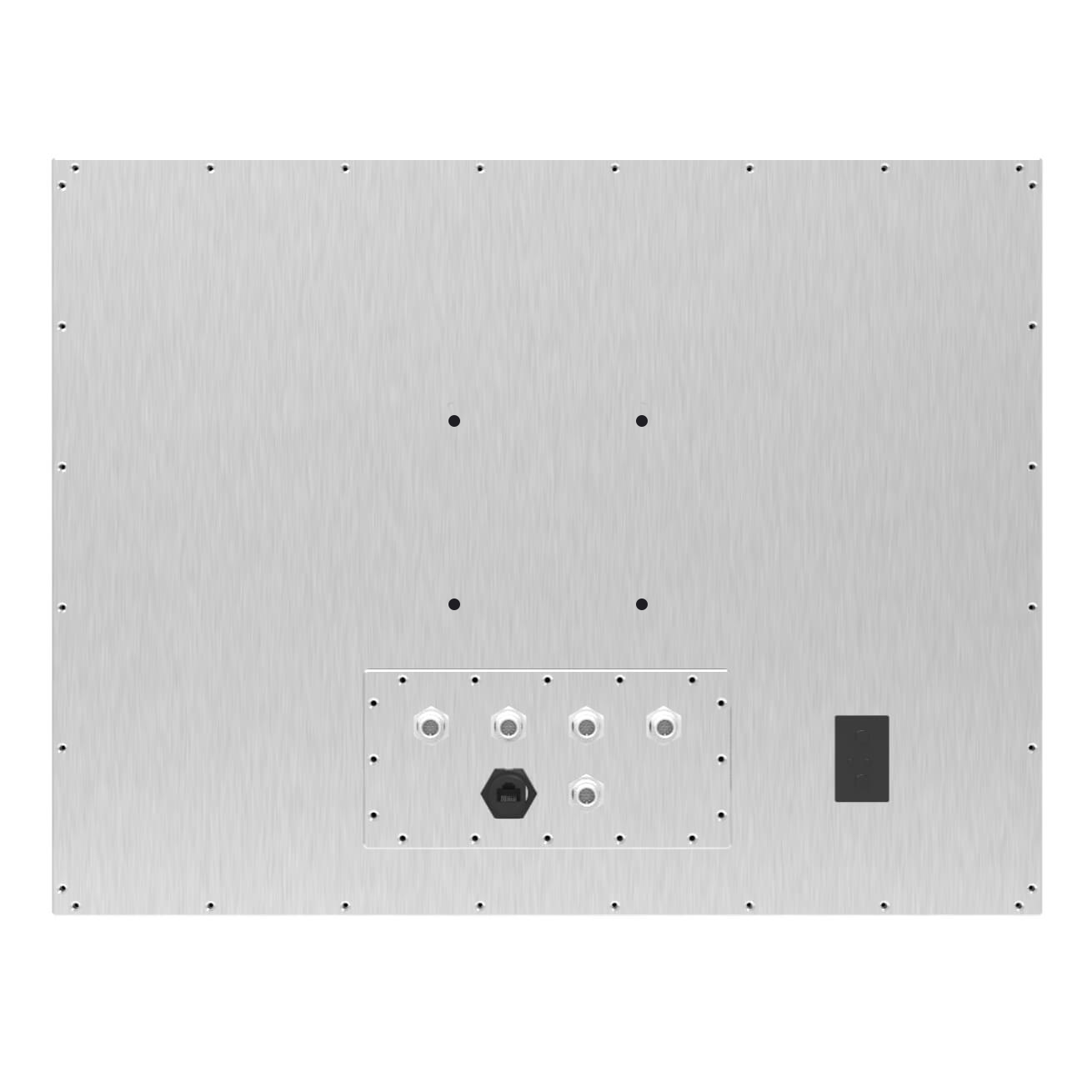

R15IB3S-SPC3-B

15″ nerezový terminál, Intel Celeron N2930, 4GB RAM, 64GB SSD, IP65, Windows 10 IoT, Integrovaná tlačítka pro ovládání strojů

Pro zobrazení cen se prosím přihlaste.

Porovnat
Číslo zboží: GW51300220 Produktové číslo: R15IB3S-SPC3-BKategorie: , Výrobce: Winmate
Poptat produkt

15 Stainless B Series Panel PC


Features

  • Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz)
  • Fanless cooling system
  • SUS 316/ AISI 316 stainless steel for food and chemical industries
  • Full IP65 waterproof enclosure, good corrosion resistance
  • A true flat, easy-to-clean front surface with edge-to-edge design
  • Supports VESA mount
  • Rotary switch adjust different touch mode for Hand/Rain/Glove application
  • Emergency and Flat buttons for automation device control

  • LCD PaneláSpecification

    Size15″
    Contrast Ratio2000 : 1 (typ.)
    Panel Brightness250 cd/m2 (typ.)
    Viewing Angle-88~88(H);-88~88(V)
    RecommendáResolution1024 x 768
    Touch ScreenPCAP touchscreen
    Maximum Colors16.7M

    SystemáSpecification

    ProcessorIntel® Celeron Bay Trail-M N2930(2M Cache, up to 2.16 GHz)
    ChipsetIntel® SoC Integrated
    Memory1 x SODIMM, Max 8GB DDR3 1600 MHz, default 4GB
    BIOSAMI BIOS
    EthernetIntel® Ethernet Controller I210-AT
    AudioRealtek HD codec
    ExpansionáSlots1 x mPCIe slot(for half size Wifi module)
    OSWindows 10 IoT Enterprise

    I/O Connectors

    DC-Input1 x M12 waterproof connector for 12V DC
    USB Port1 x M12 waterproof connector for 2 x USB2.0
    1 x Front waterproof connector for USB2.0 type-A
    Ethernet1 x waterproof Giga LAN RJ45 connector
    COM Port1 x M12 waterproof connector for RS232

    Mechanical and Environment

    Operating Temperature0~45C
    Storage Temperature-20~60C
    Operating Humidity10% to 90% (non-condensing)
    MountingVESA Mount
    Dimension (W x H x D)426 x 301 x 69 mm
    IP ProofIP65

    Power

    Power InputDefault 12V DC input
    9~36V DC input for optional
    Power Adapter100~240V AC to DC Adapter with waterproof connector

    Peripheral

    LED Indicator1 x LED Indicator for power
    1 x LED Indicator for storage
    ButtonsRear side:
    1 x Power Button
    1 x Reset Button
    Front side:
    1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector
    1 x Rotary Switch for touch mode

    Standard and Certification

    CertificationCE, FCC

    Výrobce

    Winmate

    Procesor

    Celeron

    Rozlišení

    1024 x 768

    Úhlopříčka

    15"

    Dotyková technologie

    Kapacitní

    Nerezové provedení

    Ano

    Stupeň krytí

    IP65

    Datasheet

    Stáhnout datasheet:
